This is an initial test build published to solicit feedback for improvement.

Design Concept:

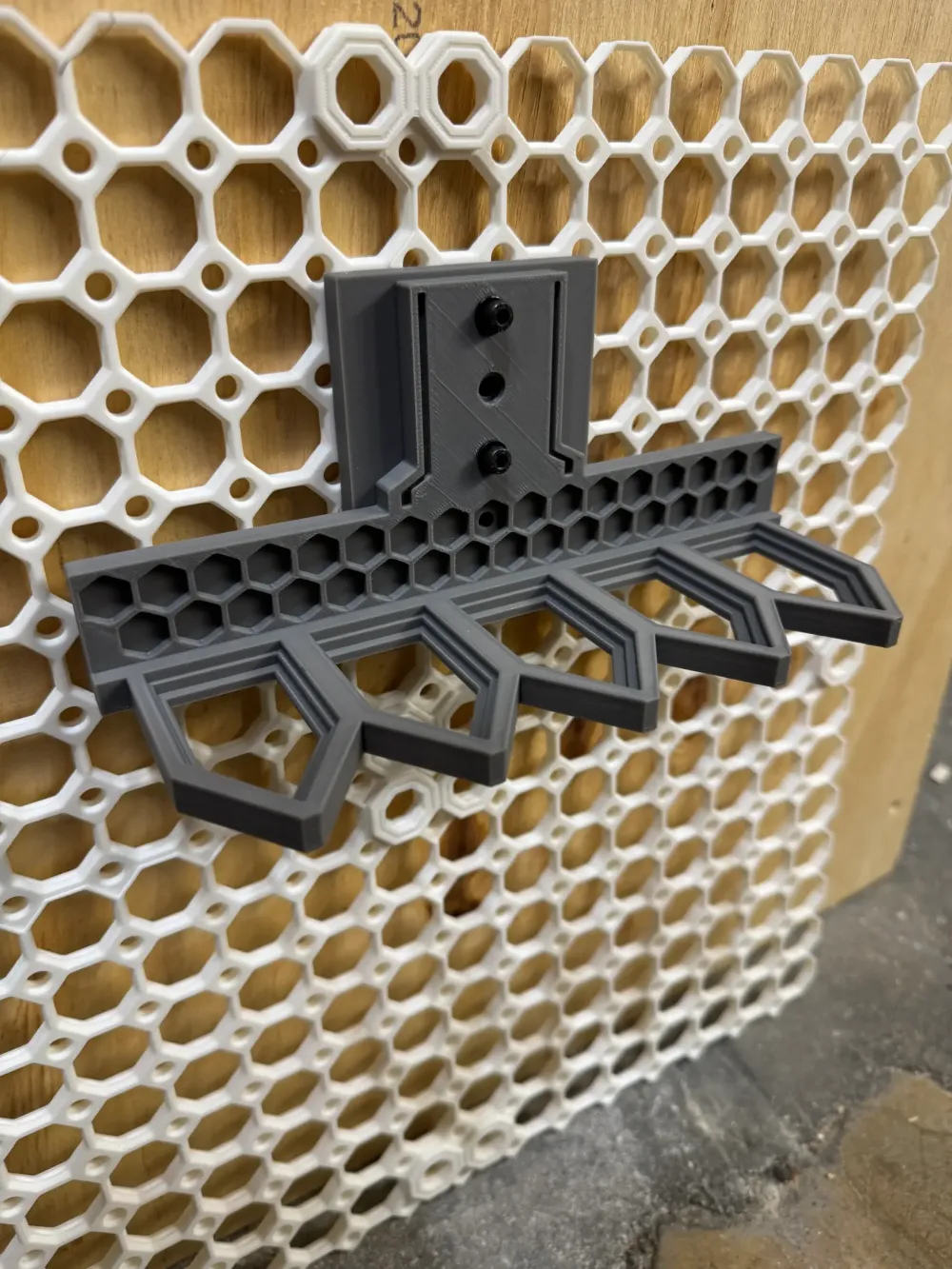

A series of tool and accessory holders that can be attached to modular mount plates for various brands track / wall systems, or mounted directly to the wall.

Printing Instructions:

The minimum tested infill for most parts was 10% grid pattern with 3 wall loops using PLA+ filament. 15-20% infill is recommended for better durability, or performing selective reinforcement of key areas (hooks, fingers, etc.) during slicing.

Assembly:

The series is designed to use M4 screws and nuts, with a M4x16mm screw, washer, and nut being optimal for most of the modules in the series.

Source:

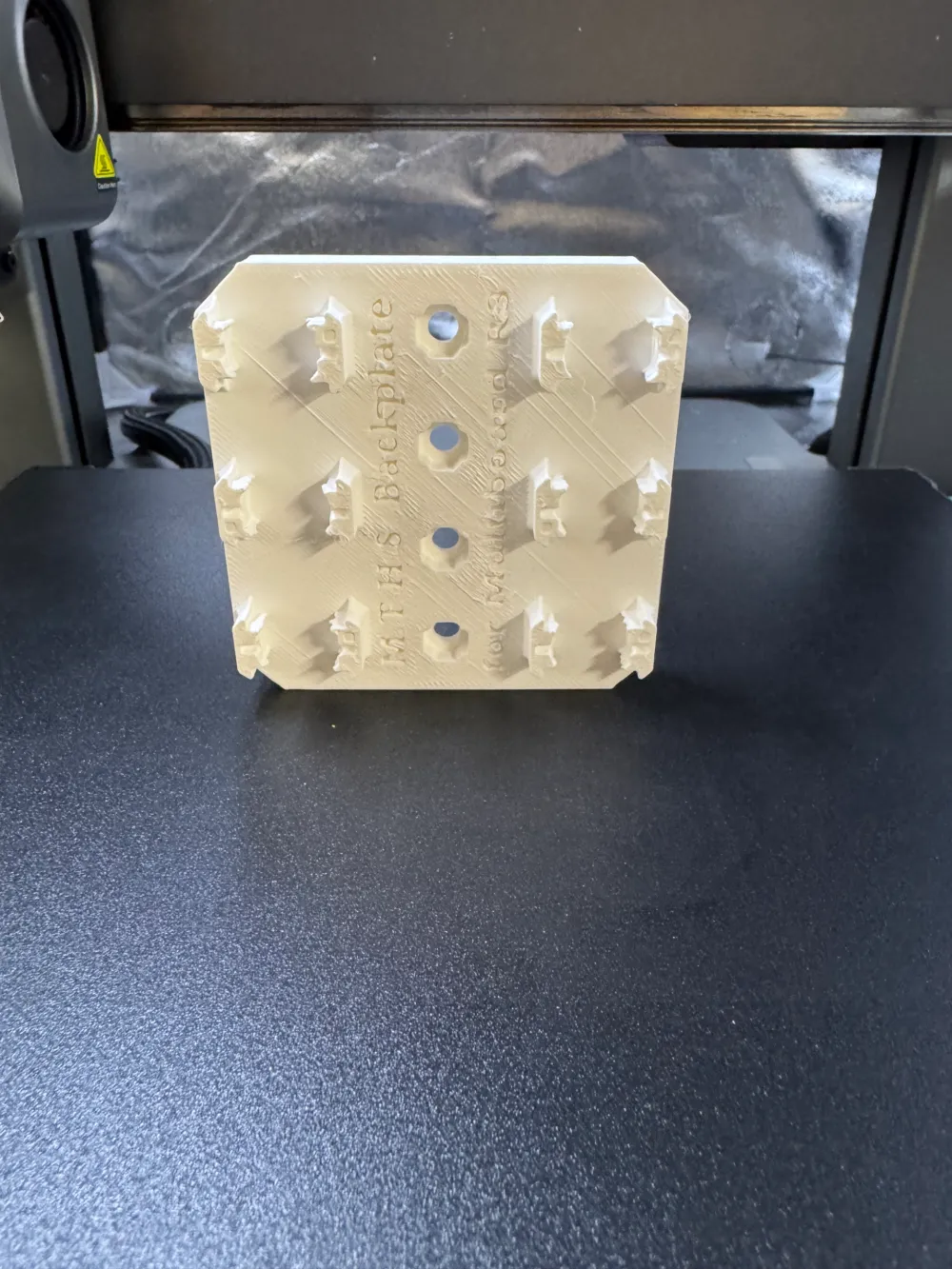

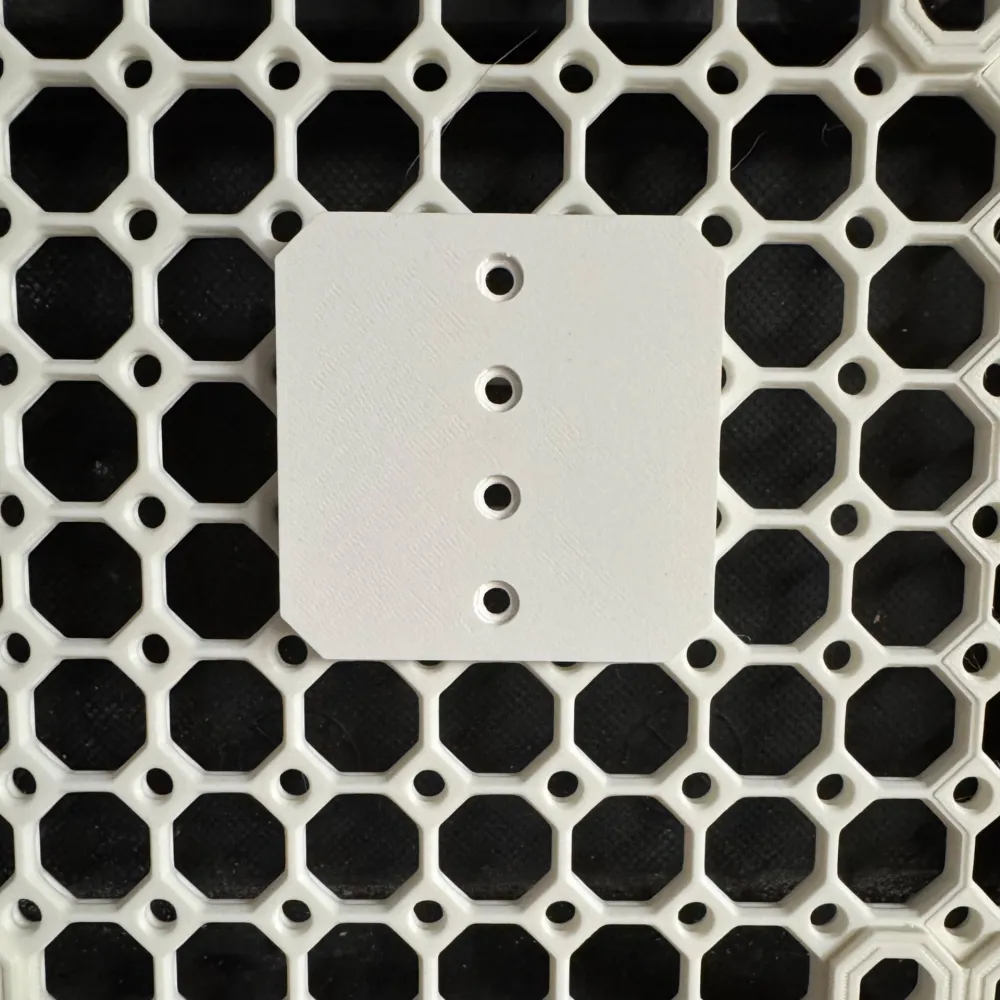

This backplate attachment is based on the basic three snap design from Multiboard.io

Revision History:

Revision 1 - Prototype

Revision 2 - Beta Testing

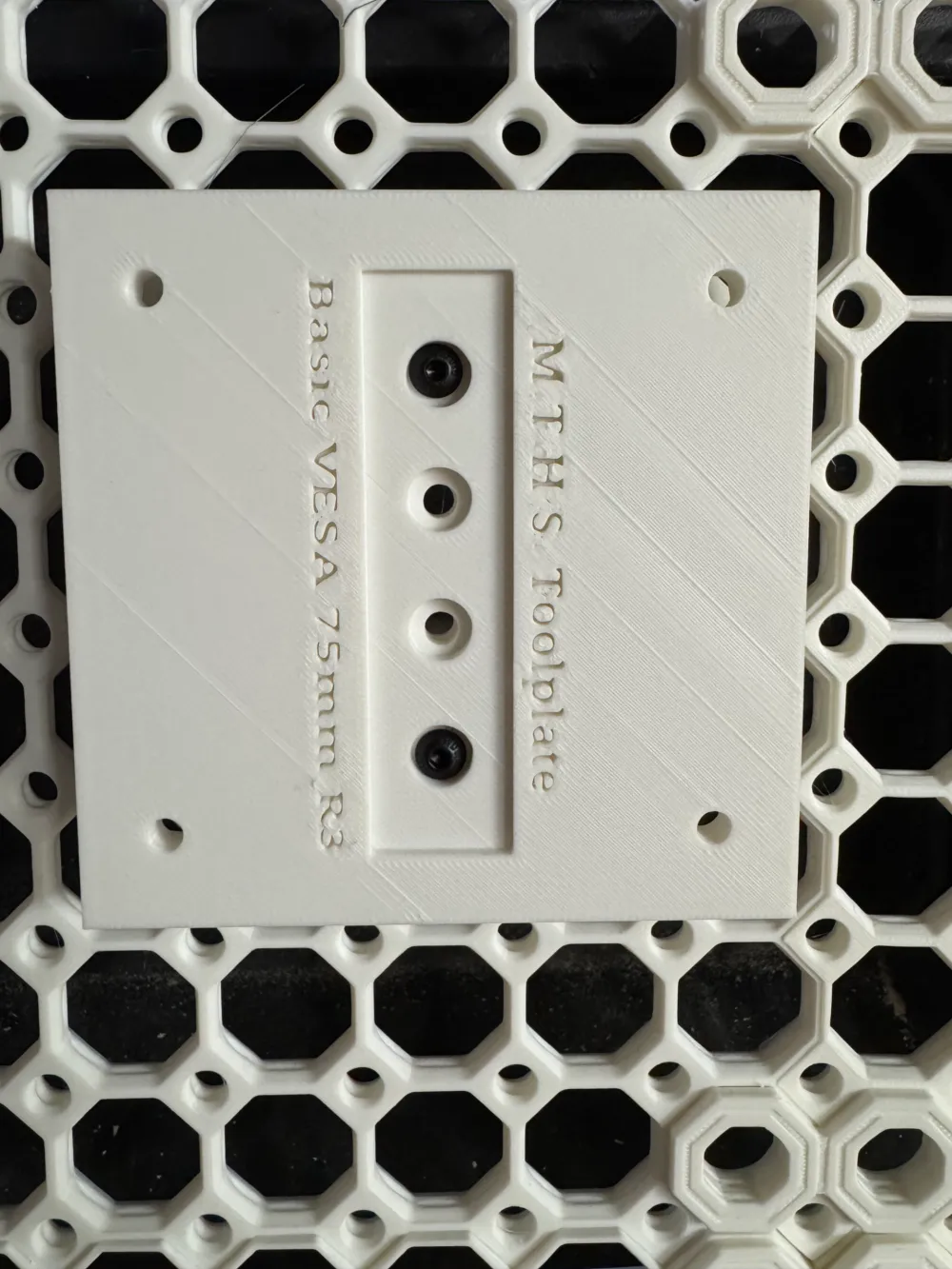

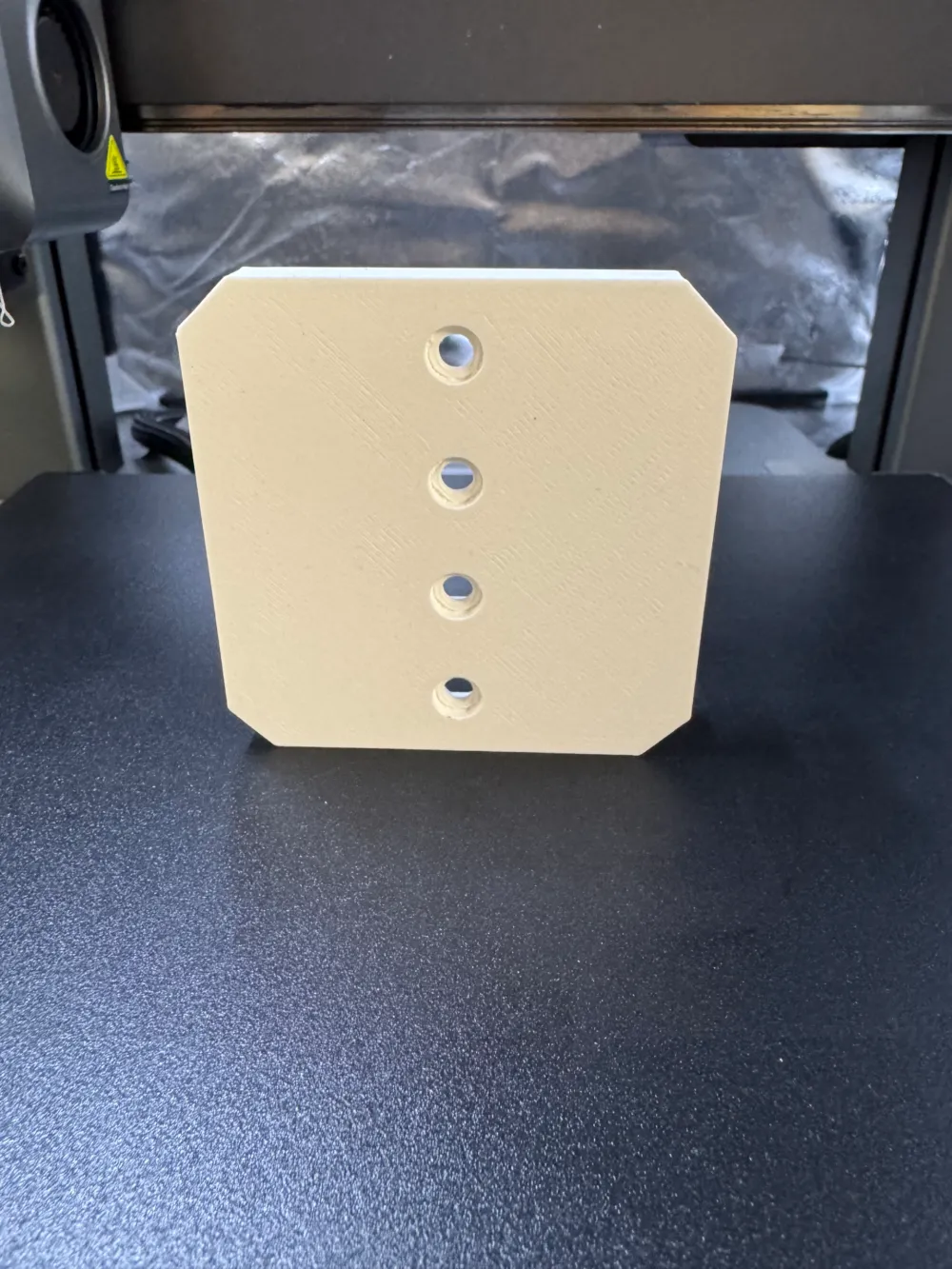

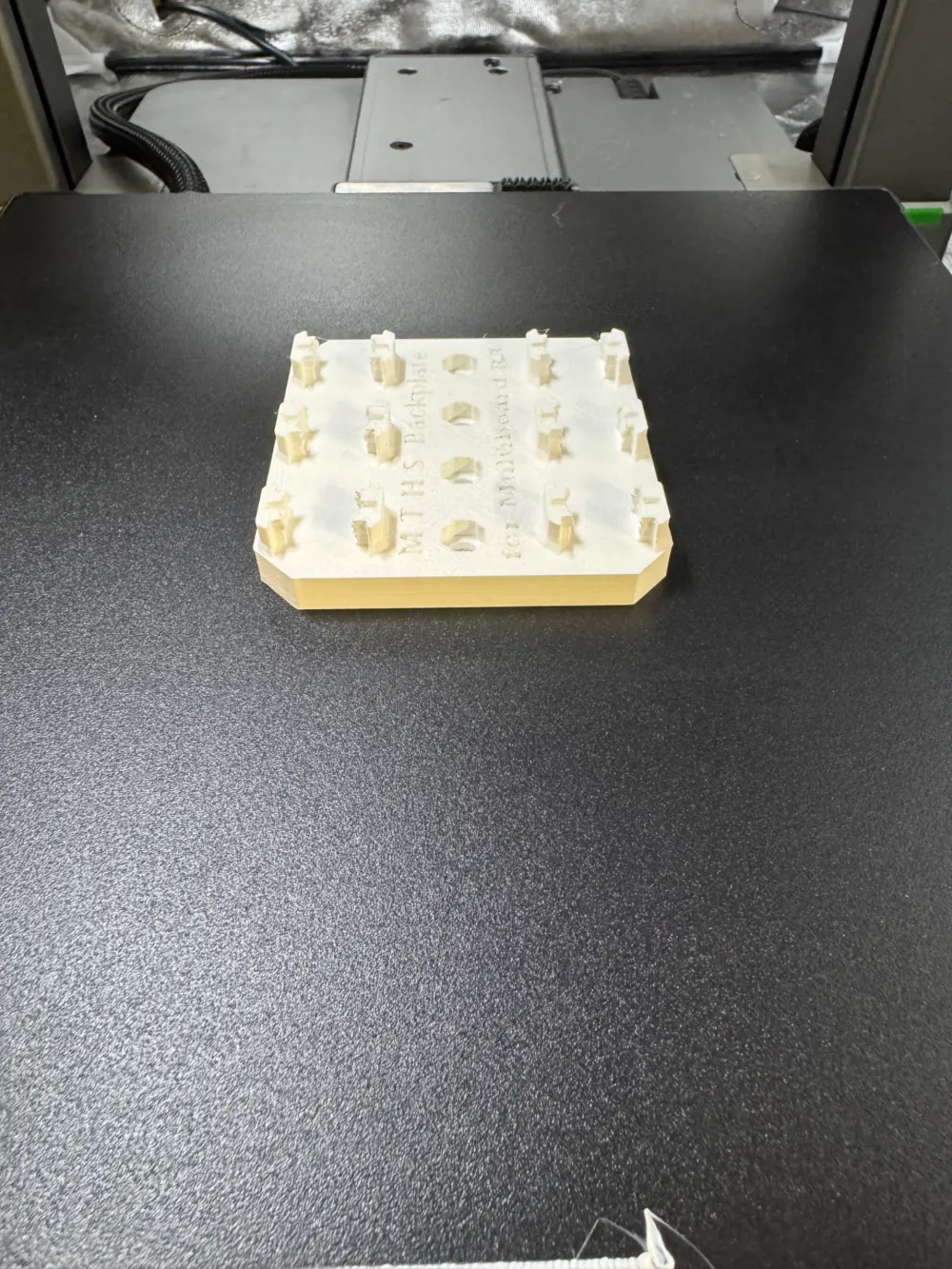

Revision 3 - Added labeling to model(s) to be able to distinguish the different revisions. Fixed some minor alignment issues with screw holes. Trimmed the corners to not block the basic VESA 75mm plate monitor attachment points, and angled them to better match the ascetics of the Multiboard.

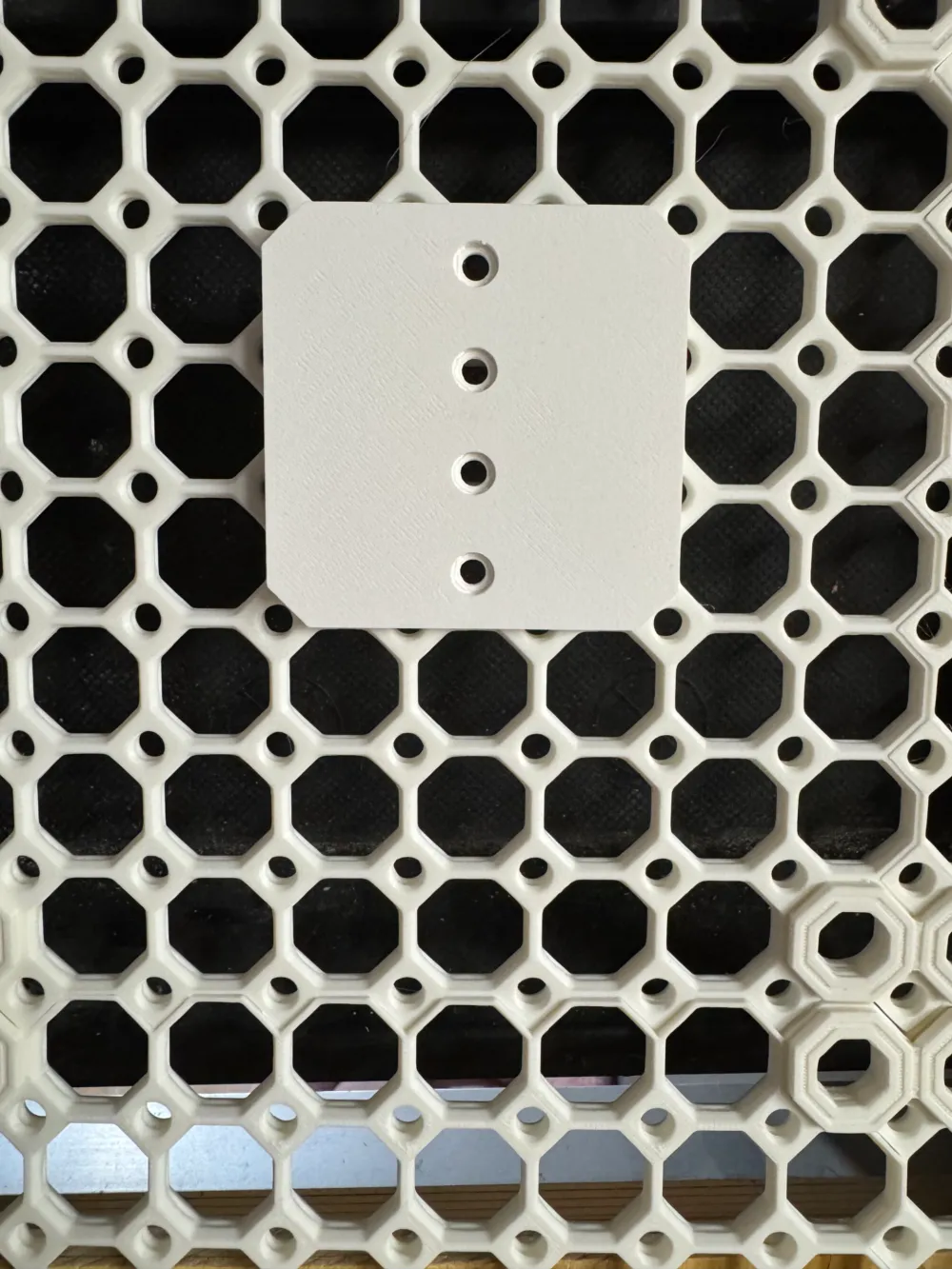

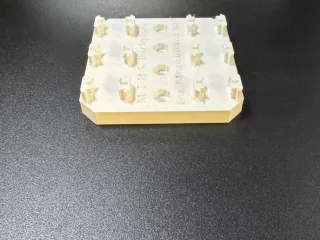

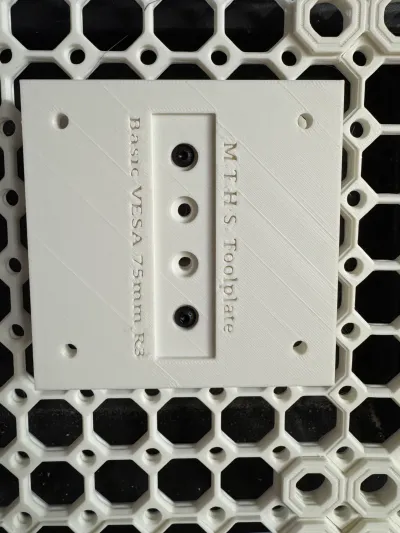

Base plate for Multiboard for modular tool holder system

0.2mm layer, 3 walls, 15% infill
