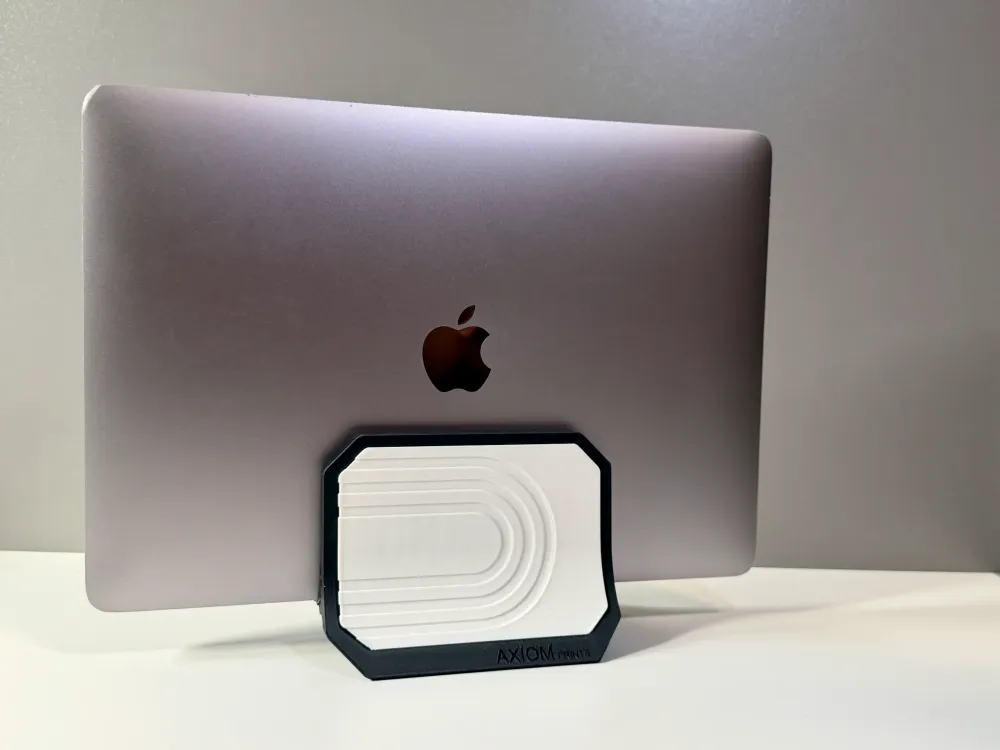

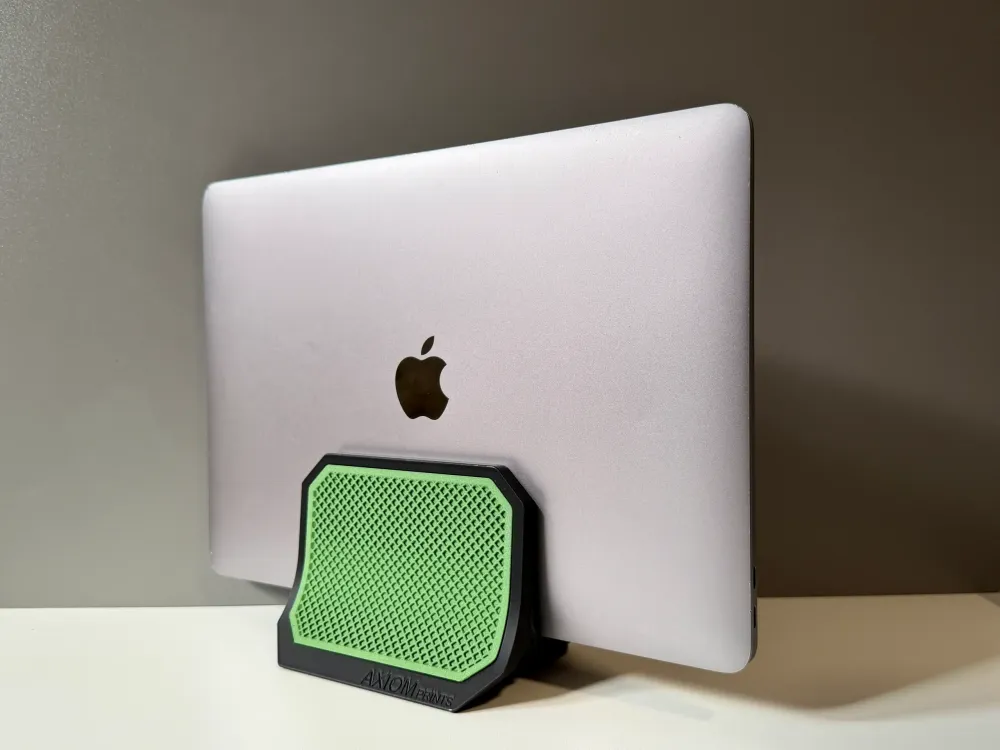

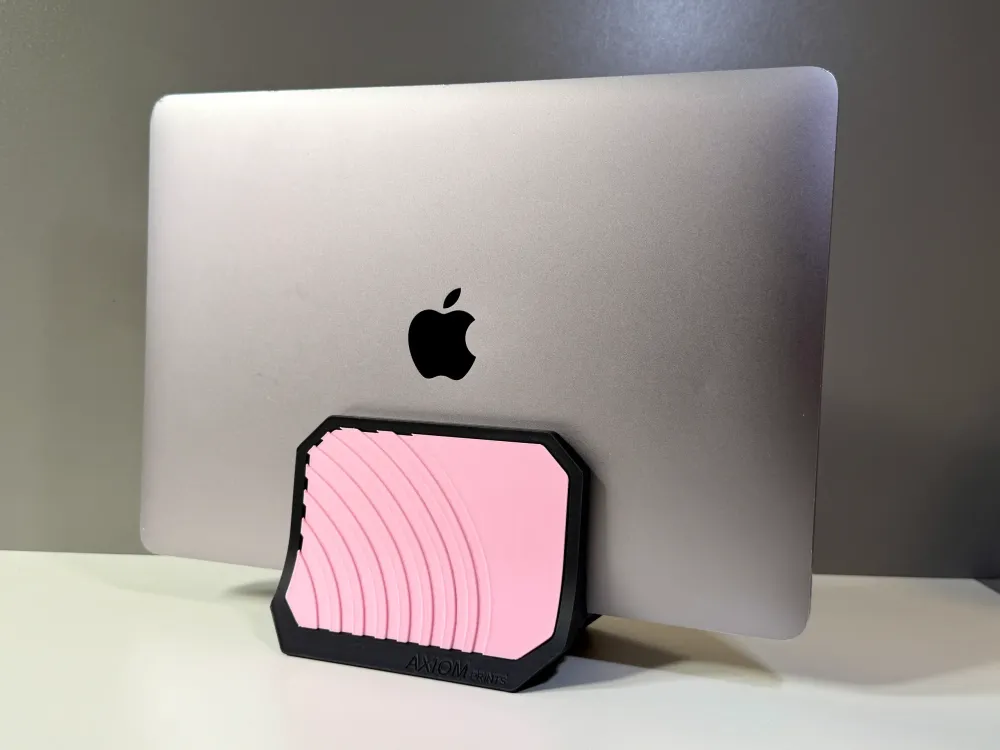

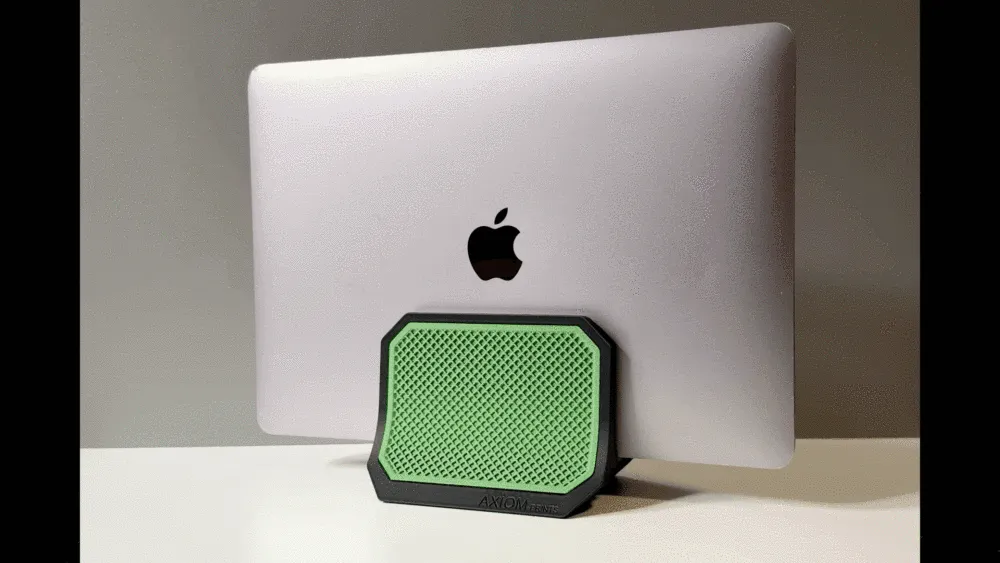

Vertical Laptop Stand – Auto-Clamp System + 6 Decorative Panels + Organizer Module

This is a universal 3D-printable vertical laptop stand featuring an automatic TPU clamping mechanism, optional TPU contact pads, interchangeable decorative panels, and a magnet-based attachment system.

Designed to save desk space, improve ergonomics, and offer full customization.

🎯 Key Features

✔ Automatic Clamping (TPU Core)

The flexible TPU insert compresses under the laptop’s weight, providing:

soft, scratch-free clamping

compatibility with many laptop thicknesses

stable vertical positioning

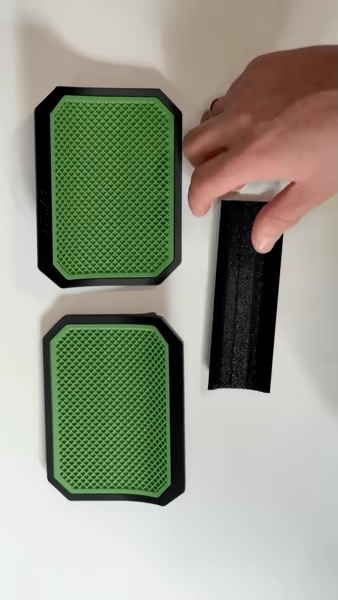

✔ 2 TPU Inserts for Laptop Thickness

Included are two versions of the clamping module:

1️⃣ Slim (≤22 mm) – for ultrabooks / MacBooks

2️⃣ Wide (≤35 mm) – for thicker or gaming laptops

✔ Optional TPU Pads on the Main Frame

To prevent your laptop from touching hard plastic, the model includes additional TPU pads for the inner walls.

printed separately

can be glued in (optional)

provide softer contact and extra grip

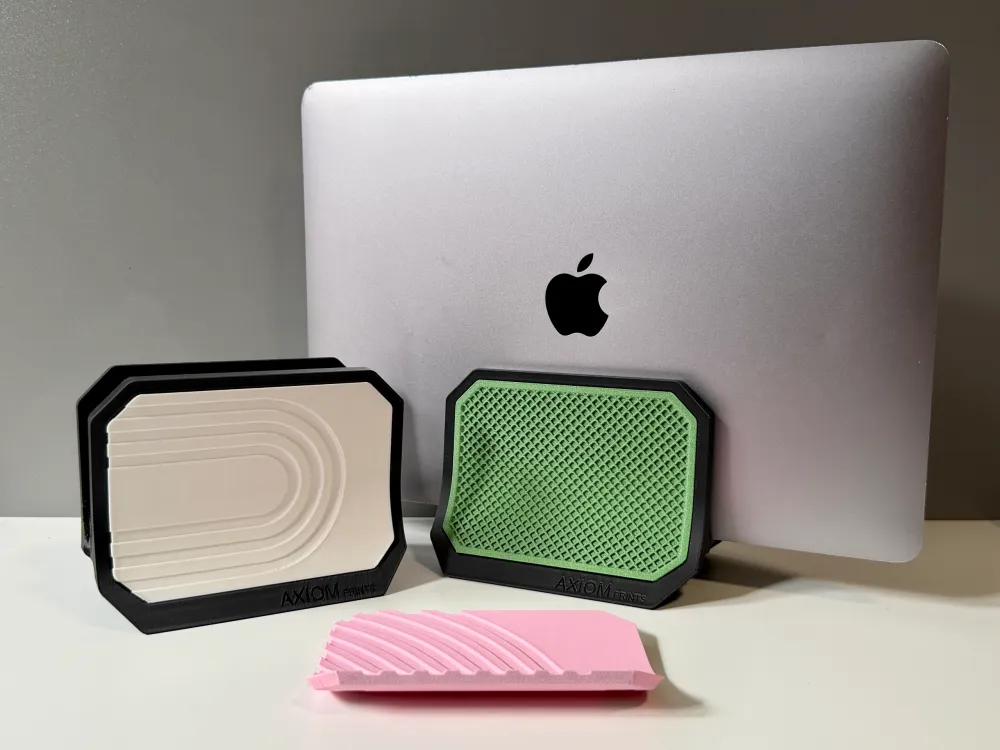

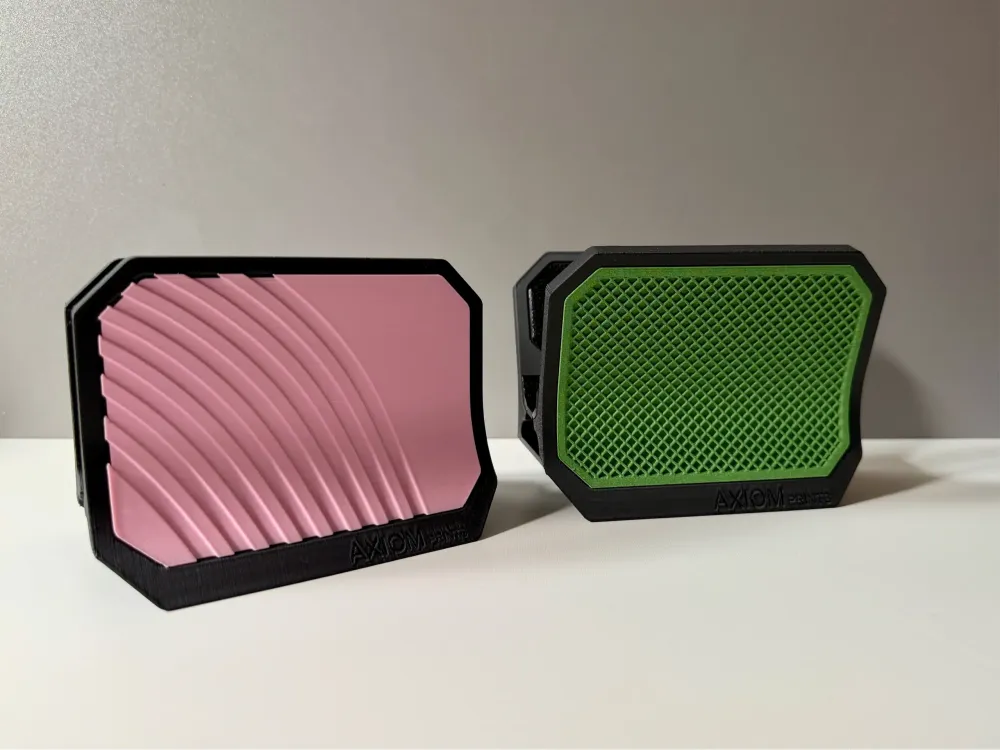

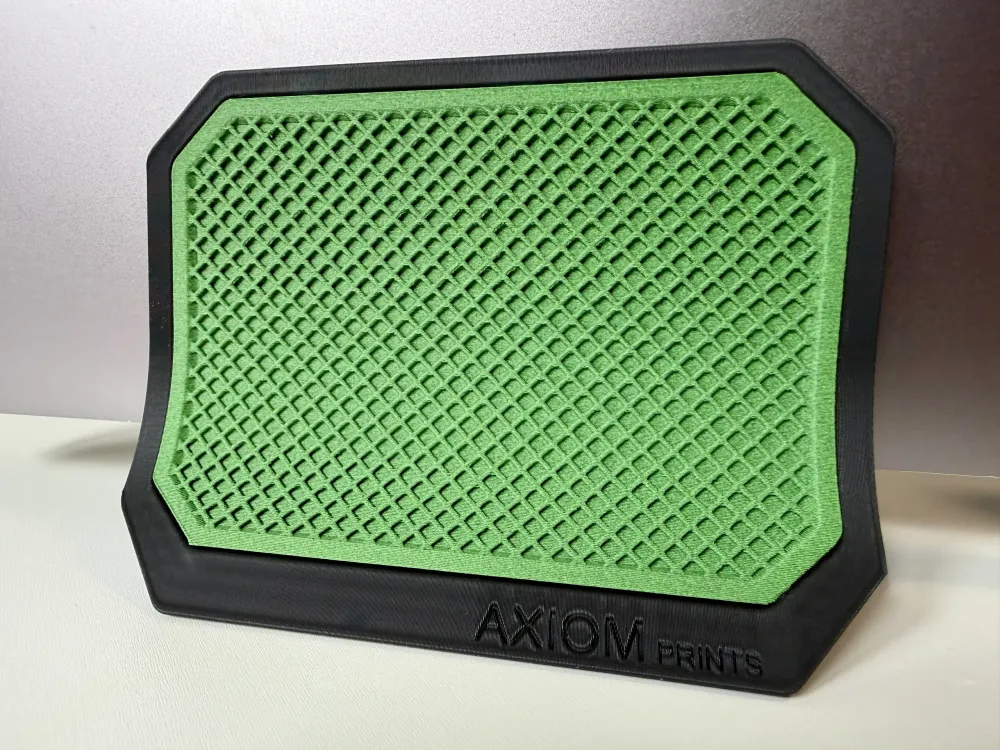

✔ 6 Interchangeable Decorative Panels

Six unique front panel designs that can be swapped instantly using a magnet-based mounting system.

✔ Organizer Panel

A functional front module perfect for:

pens

small tools

accessories

USB drives

works as a phone stand

✔ Magnet-Compatible Mounting System

The interchangeable panels attach using magnets.

You will need round magnets 1.50–1.75 mm thick and 10 mm in diameter for assembly.

✔ Non-Modular Version Included

A solid, clean one-piece version without interchangeable panels is also provided for users who prefer a fixed design.

📐 Compatibility

Fits laptops from slim ultrabooks up to 35 mm

Stable, wide base

Fully 3D-printed modular design

🖨️ Printing Recommendations

Main Frame

Material: PLA / PETG / ABS

Infill: 15% (sufficient for strength)

Supports: Not required

TPU Inserts (2 clamping modules)

Material: TPU 95A

Speed: 20–35 mm/s

Infill: 10–20%

Optional TPU Side Pads

Material: TPU 95A

Thin flexible pads – glue into the slots if desired

No supports

Decorative Panels + Organizer

Material: PLA

Infill: 10–20%

Supports: Not required

📦 Included Files

Main frame

2 TPU clamping inserts: Slim (≤22 mm) & Wide (≤35 mm)

TPU side pads (optional, glue-in)

6 decorative panels

Organizer panel

Compact one-piece front panel

Non-modular solid version (no panel swapping)

Magnet-ready mounting system

AXIOM logo only (no text)

ℹ️ Additional Notes

The model includes only the AXIOM logo — no “AXIOM Prints” text.

TPU side pads are optional but recommended for softer contact.

Magnets are required for attaching the front panels.

🔧 Assembly

Insert the Slim or Wide TPU clamping module

(Optional) Glue TPU side pads into the frame

Insert magnets into the panel mounts

Attach any decorative or organizer panel

Ready to use

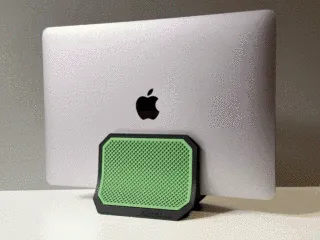

FlexGrip Modular Laptop Stand
