My remix pool skimmer adapter for pool bottom vacuum cleaner hose. Reducing the diameter of 32mm to a cone with the smallest diameter of 25mm.

I designed the model based on the original parts from the pool that I wanted to “assemble”.

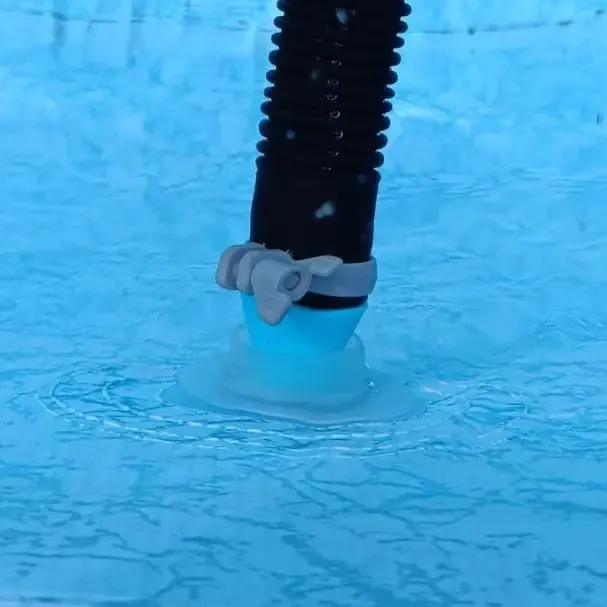

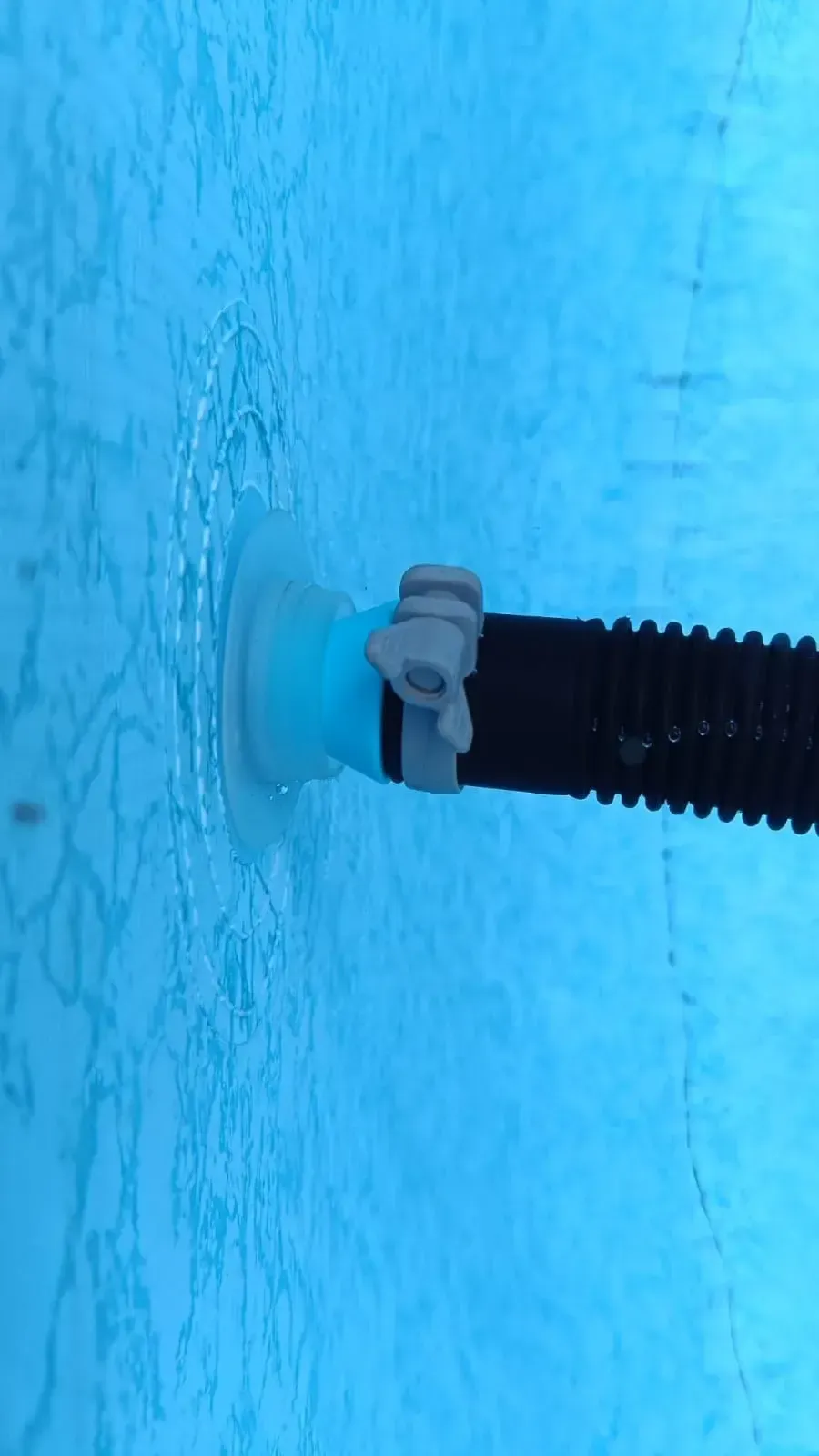

This adapter is inserted into the hose port of the pool, then the vacuum cleaner hose simply slides onto it.

Making PETG

nozzle 0.4

layer 0.2

infill 100%,concentric

Print cooling off

Print as the model is oriented in the *.stl file.

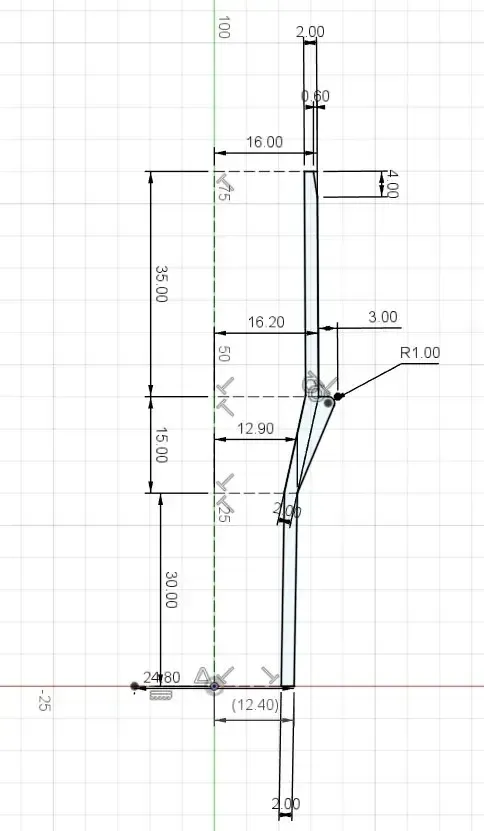

In the dimensional drawing I have given the radii and lengths of each segment of the adapter. The wall thickness is 2mm.

-----------------------------------------------------------------------------------------------------

If you want the dimensions of the print to match the design - I recommend calibrating the print profile with OrcaSlicer/BambuStudio. I recommend calibration using my remix based on @SteveHanov's advice, recommend link:

https://**********.com/en/models/1291942-calibration-orcaslicer-*****studio-print-profile

CONCLUSION

💚💚💚If you enjoyed the project please like it.💚💚💚

Post your makes and let me know how it works out for you.

If anyone has any comments about them - I'd be happy to listen and improve the models.

Pool vacuum adapter

0.2mm layer, 6 walls, 20% infill
