Design Concept

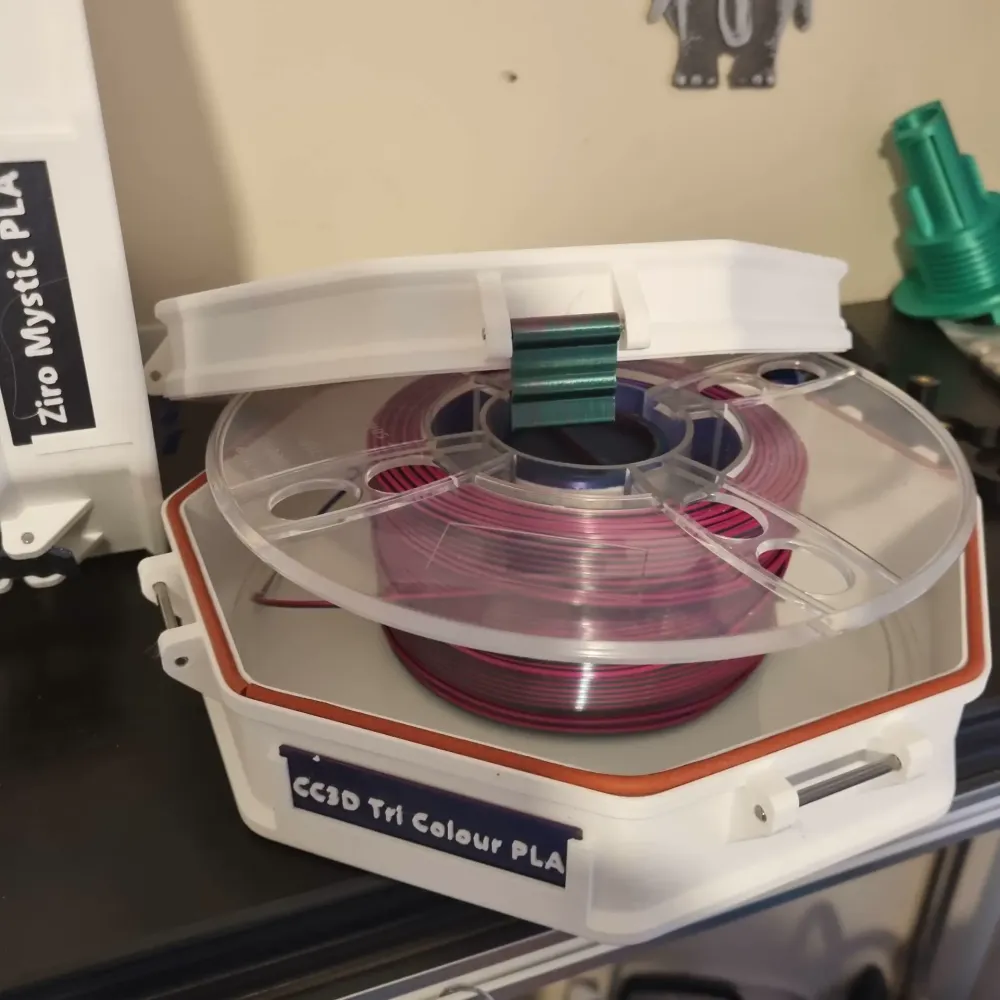

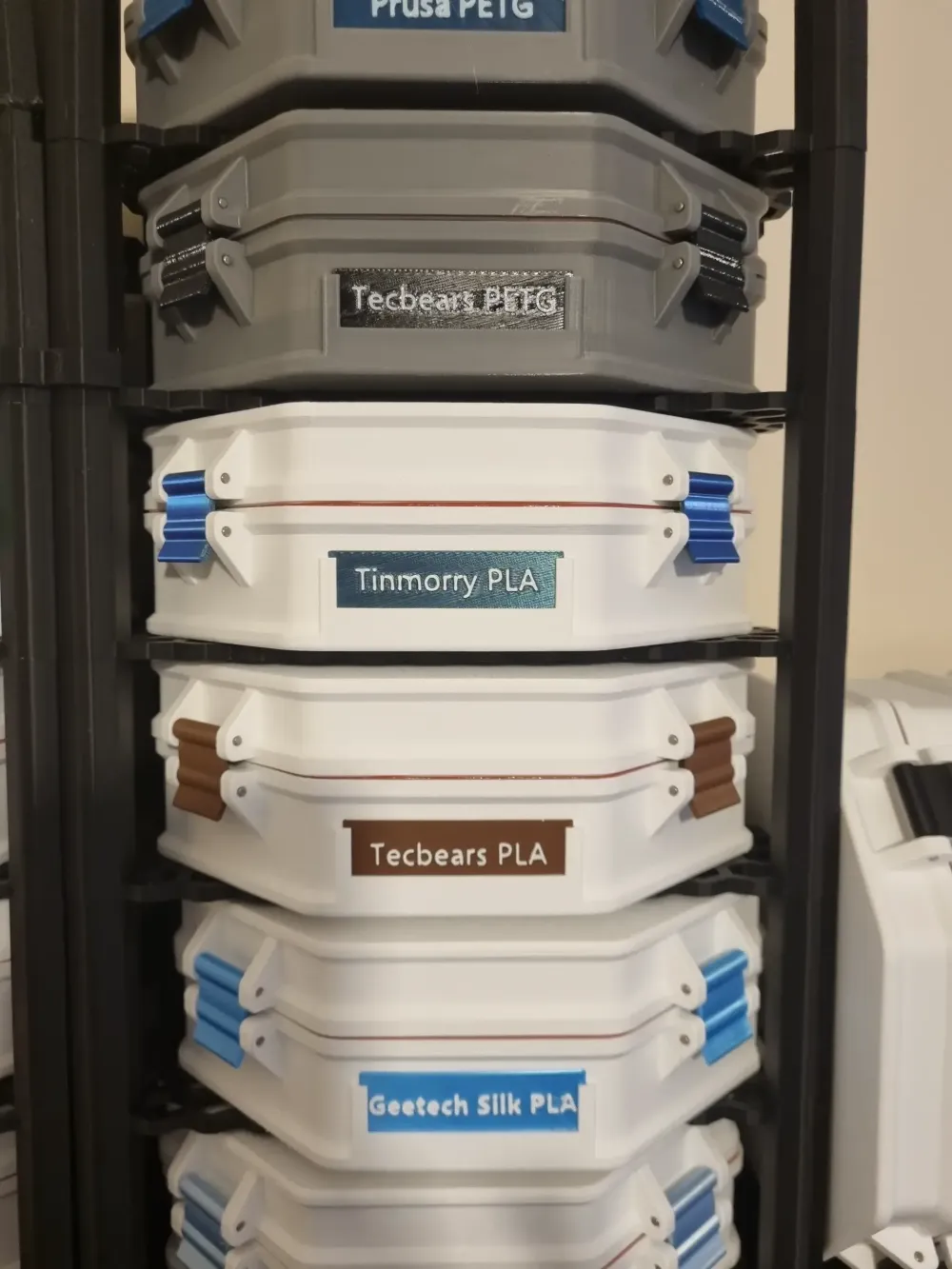

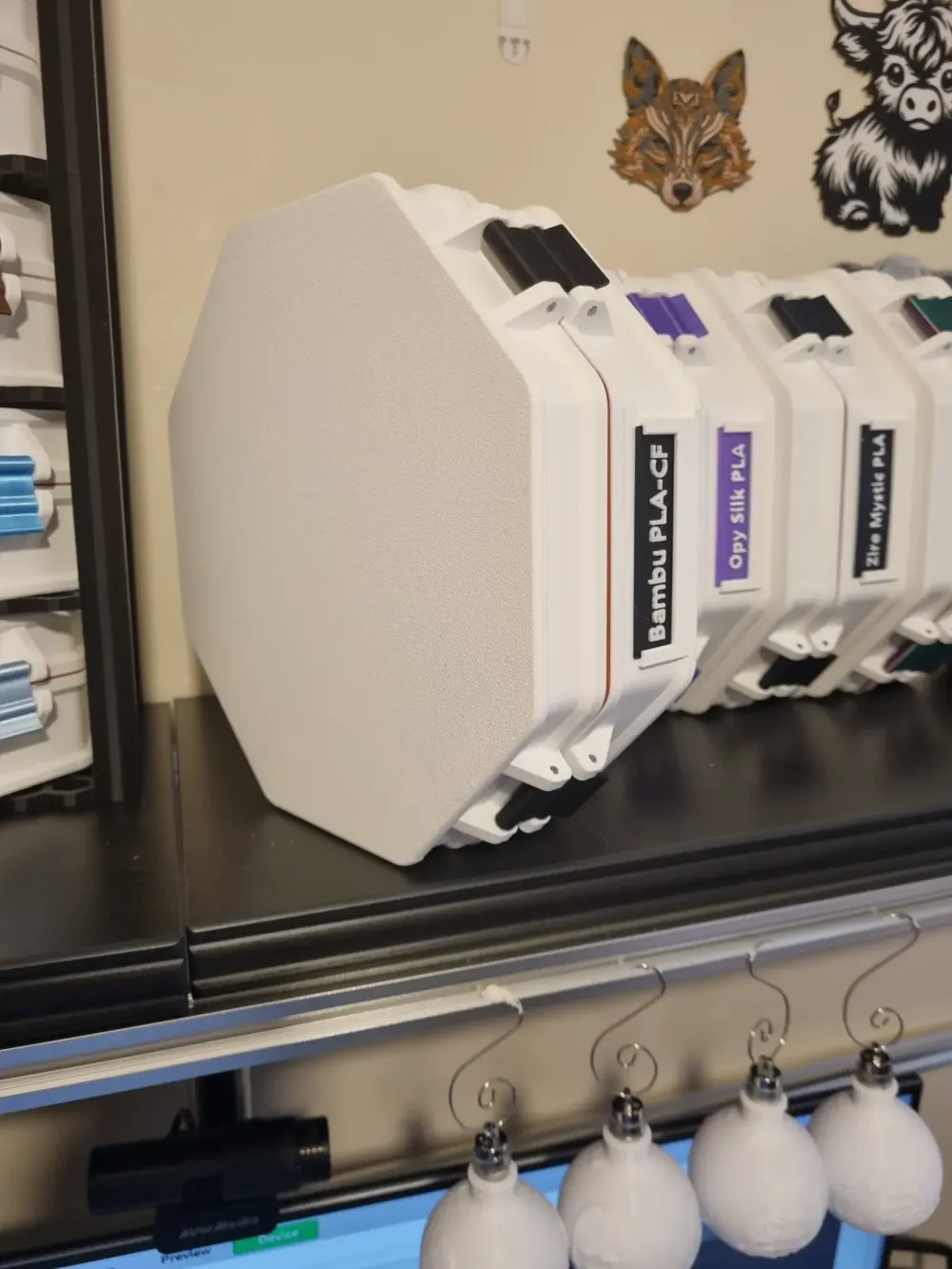

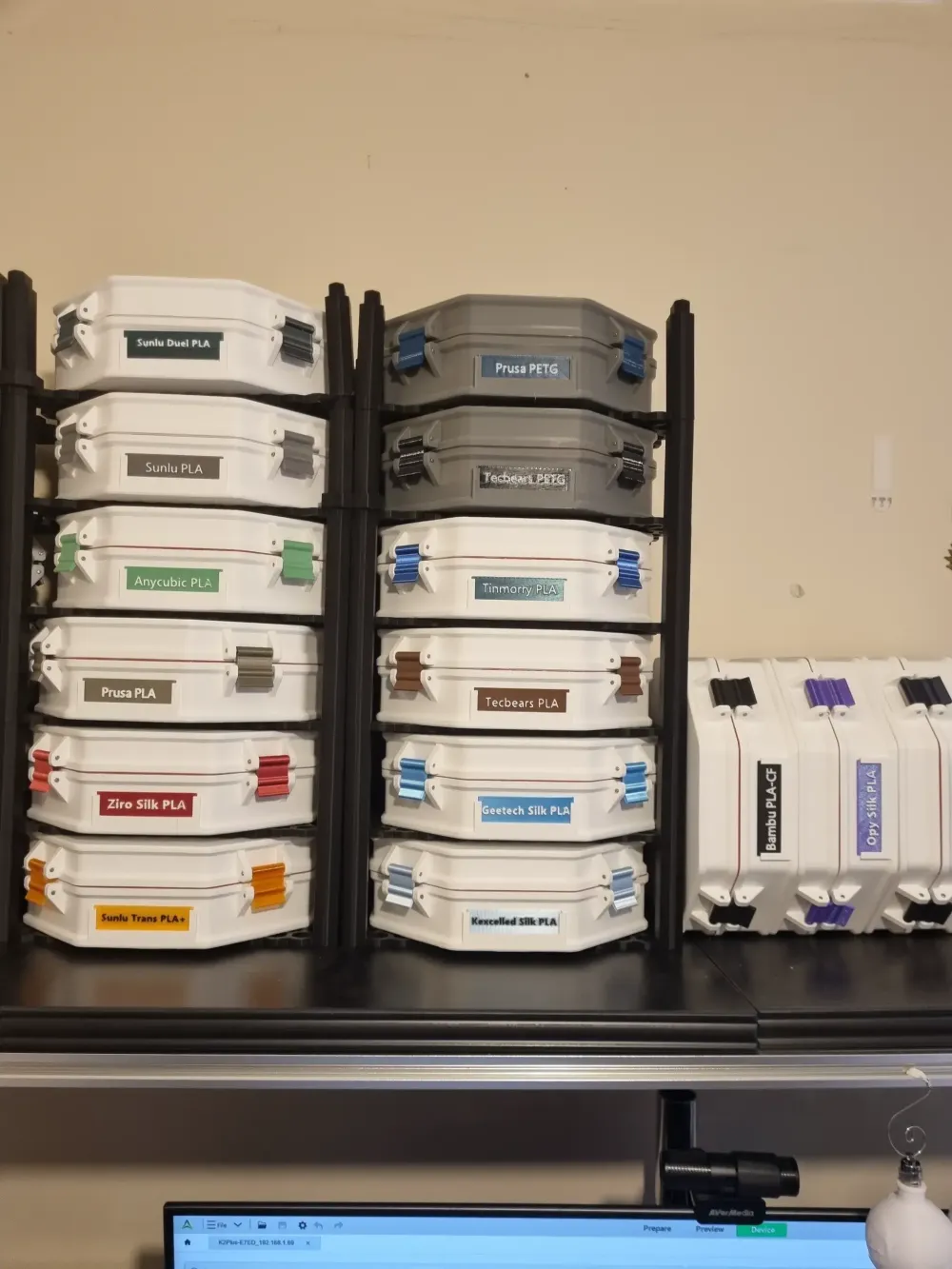

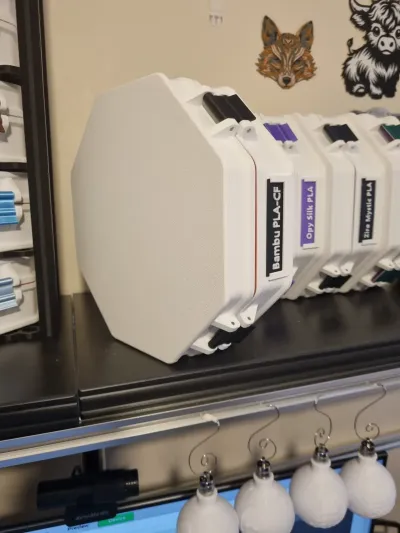

The Hexagonal Filament Storage Case is designed for optimal space utilization and protection of your 3D printer filament spools. Its unique hexagonal shape allows for compact stacking and easy organization.

Purpose

This storage case is perfect for keeping filament dry, dust-free, and easily accessible. It is ideal for hobbyists and professionals who need an efficient way to manage multiple filament types.

Printing Suggestions

Printing this model with a robust material like PETG or ABS can enhance durability. Use a standard quality setting with at least a 10% infill to maintain the structural integrity and lid alignment.

Assembly Instructions

Other items required:

8 x M3x40mm steel dowels - https://amazn.so/y6a7S16

3mm Diameter Silicone Foam Seal Strip - https://amazn.so/X5lIsOF

The model is designed as two main parts: the base and the lid.

1 Press one steel dowel into each of the 4 Hinge catch brackets on the base.

2 Glue the silicone foam seal strip into the recess in the top lip of the base

3 Insert the label into the holder on the base

4 Press one steel dowel partially into each of the 4 Hinge catch brackets on the lid. Slide a hinge piece onto the dowel and press the dowel all the way through

5 Fill the desiccant holder with desiccant and put the lid on (if using sachets of desiccant, the lid isn't absolutely necessary)

6 Ensure the compartments are clear of dust before placing your filament.

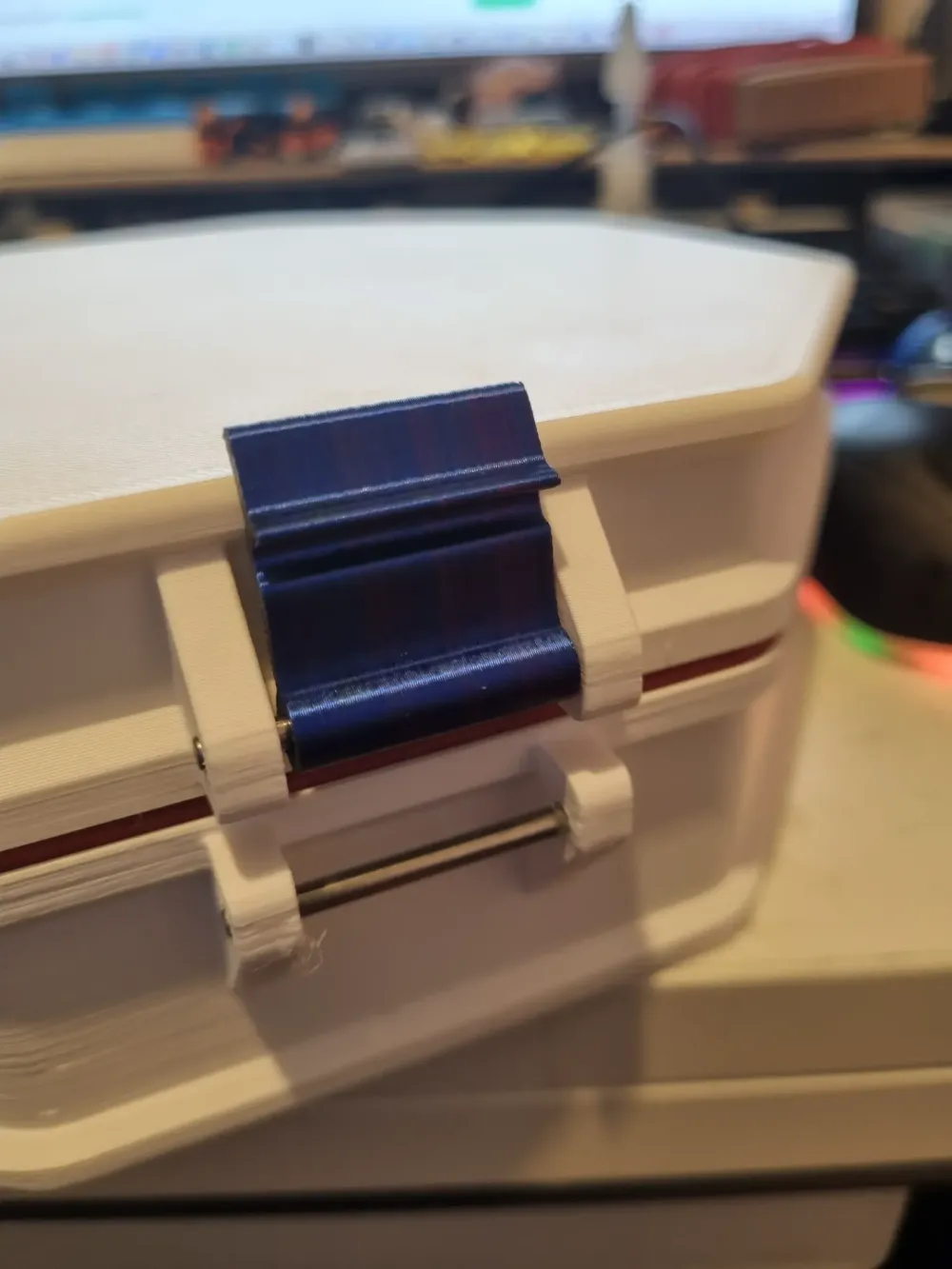

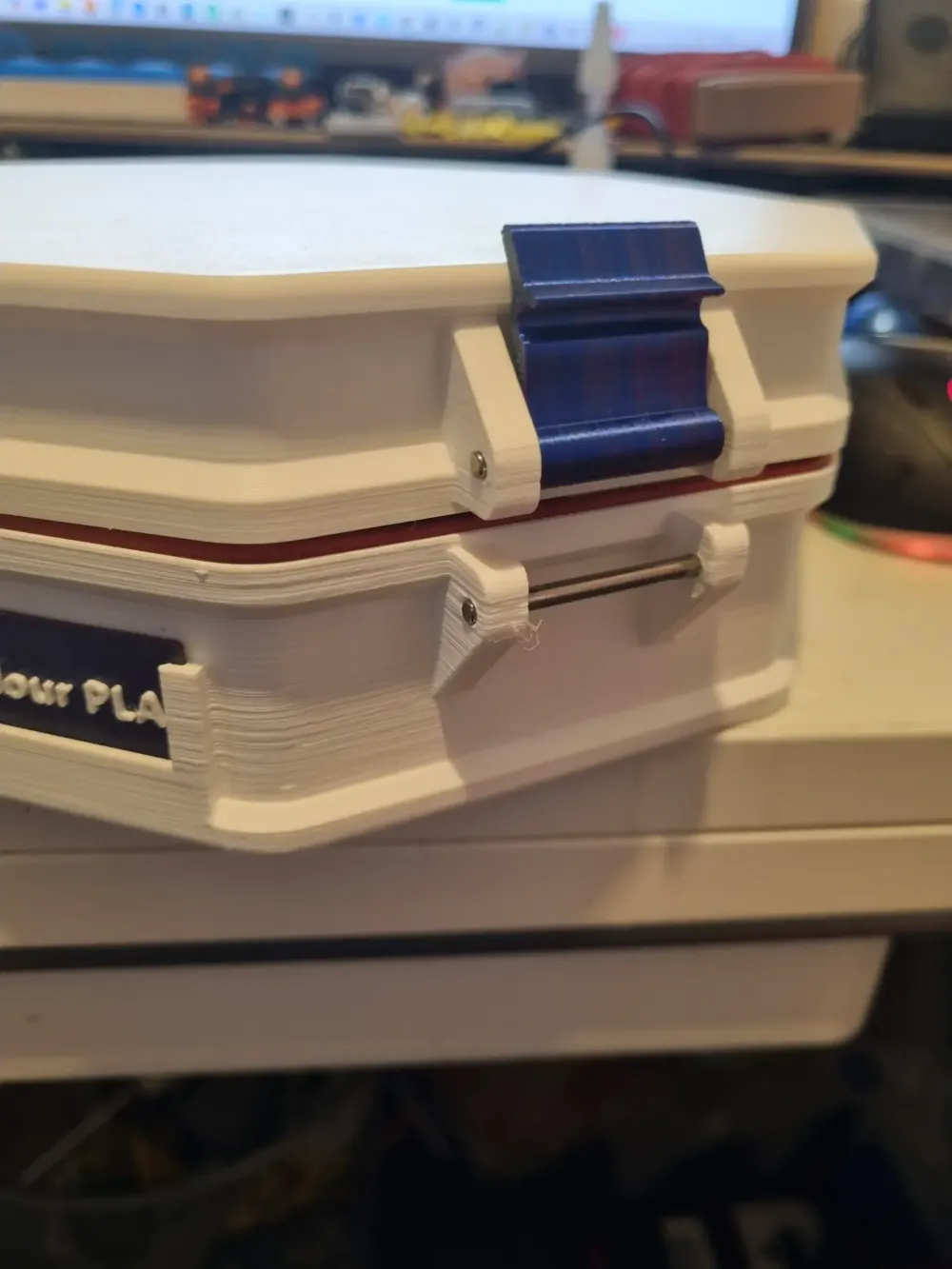

7 Put the lid on and press down to clip the hinges over the dowels in the base. The lid snaps tightly onto the base, providing a secure seal.

The dowels will be a very tight fit so it might be necessary to use a hammer Ensure the compartments are clear of dust before placing your filament.

Hexagonal Filament Storage Case

Hex Filament Storage Case 0.2mm layer, 2 walls, 15% Gyroid
