Please read the description!

When you decide to print my model please print the normal box first and look how it goes before you print the organizer holder!

This model is not compatible with gridfinity!

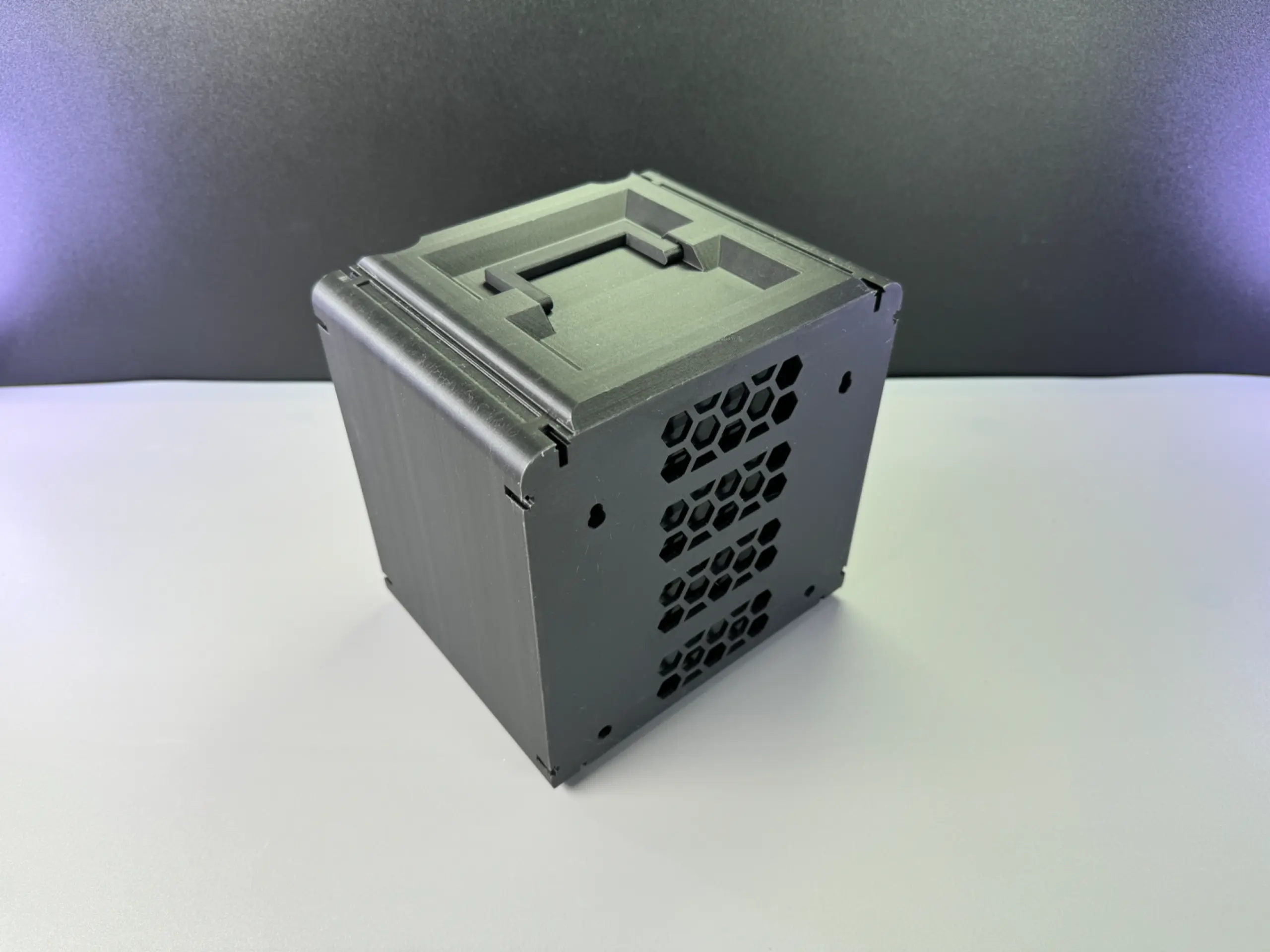

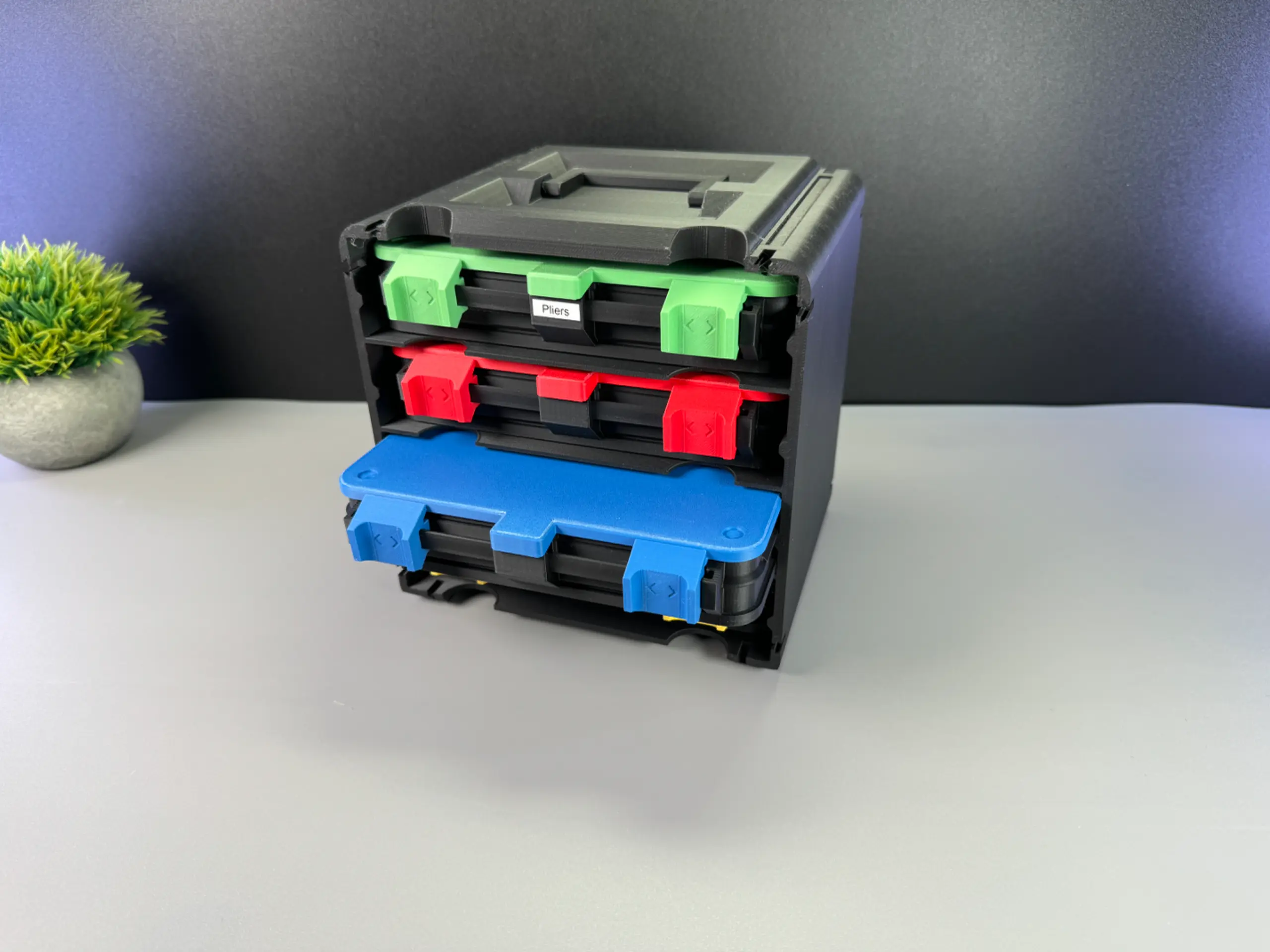

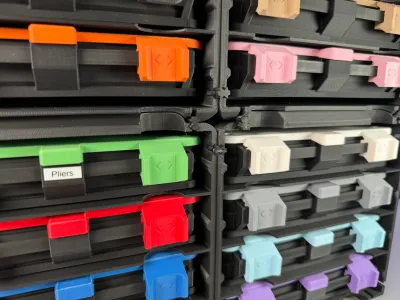

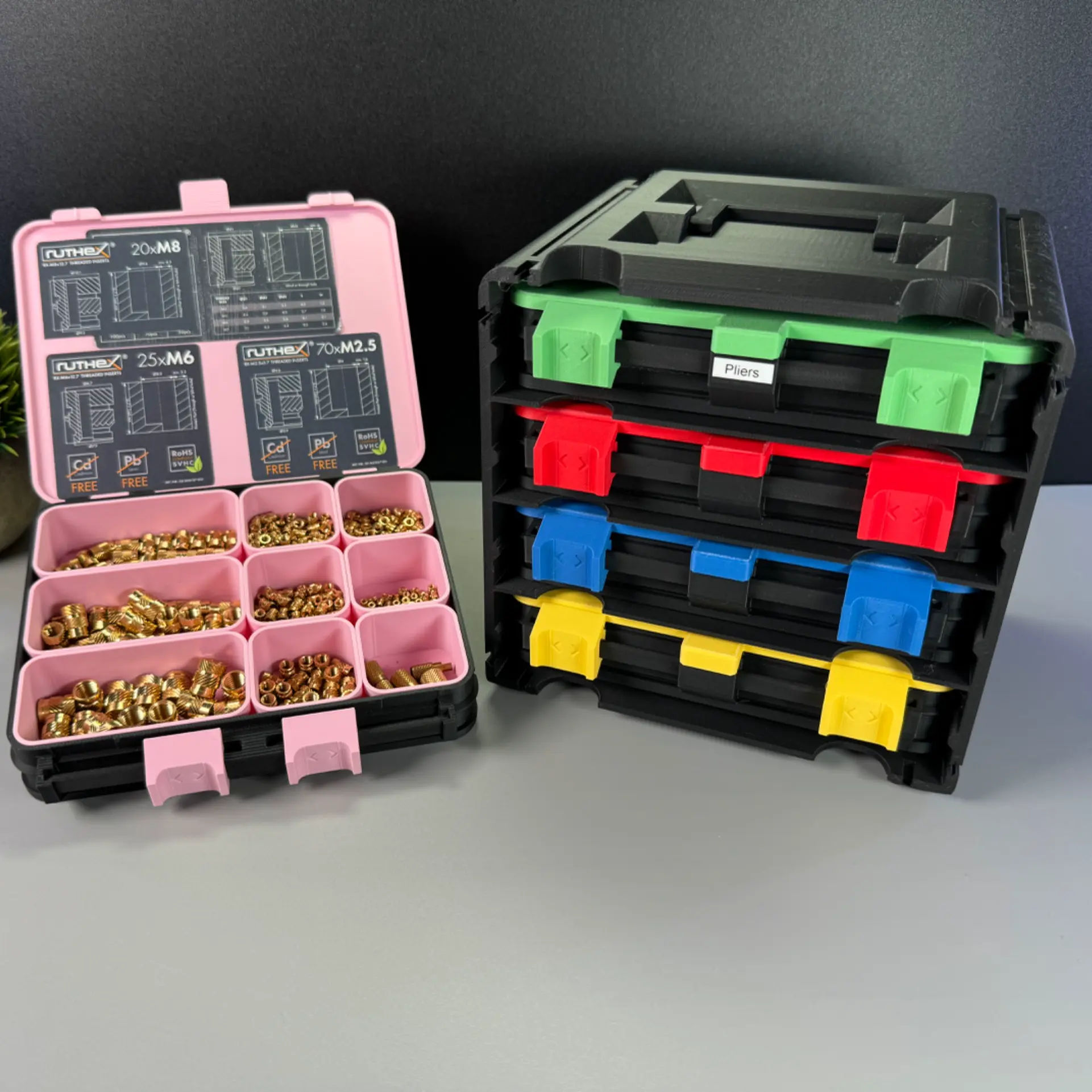

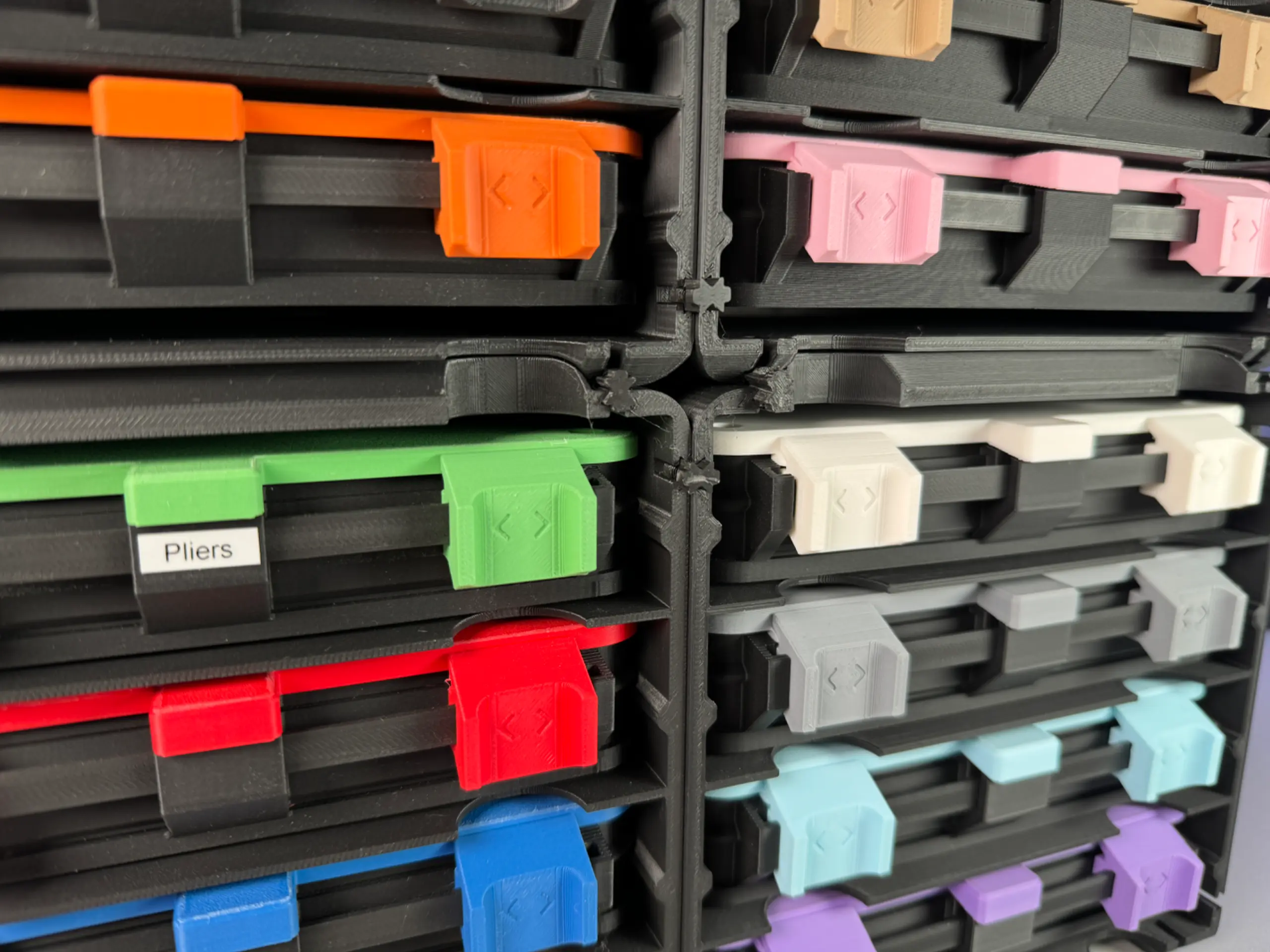

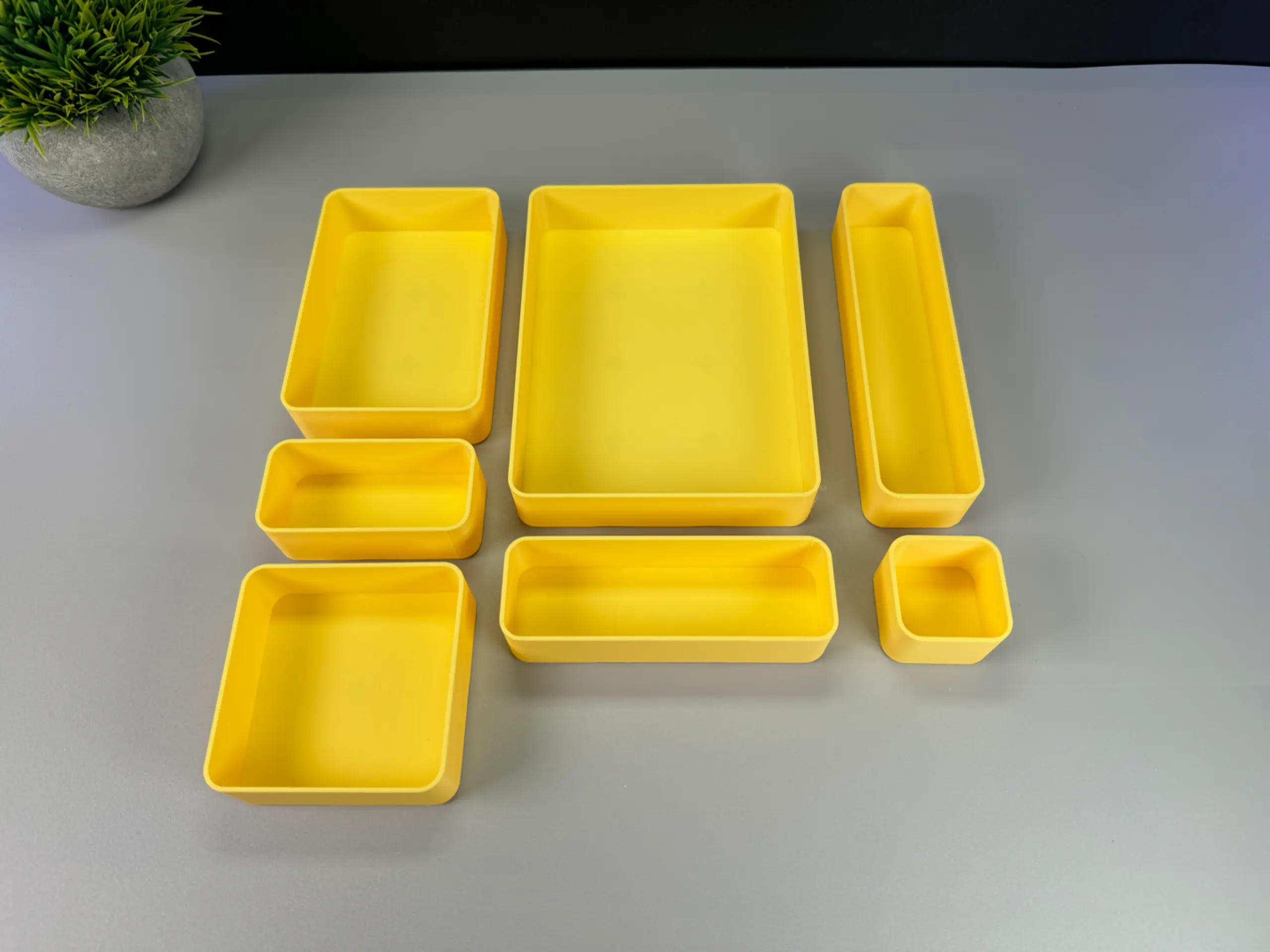

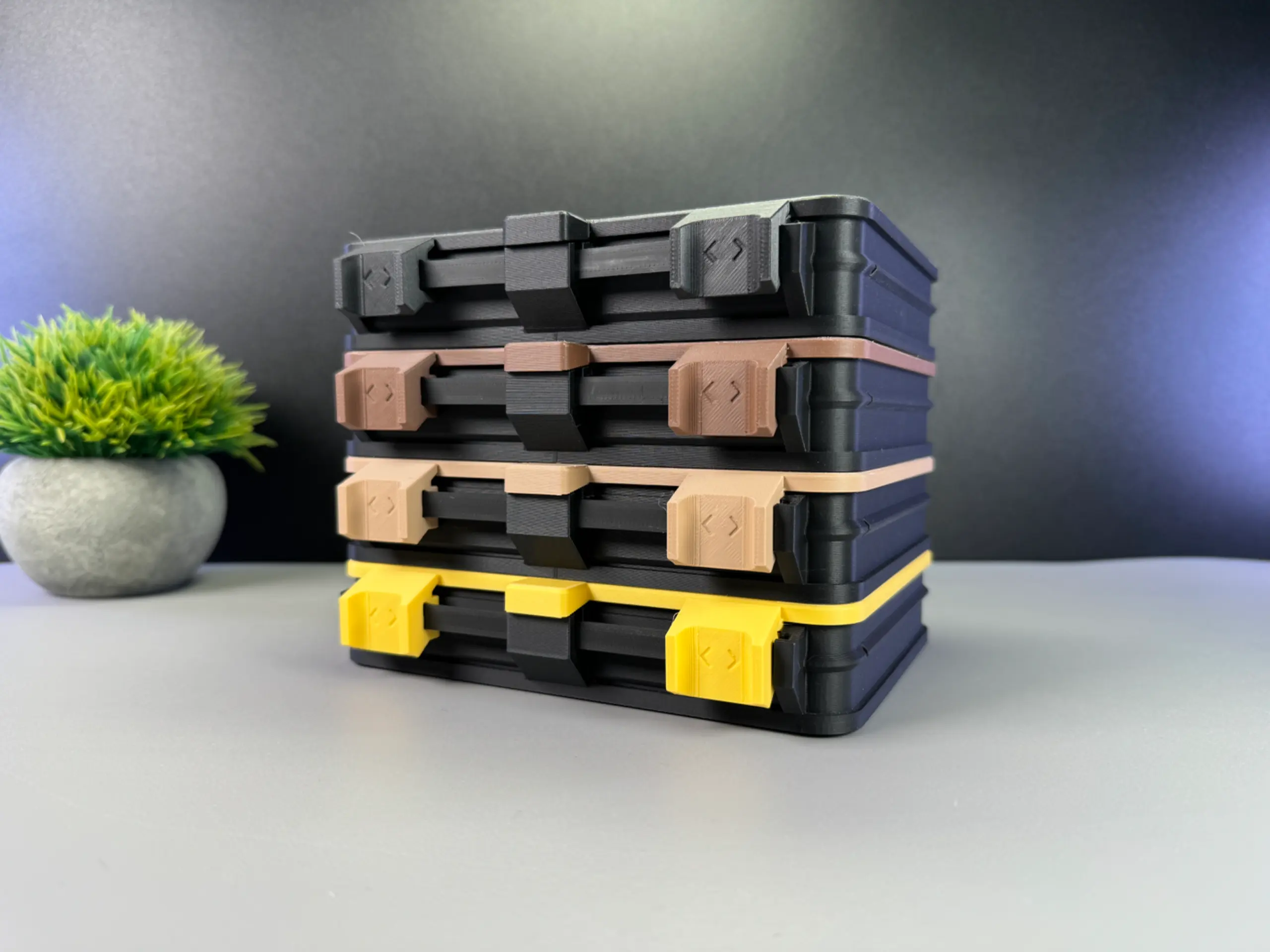

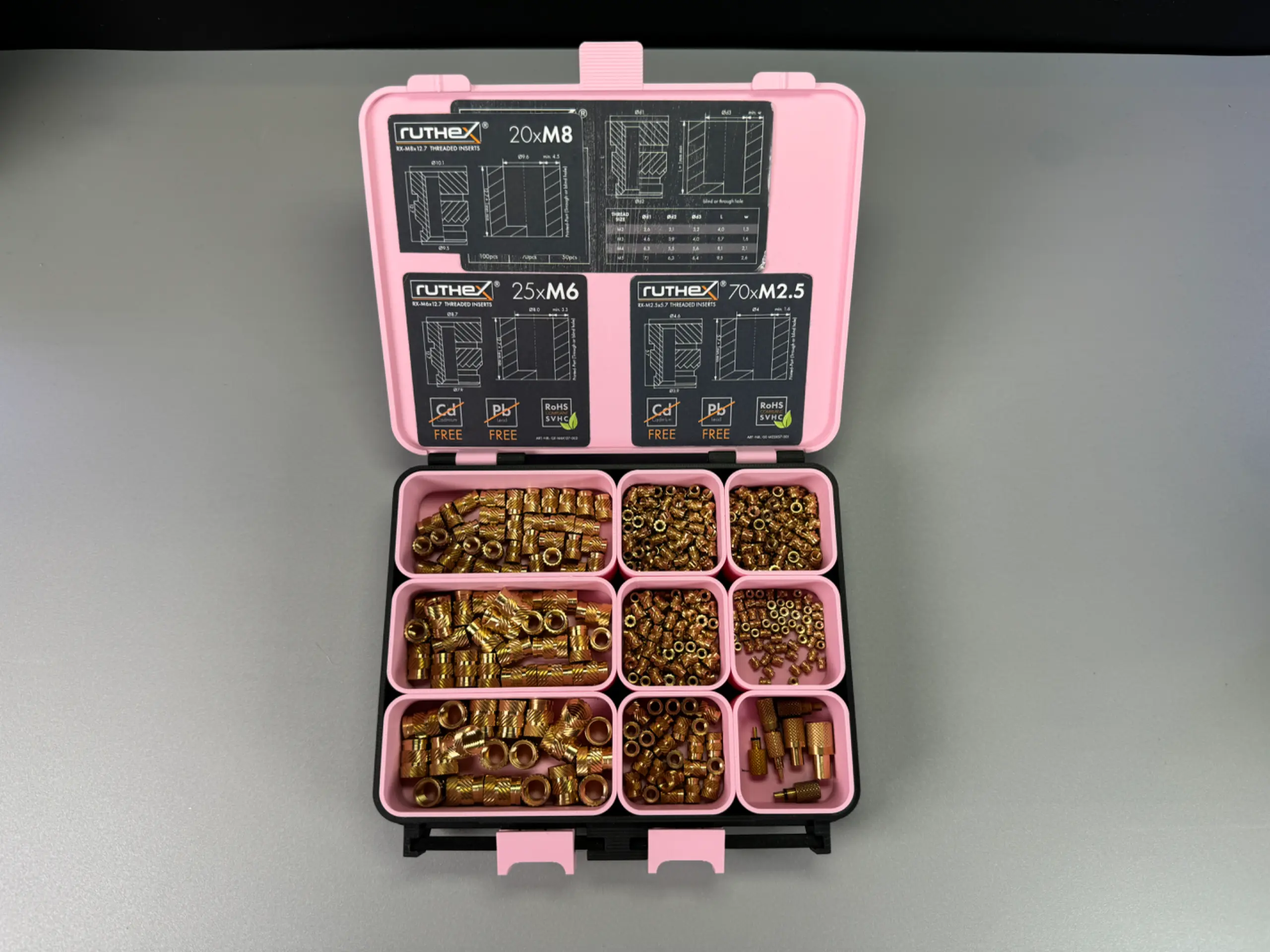

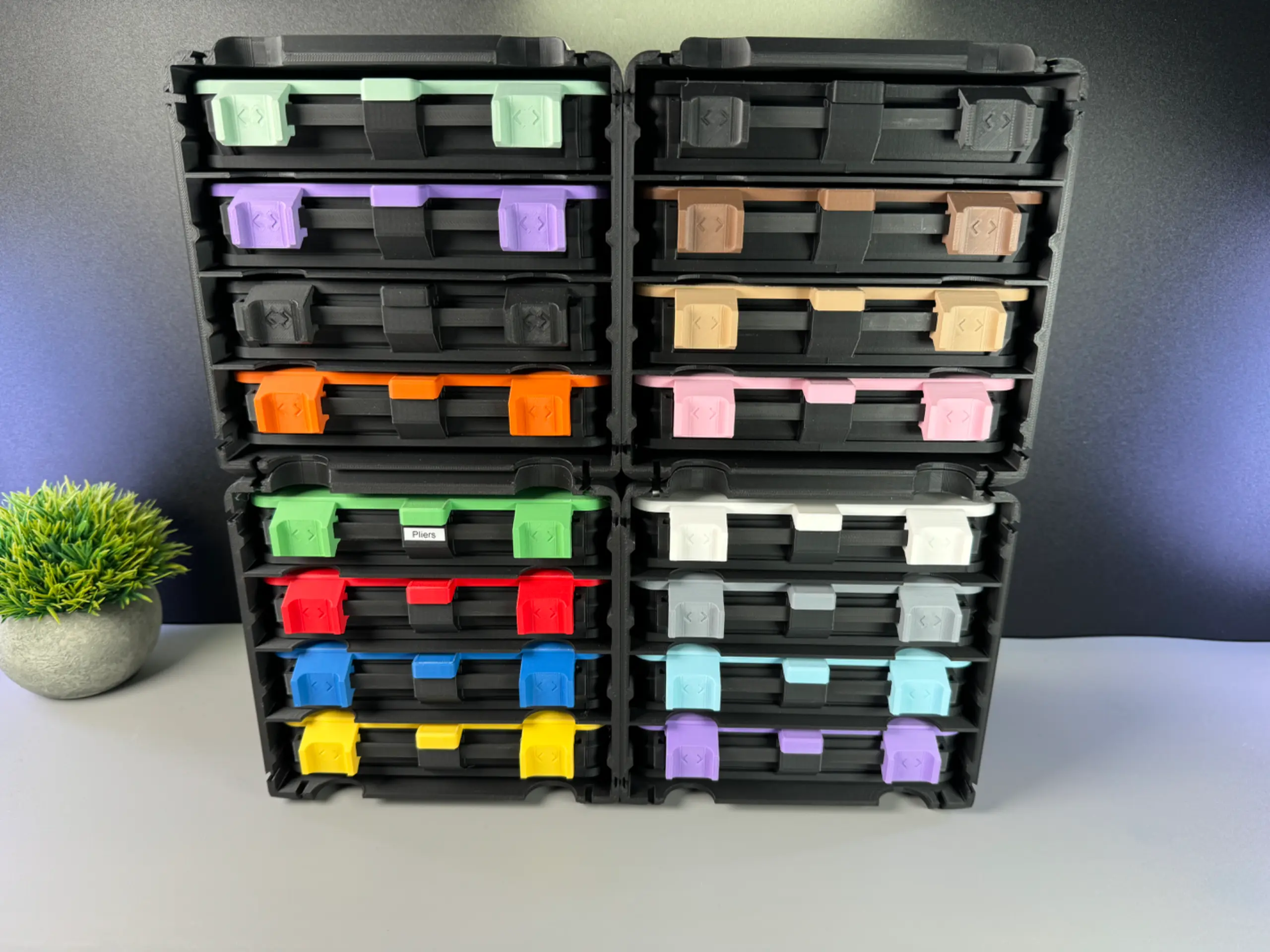

This organizer box has a lockable sliding mechanism. The boxes can be stored in a holder with up to 4 pieces. You can connect the holders with connectors in any direction and thus hold them all together. If you want, you can even attach the holder to the wall. Inserts are available in all sizes, but more from me will be added from time to time!

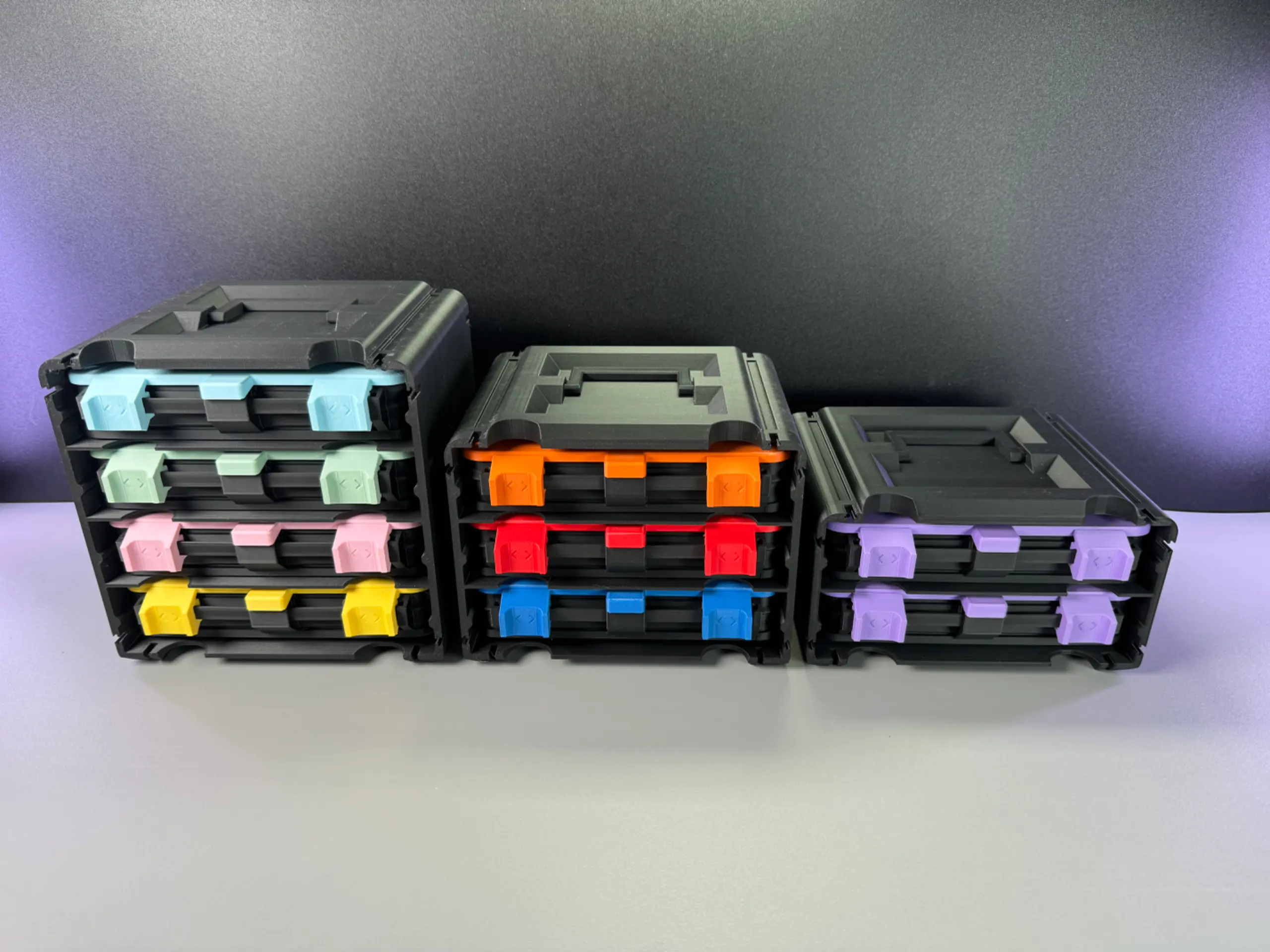

Important!!! You can only connect the box holders with the same sizes in the horizontal length. For the vertical height it doesn't matter which sizes you want to combine. (Stacking Picture in instructions download folder)

Here are my tipps for printing! Please use these values, as I have adapted my models to these and only so I can guarantee that everything works perfectly!!!

Tipps and values:

Filament: PLA recommended (PETG also works)

Quality (Layer Height): 0,2mm

Wall Loops: 3

Infill: 20%

Infill pattern: Doesn't matter (I used Rectilinear)

Supports: No! (Do not use supports for all of my Parts!)

Wall generator: For all Inserts Arachne!!! For all other parts Classic!!!

Print the parts as they are already oriented

Please make sure that the parts come not loose while printing them. When this happens it could be that the function of my sliding mechanism does not work perfectly!

It's just a recommendation, if the parts should hold well on your plate, you don't necessarily have to use a brim.

You can add a brim to the:

Lid

Bottom

Organizer Holder

Slide Lock Left/Right

I have made an instruction how to assemble my organizer box. You can find the instructions in the download folder!

Changes and added models:

- nothing yet

Problems that have occurred and how to solve them:

Rails don't fit in the SlideLockLeft/Right

Scale the rail down on Y and Z scale by 0.4mm or try out which value you need to adjust!

Added Rail_reduced_0,2mm_2x_V01 (Folder:OtherDesigns) this should help too (made the rail smaller) (print it as oriented!)

filament won't fit through the hinges

drill out the hinges if you can (be very careful that you don't take to much away!) because the filament must sit a little tight in the hole, otherwise the hinge will not work correct and the filament can fall out of the hinge!

Organizer Box

Inserts Small 0.2mm layer, 3 walls, 20% infill

Other Designs 0.2mm layer, 3 walls, 20% infill

Organizer Box 0.2mm layer, 3 walls, 20% infill
