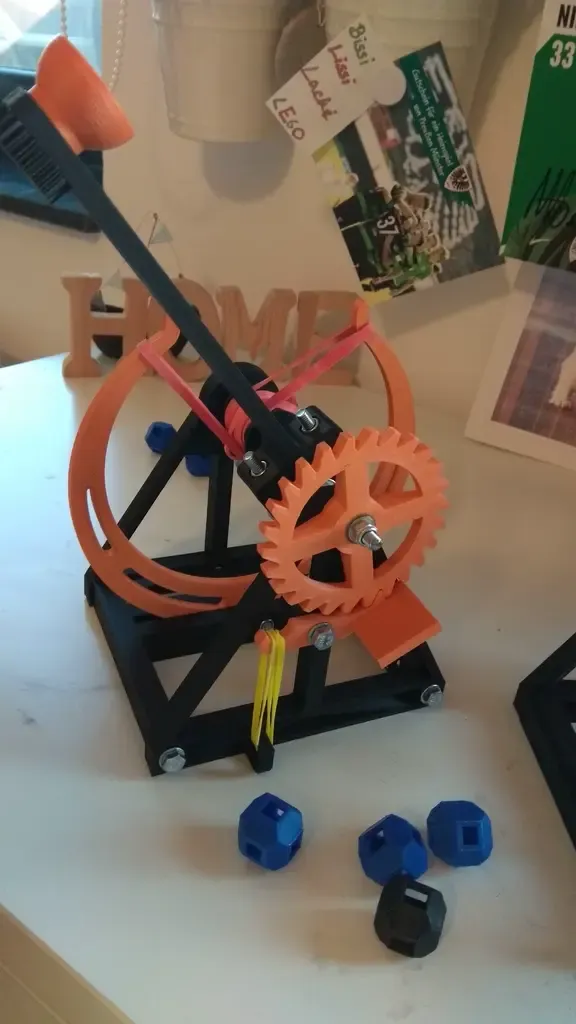

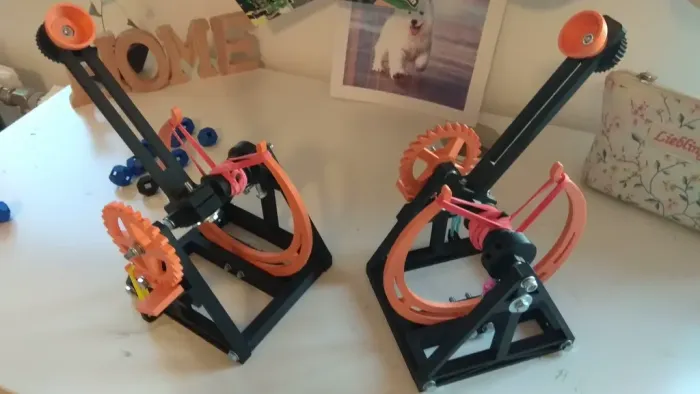

Das ist eine Weiterentwicklung des Catapultes von Jay999.
Nach dem Ausdruck fiel mir auf das das Catapult nur mit Holzschrauben zusammen zu schrauben ist. Ich habe also alle Teile noch einmal in Fusion360 konstruiert. Jetzt sind alle Muttern im Print versenkbar, und man kann die Teile fest verschrauben.
Dabei wurden folgende Teile verändert:
alle
Eine Konstruktionen wurden überarbeitet, insbesondere der Abzug und die Mechanik dazu. Die Achse mit den Gummiaufnahmen.

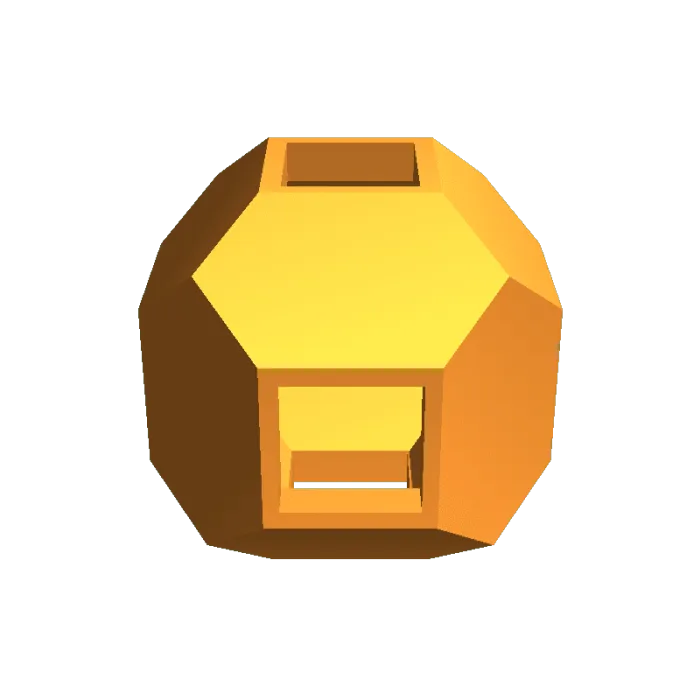

Ausserdem habe ich Euch einen Ball.
Habt Spass damit! Man kann Schachfiguren auf 4m Entfernung abschießen.
Google translation:
This is a further development of the catapult from Jay999.
After the printout I noticed that the catapult can only be screwed together with wood screws. So I constructed all the parts again in Fusion360. Now all nuts can be retracted in the print and the parts can be screwed tight.
The following parts were changed:
all
A construction was revised, in particular the trigger and the mechanics. The axis with the rubber mounts.
I also have a ball for you.
Have fun with it! You can shoot chess pieces at a distance of 4m.
