Full Credit to Arron-mollet22 on thingiverse:

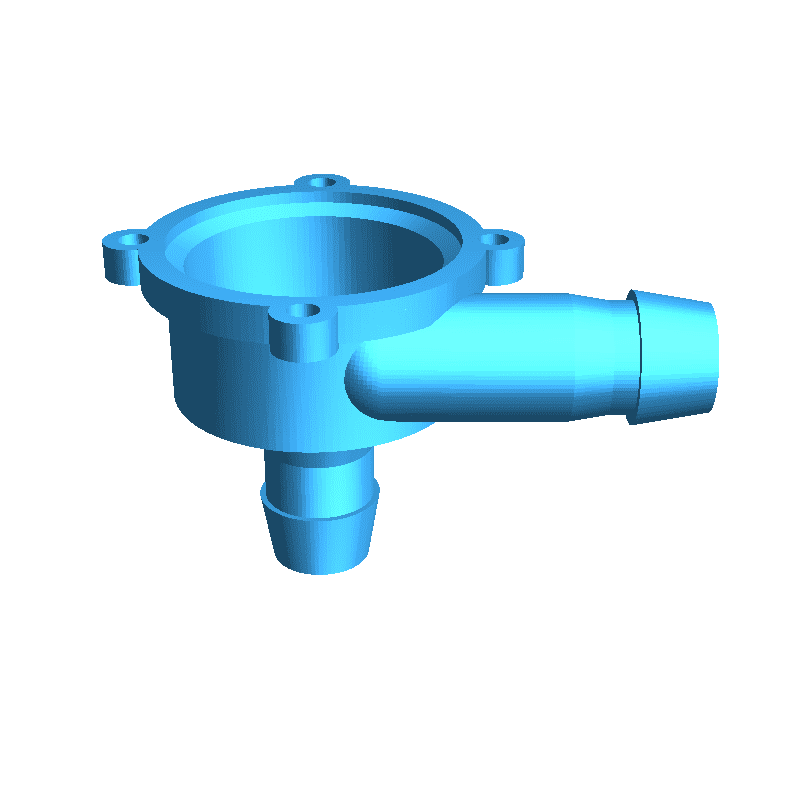

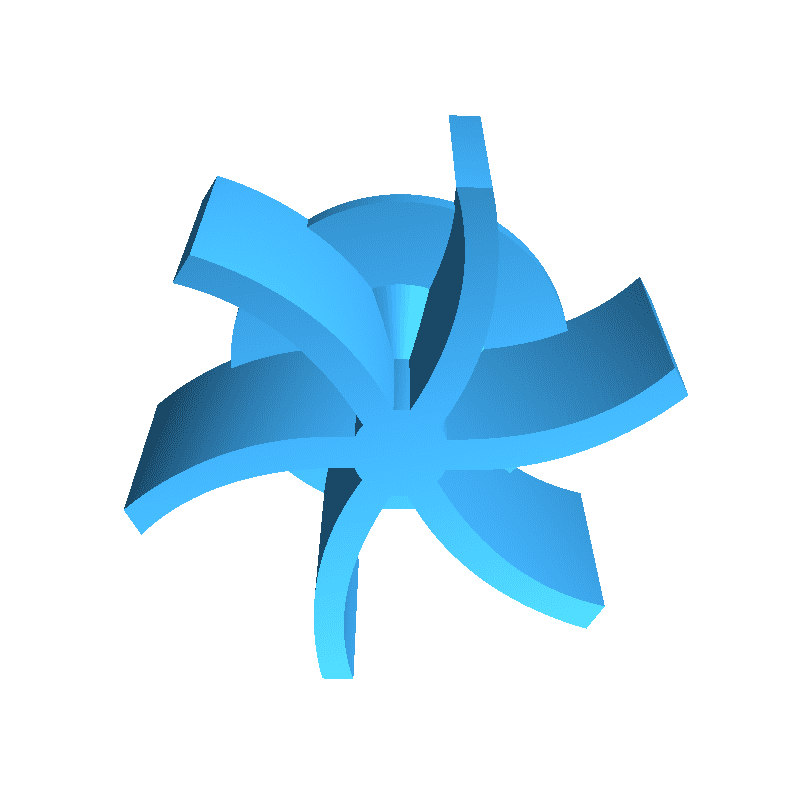

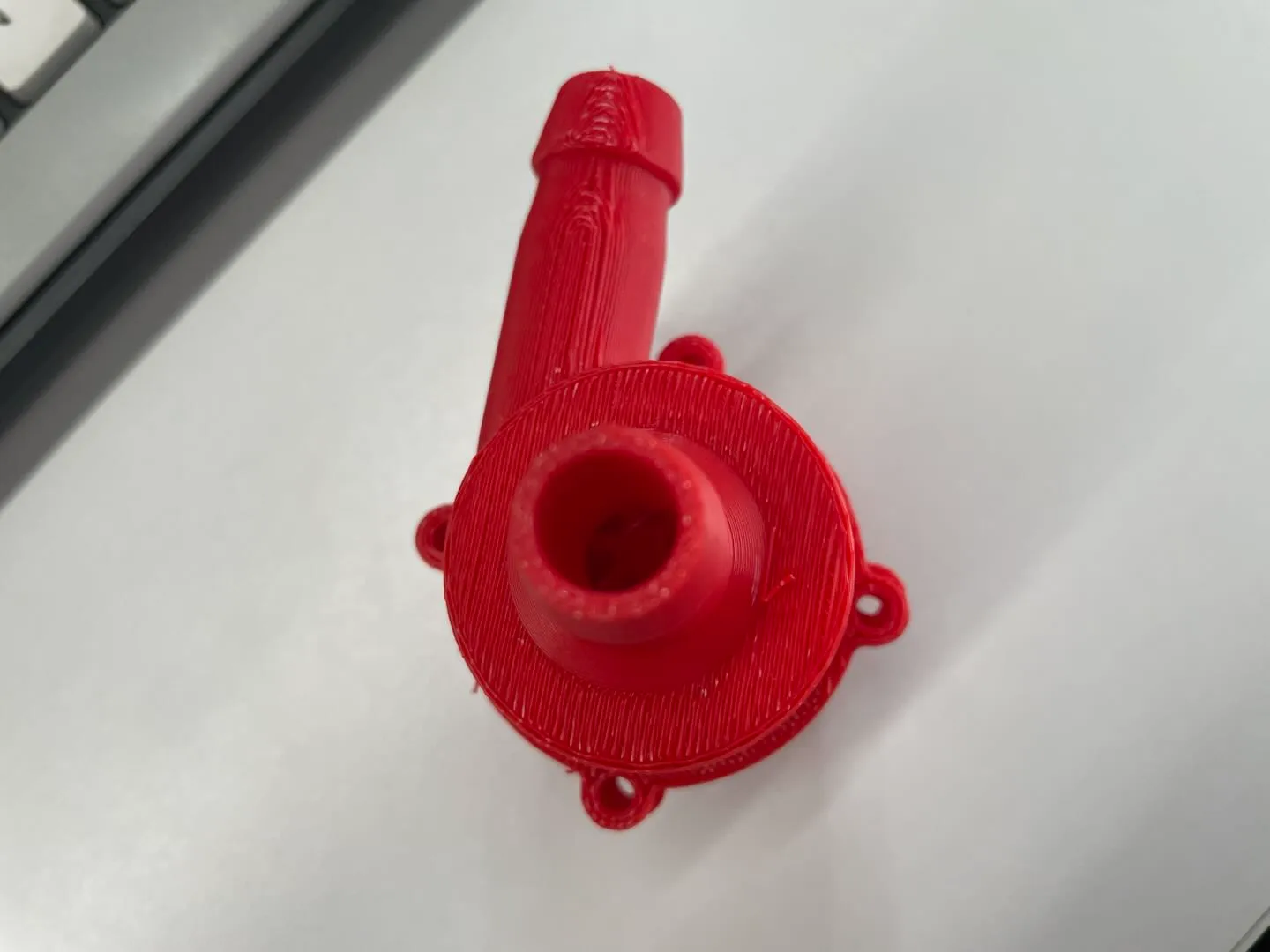

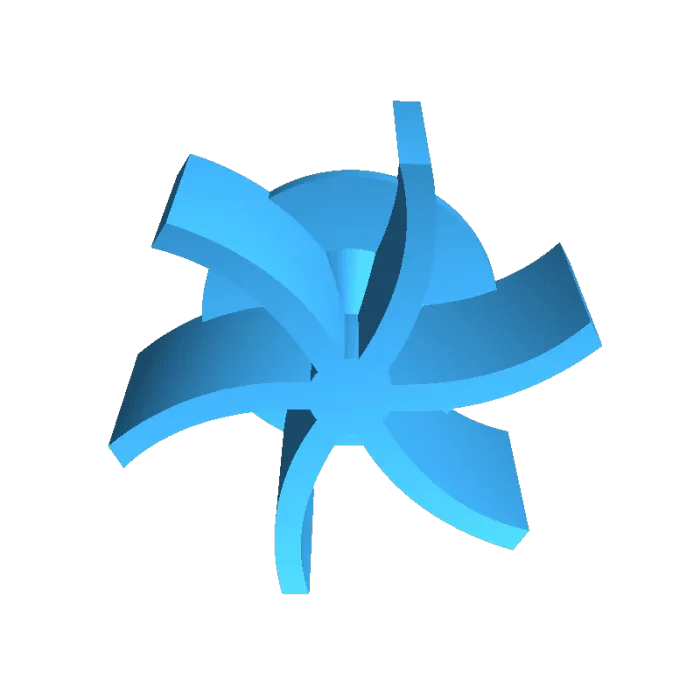

This is a functional micro centrifugal water pump that has been tested and works. It is not self priming but certainly can put water well once it gets going. The design is exceptionally compact only taking up about 2"x1"x1". This is designed to be used with 5/16 vinyl tubing and a compact motor to drive the pump. I will include amazon links to the specific parts that it was designed for.
5/16 ID Vinyl Tubing (10ft): https://amzn.to/2DmmpEF
5/16 ID Vinyl Tubing (25/50ft): https://amzn.to/2zmOuI6

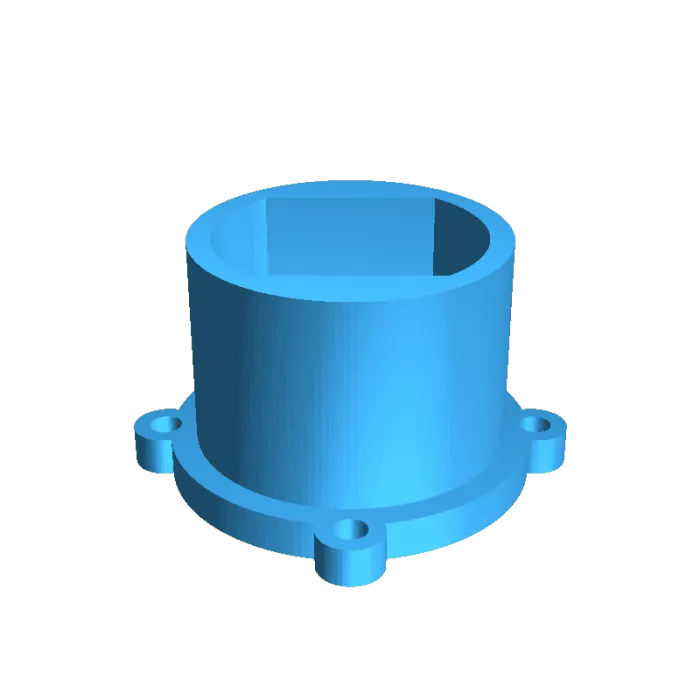

0-6V DC Motor: https://amzn.to/2Dk9jYz
I also cut out a rubber gasket to create a better seal to avoid the pump leaking.
M2 Metric Hardware is what was meant to be used.
Hardware: https://amzn.to/2xtGHGK
Print Settings
Printer brand:
Monoprice
Printer:
Select Mini
Rafts:
Doesn't Matter
Supports:
Yes
Resolution:
High Detail
Infill:
Solid
3 files
