Not Mine
Found: https://www.thingiverse.com/thing:2163650
Summary

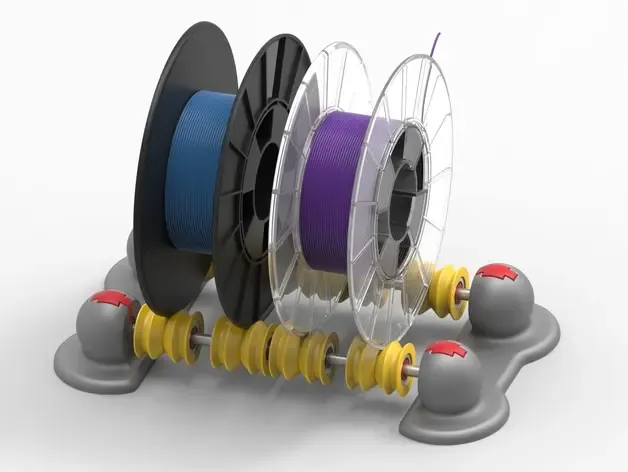

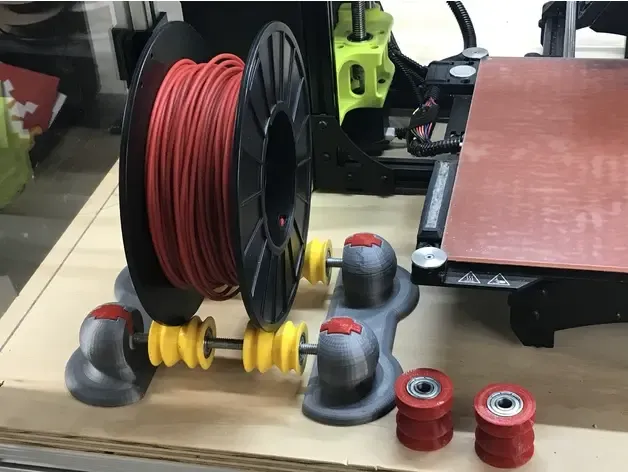

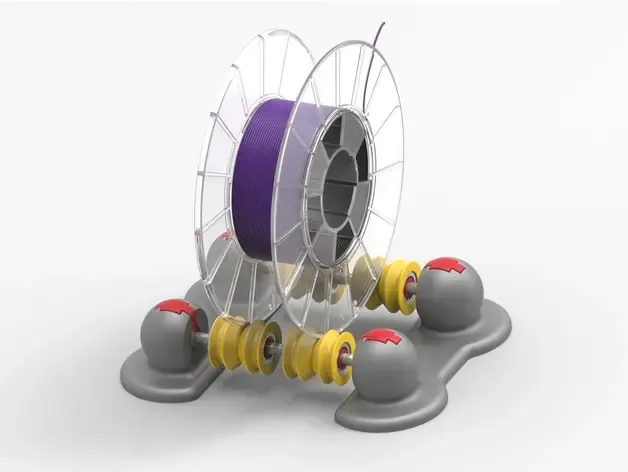

SCOPIC is a Filament Reel Holder that can quickly and easily be adjusted for different filament spool types and sizes. The three "V" grooves in each roller adjust to fit spools perfectly and prevent shifting.

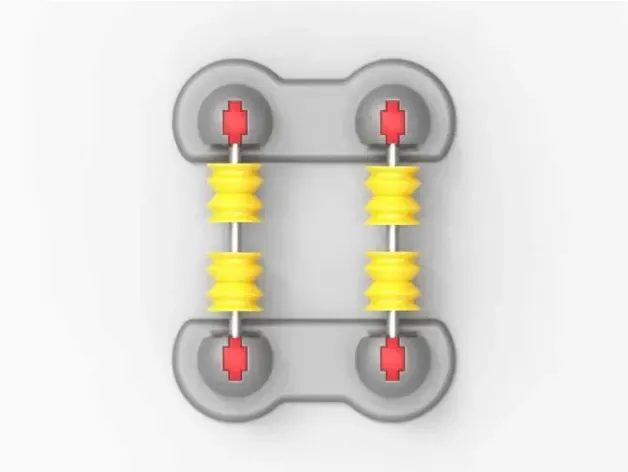

Depending on the length of threaded rods chosen, SCOPIC can be used with one spool, or multiple spools.
Parts Needed:
(8) 608XX 8x22x7 Bearings (Skateboard Bearings)
(2) 5/16-18 Threaded Rods (cut to any length - 8" Shown)
(4) 5/16-18 Nuts
Assembly Video: https://youtu.be/w2kbuE8KYGI
Print Settings
Rafts:
No
Supports:
No
Resolution:
.2
Infill:
100%
Notes:
I did my best to make sure all parts could be printed WITHOUT support. Here is my suggested orientations:

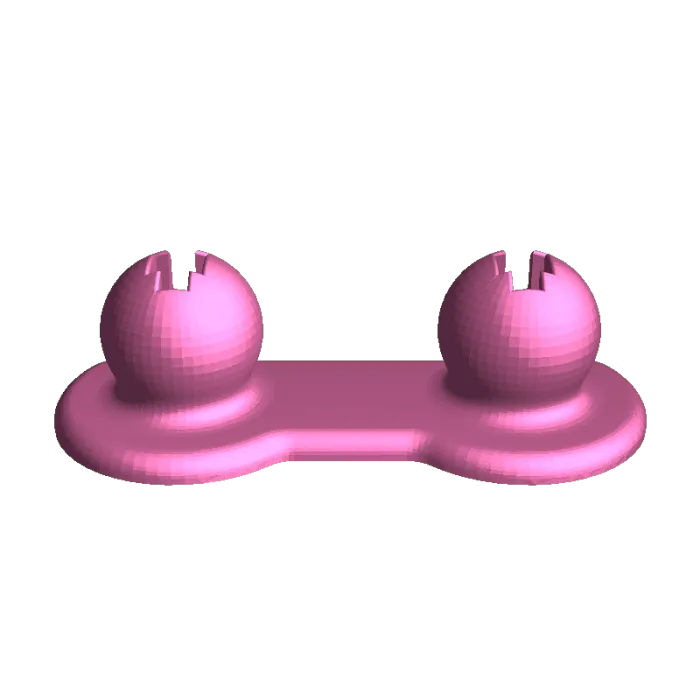

Sides - Base Down

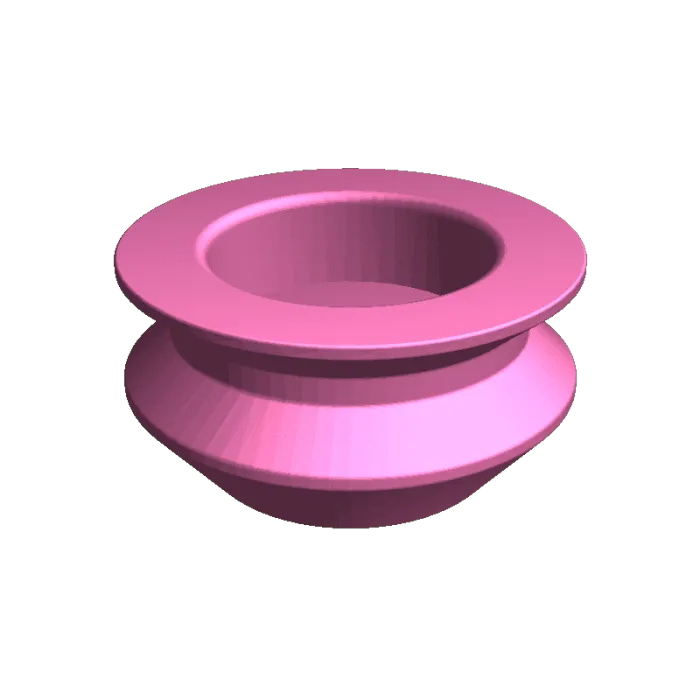

Rollers - Bearing Opening Up

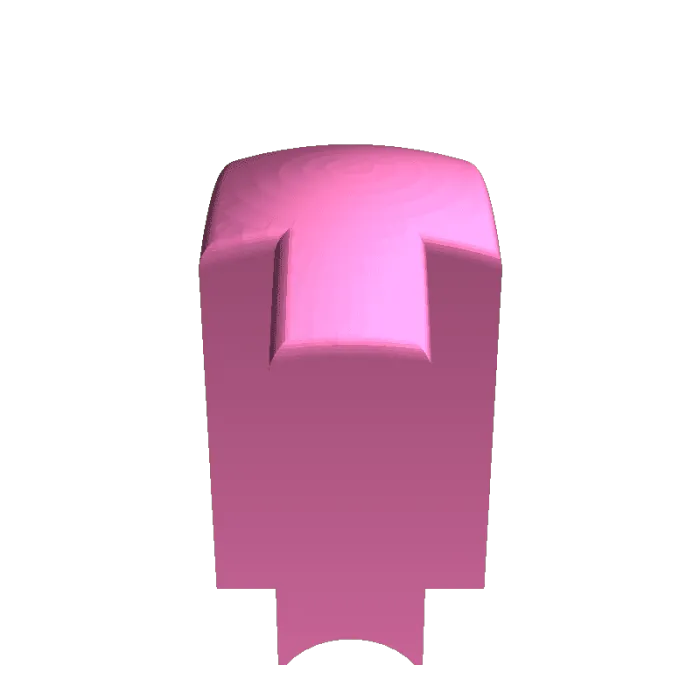

Caps - Voids Down (Rounded top Up)

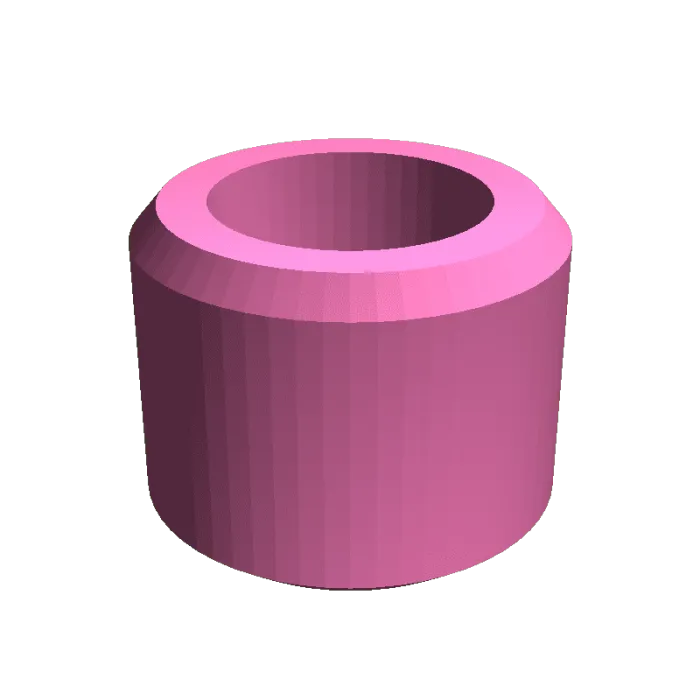

Couplers - Round on Table
Because of the angles, I would suggest slowing down your print speed and setting a layer height of no more than .20
4 model file(s) included
