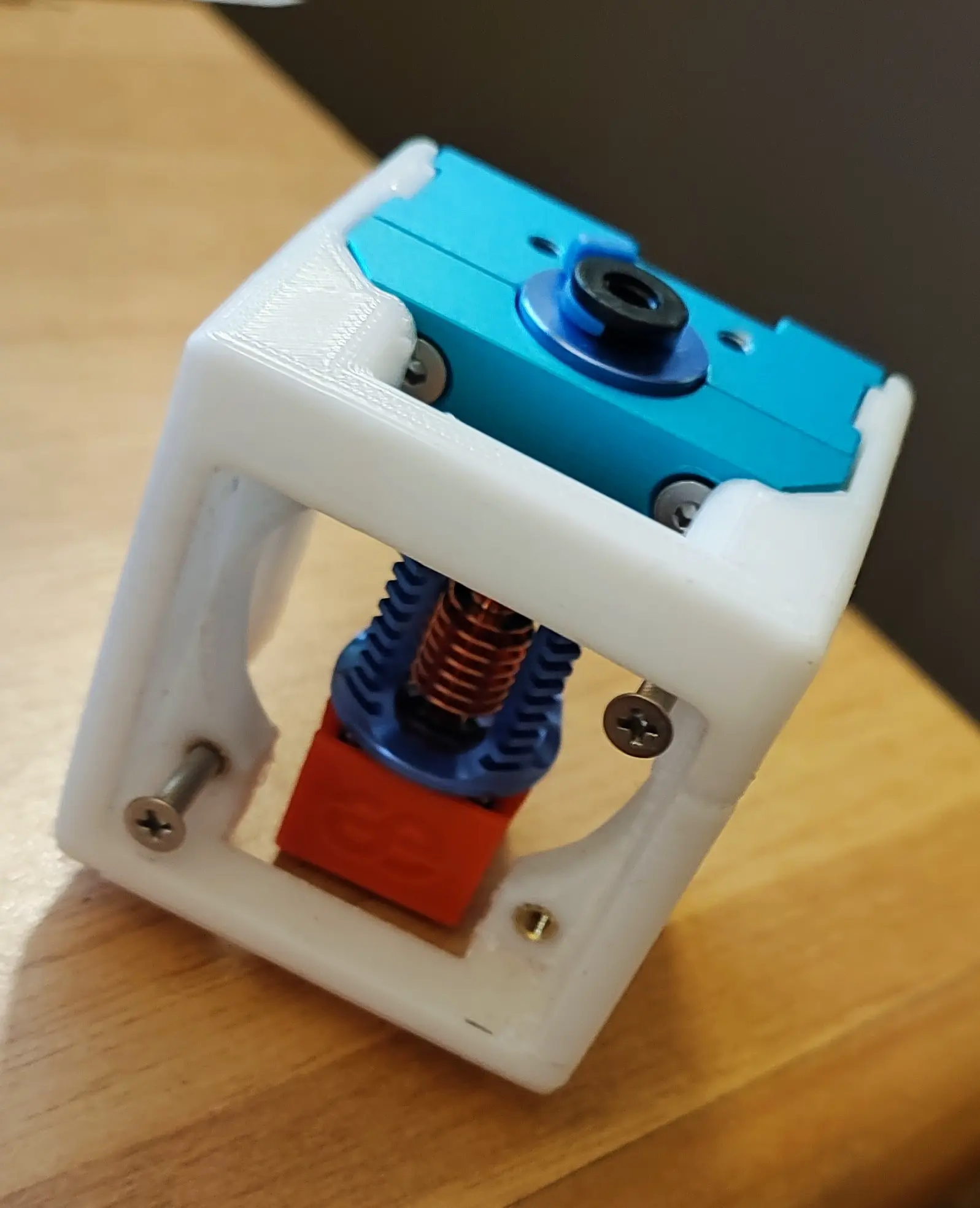

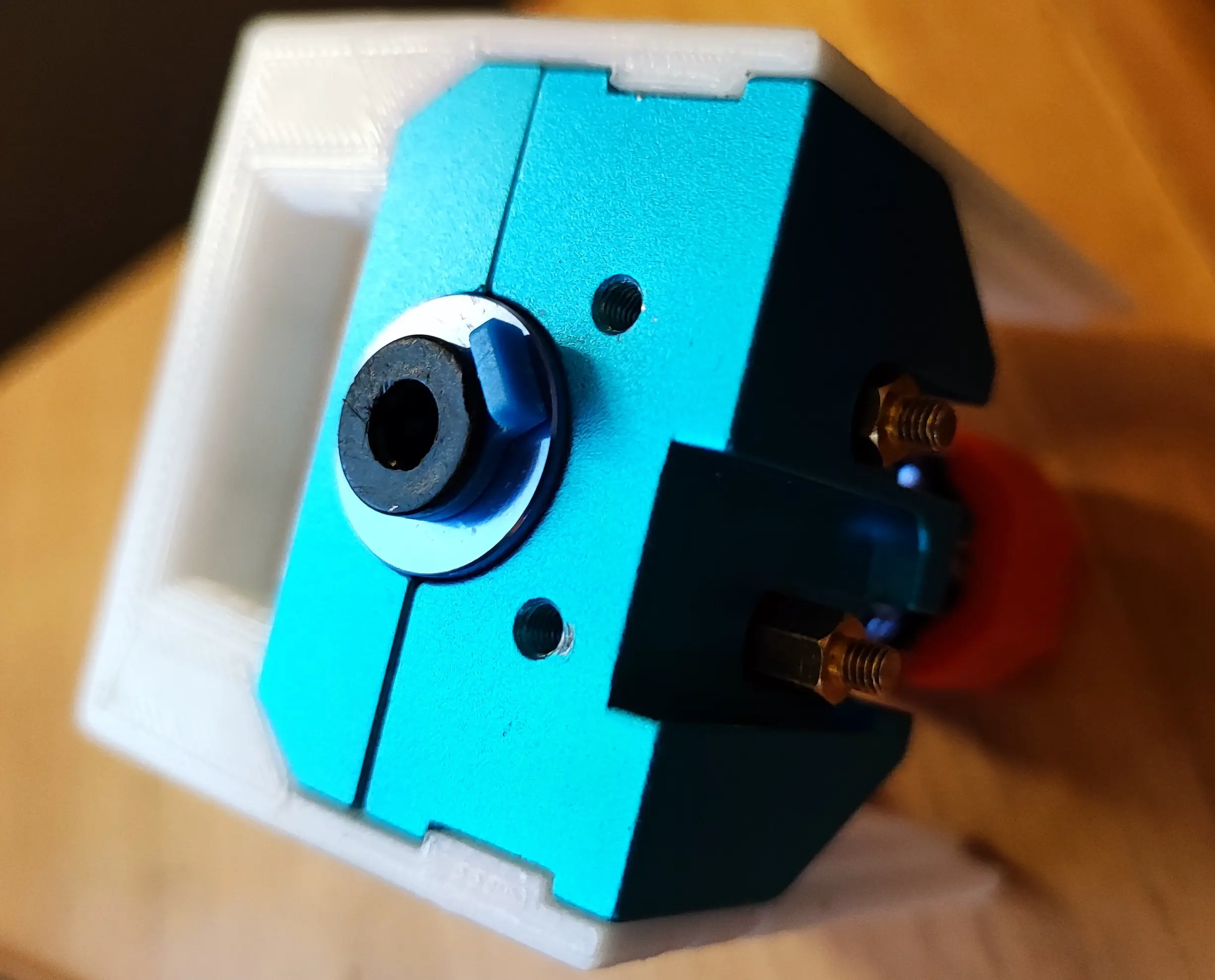

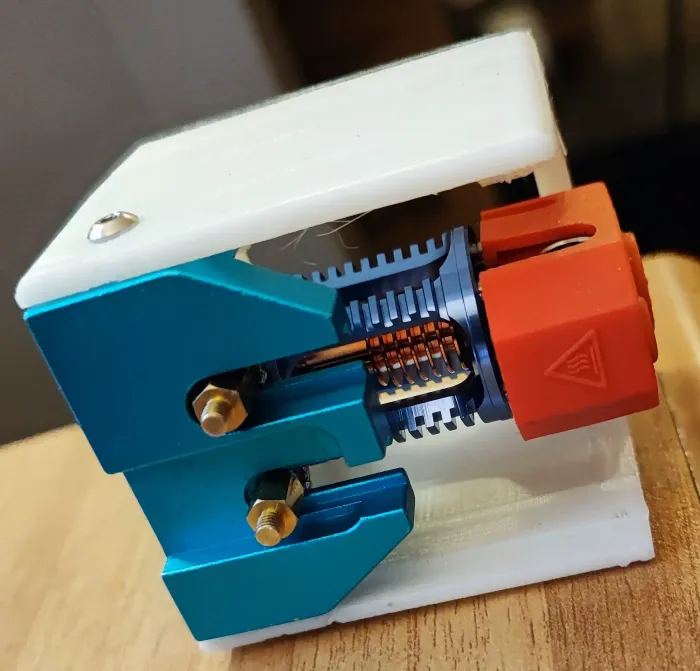

This is a setup of Dragonfly BMO hotend on Ender6.
You will need:
1.Klemco bracket

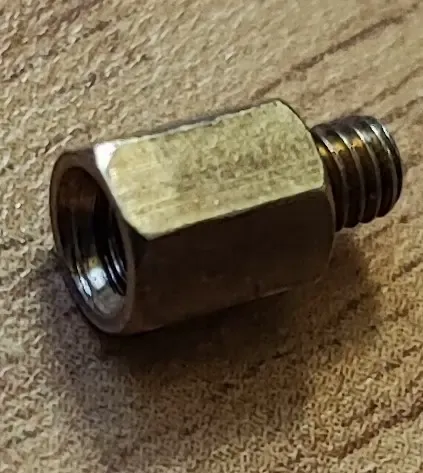

2. Computer motherboard nuts. Also short bolts with flat heads.
Other parts came from original setup of ender 6. Do not forget to make PID test. Also check and set printing bed leveling proper way!
Front fan can be 40x10mm, also can use 40x20mm. Tested and works good.

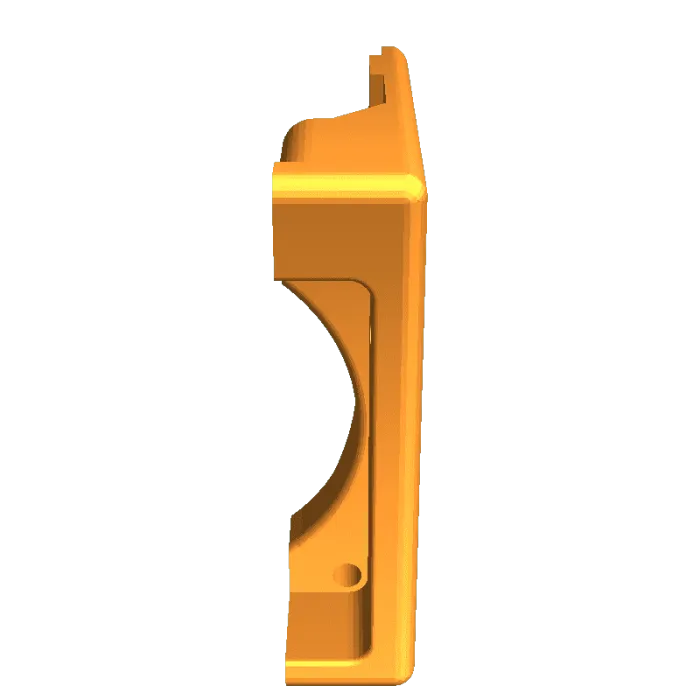

Simpliest way is to print V2 stl. Then you should make mirror when slicing it and mount coresponding part on each side of the klemco bracket.
Front fan strenthen well the model when mounted properly.

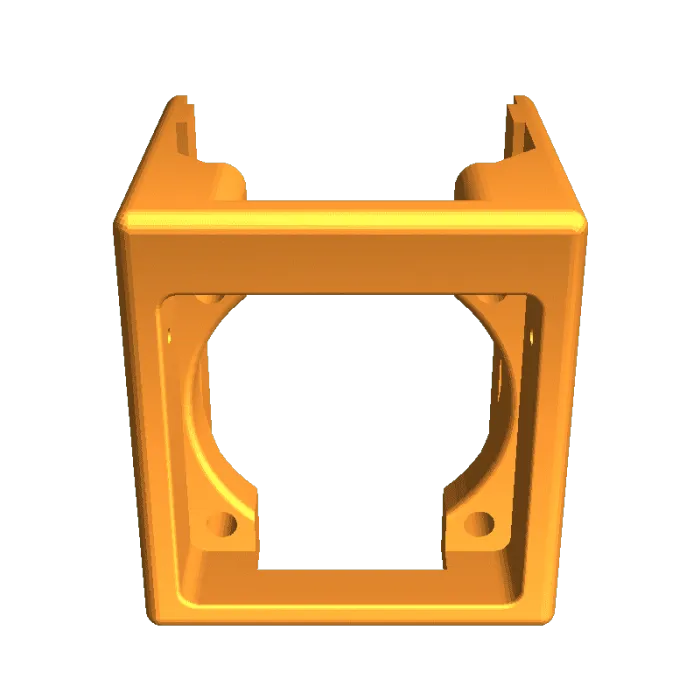

If you print FANBOX.stl - use support.
