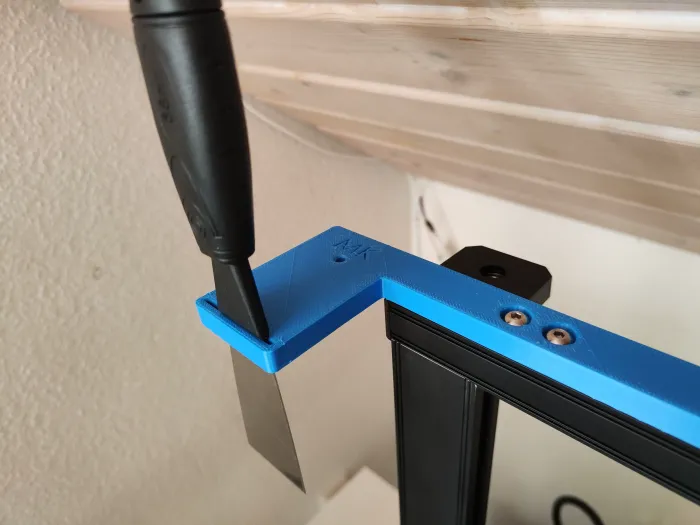

Works with the two M5 screws and slot nuts that come with the printer. For top mount on the left side.

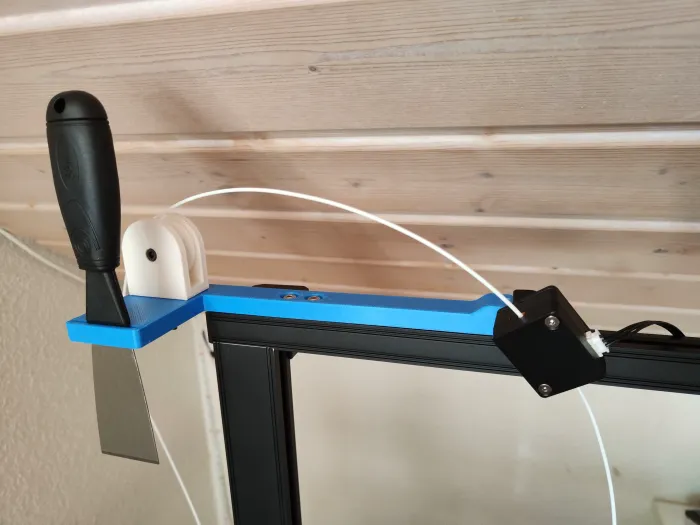

The Update V2 is for a lower build of the 3D Printer. The Filament holder on top goes away. You just need a free standing filament holder, that stands by the side of the printer. I recommend the Atlas Spool Holder from Waikiki Prod. (Link below)
Update V2 (with filament runout sensor and filament guide):

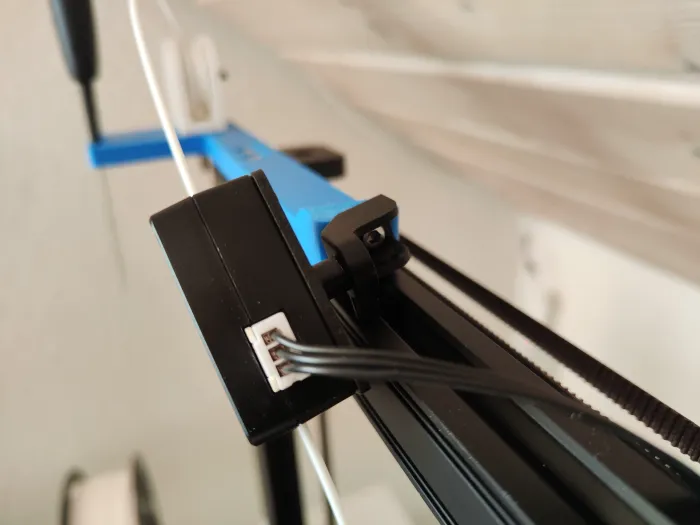

Now the holder contains a mounting hole for the filament runout sensor. You just need a M3 nut, that you press into the slit. Then you screw in the sensor with the rotatable joint.

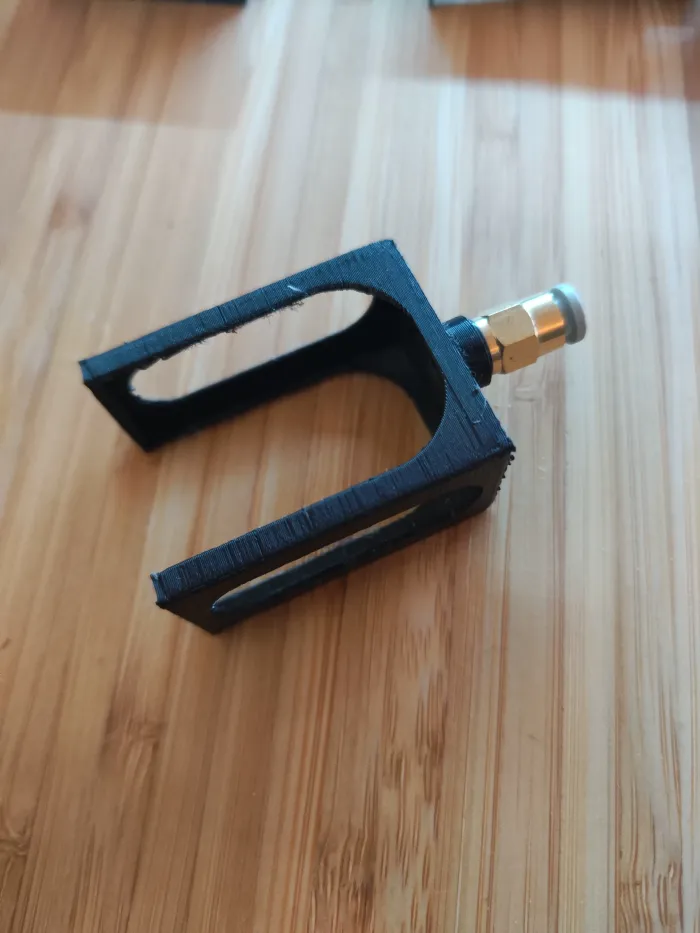

Detector Cage:

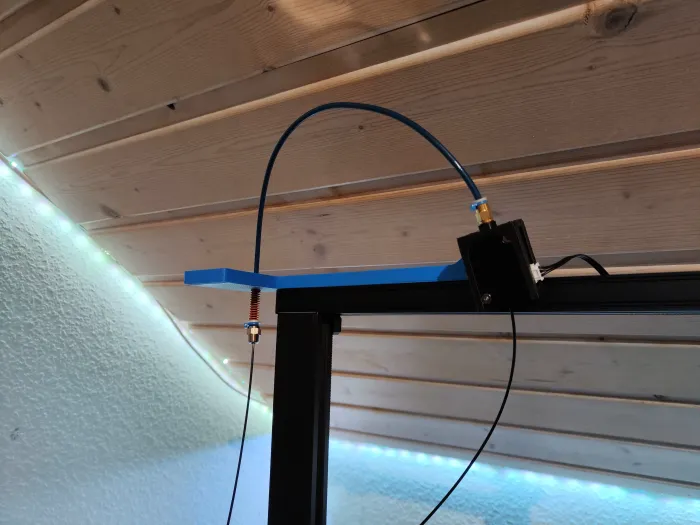

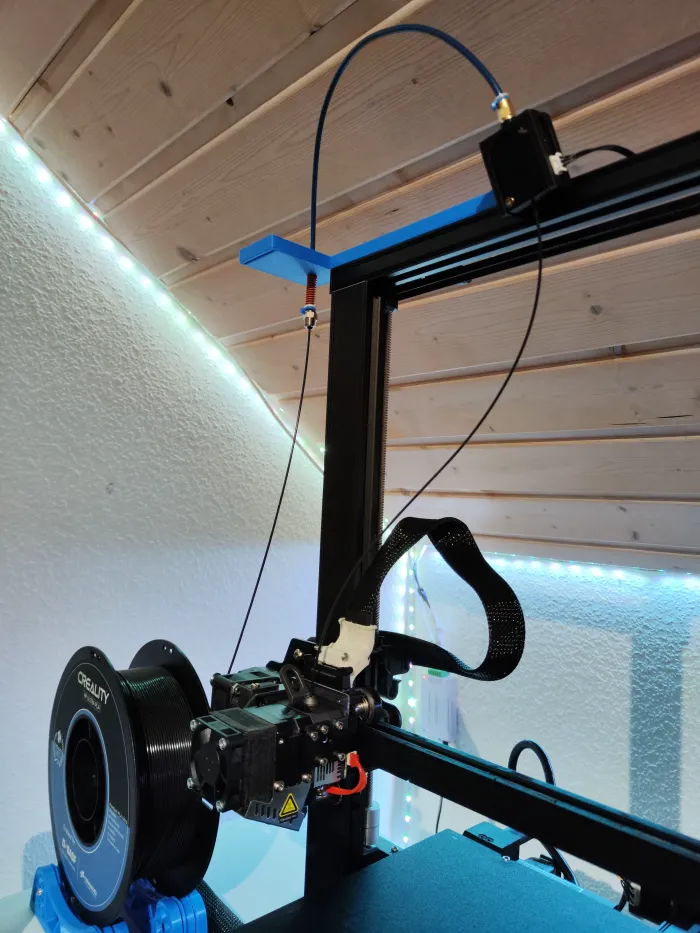

For the filament guide you have to get a bowden tube. I used the Capricorn upgrade kit with the pneumatic fittings. You have to pass the bowden tube through the hole on the Spatel Holder. (Like in the Picture)

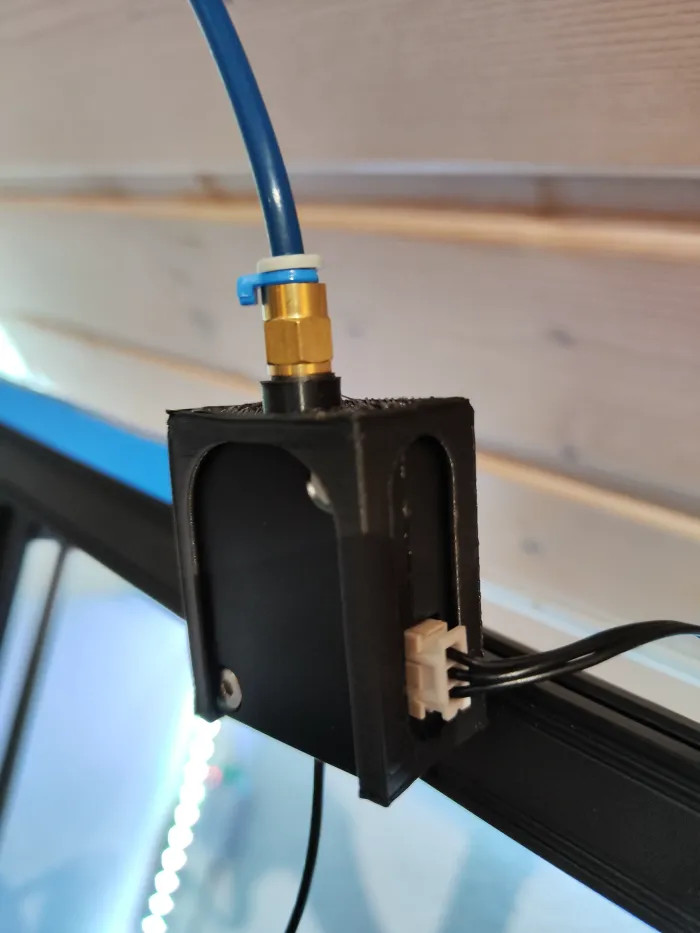

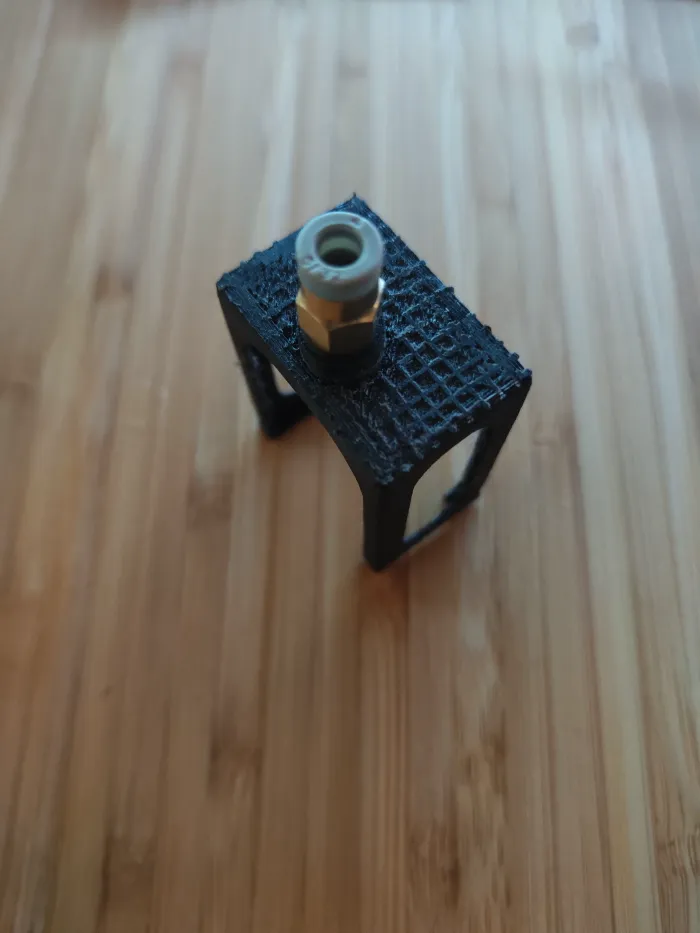

Screw the pneumatic fitting into the cage. Then attach the Detector Cage to the filament detector. (You might have to experiment with the scale a little bit, because it is a little bit fragile. I had problems with the shrinking of the material.)
If you dont want to buy a bowden tube, you can also print my Add-On V2 (filament guide). Informations below.
Add-On V2:

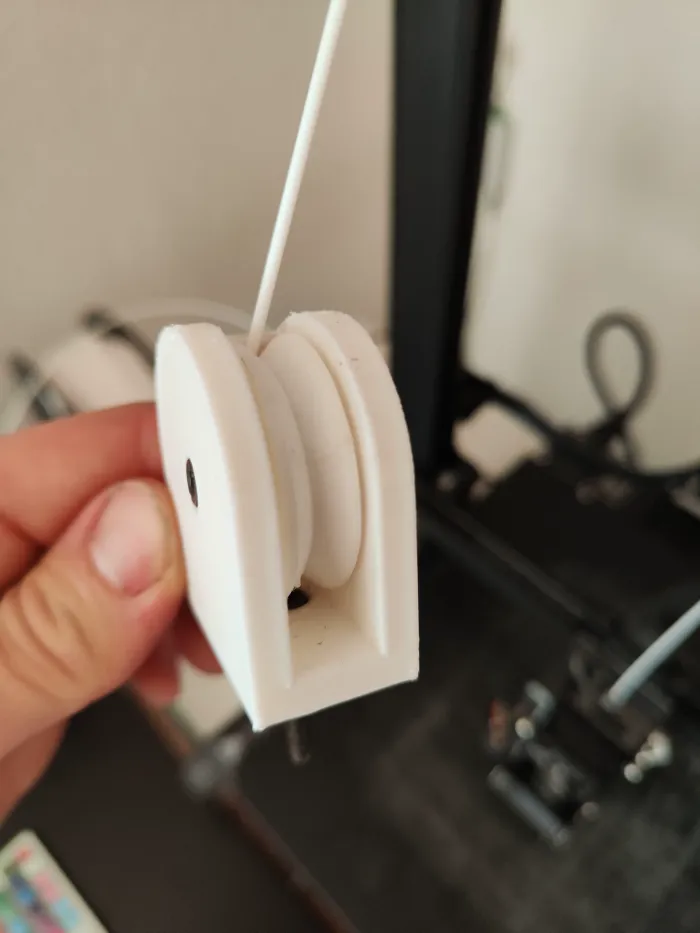

This is a model that works with the bearing wheel from the Atlas Spool Holder: (Very cool design) https://www.crealitycloud.com/model-detail/616ff99e0bfa2e82df7fa57f
You junst need to download the Atlas Package and the Add-On V2 Filament Guide. Now you print the Add-On V2 and the "Roue.stl" and 2x "entretoise_roulement_v1.stl" from the Atlas Package. Then you assemble the parts and screw it in the 4mm hole in the Spatel Holder. (I recommend to not tighten the bold, for rotation of the guide.)
Additional parts needed:
1x Skateboard Bearing
2x M4x20 Cylinderhead Screw
2x M4 Nut (with additional washer)
