**checkout v2 here :) https://m.crealitycloud.com/zh/model-details/639e0f815ce55c4765e9f0aa**

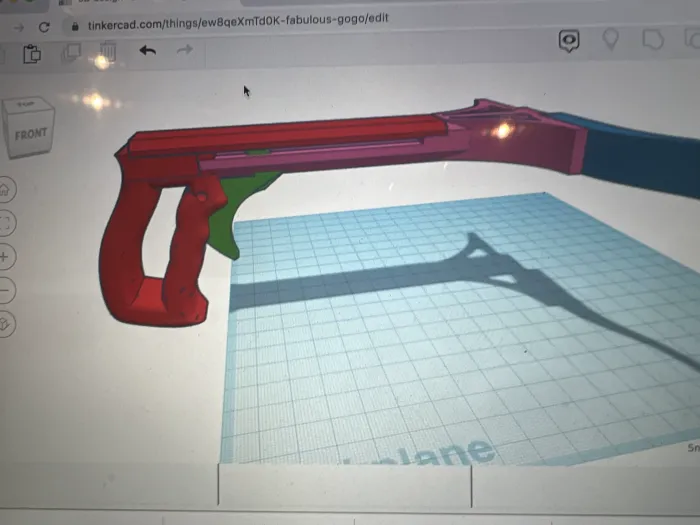

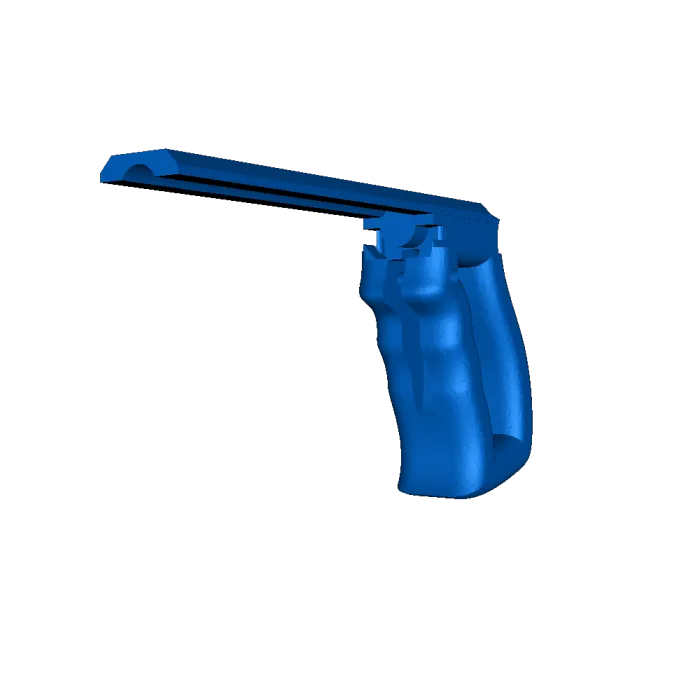

Designed from scratch (almost). I borrowed the handle. It was the last part and I was tired.

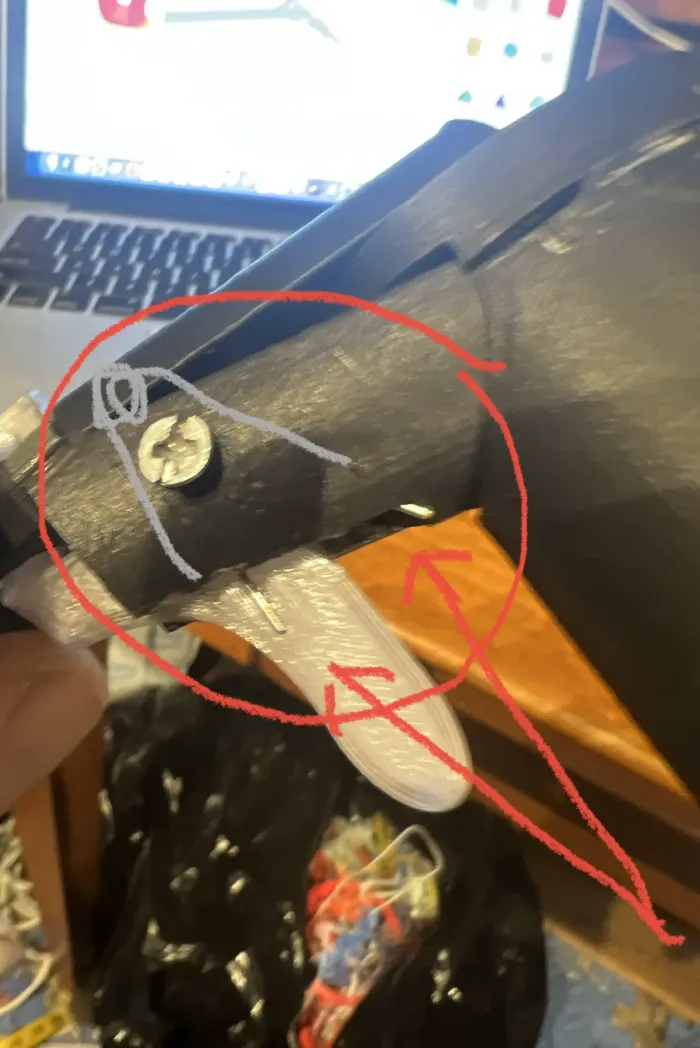

You’ll need a safety pin (cut ends) for the trigger spring a screw or stud for the trigger hinge and superglue to put it together.

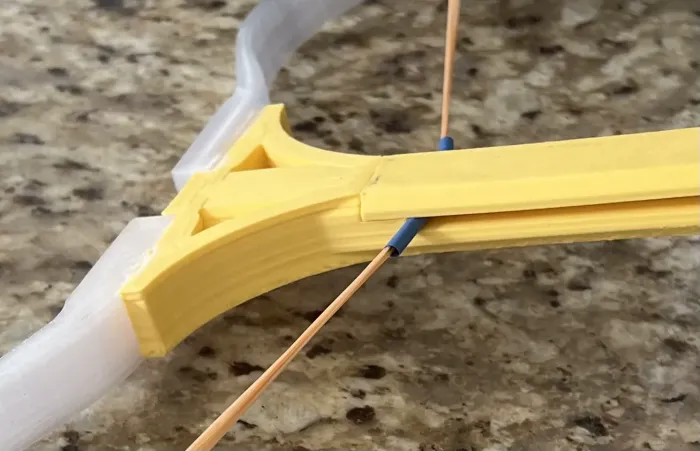

I used 3 regular rubber bands and a piece of plastic tube in the center.
** I used PETG for the bows for more bounce/elasticity. Recommend that or ABS and didn’t try PLA so might be fine **
Works fine with string but not as strong. Rubber cord or similar would probably work best.

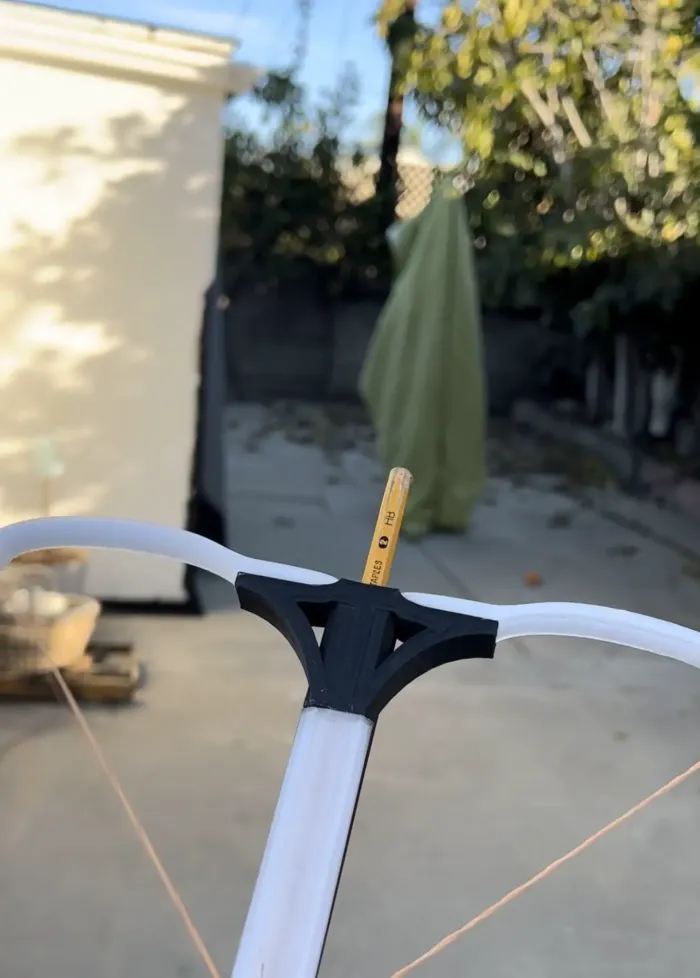

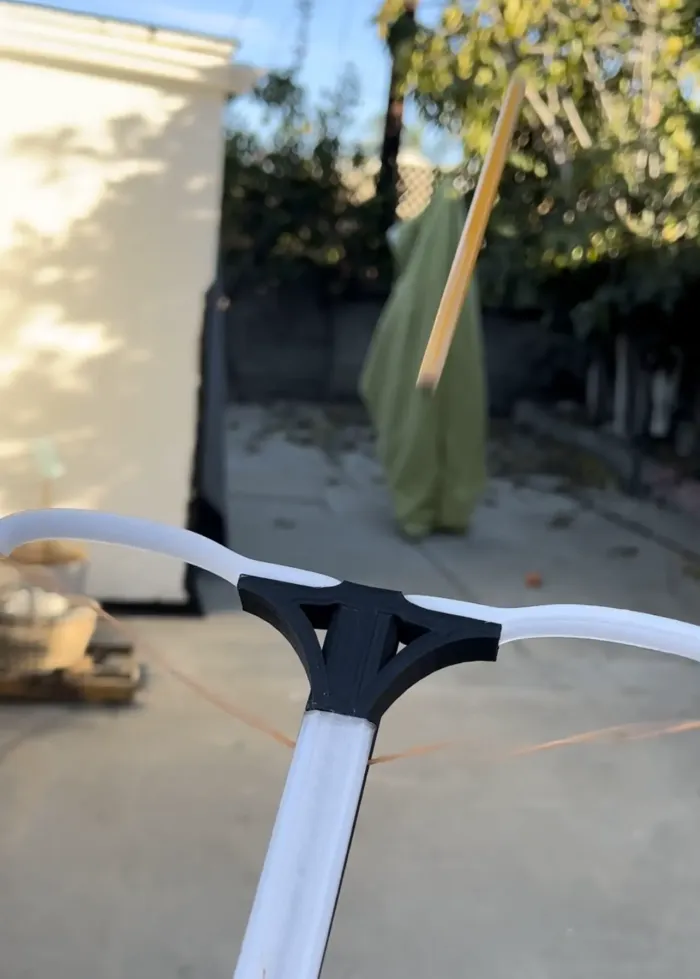

Incredibly accurate. Straws with a bit of weight (piece of eraser) in the top shoots about 50ft.
Keep your arrows light and slightly weighted on the top.
Updates coming:
New original handle
Assembly holes - no more superglue
Longer slide - more power
Updated bow shape - more spring
Aiming sights
4 files
