DESCRIPTION

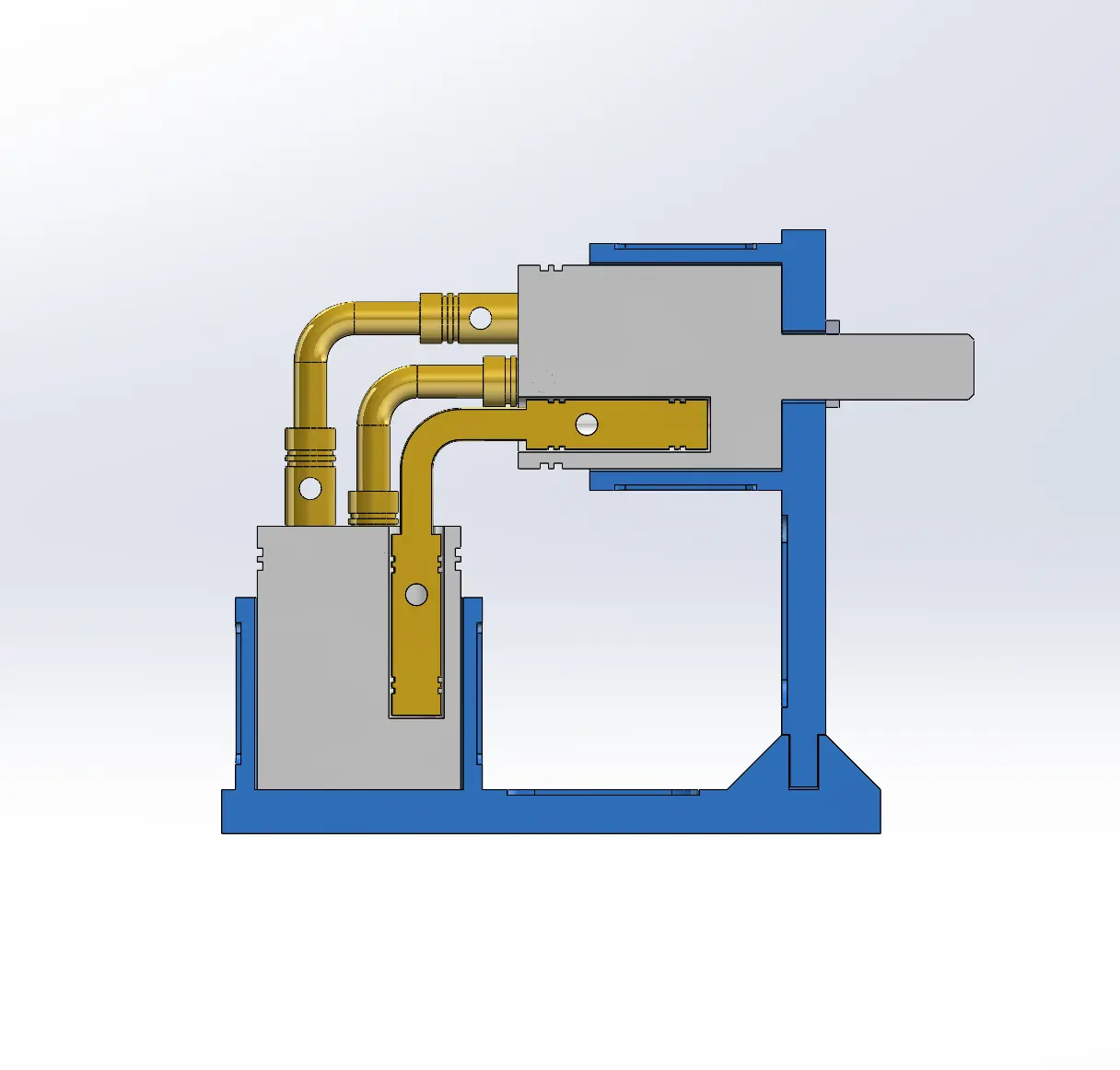

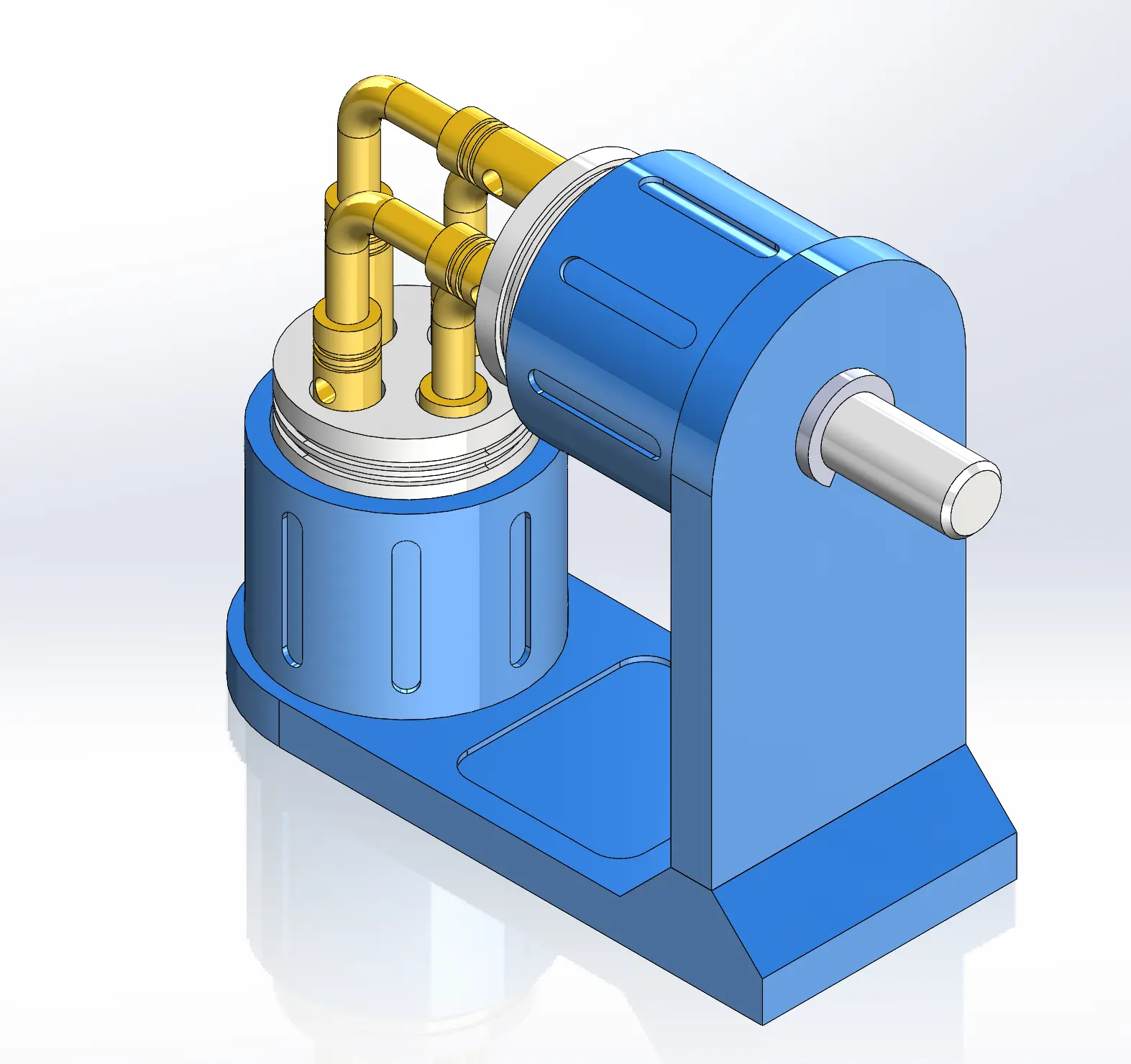

The rotational piston mechanism can be exploited in some applications to transmit the kinetic energy of 90 degrees. It is made with multiple parts to enjoy the assembly end to have the possibility to combine different colors.
ADDITIONAL INFORMATION

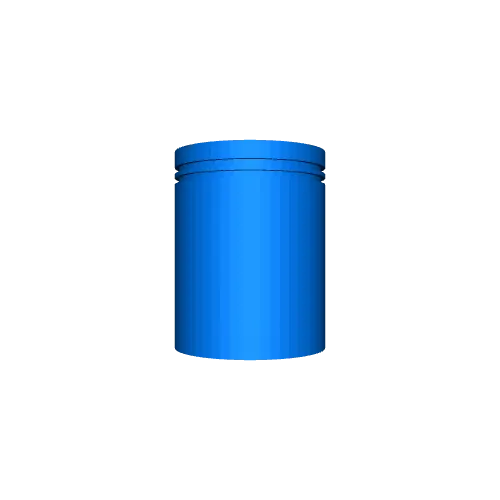

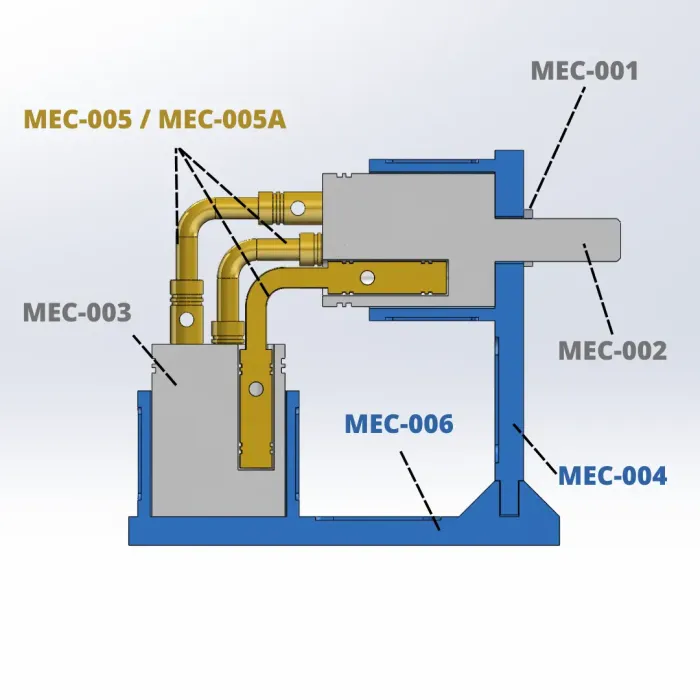

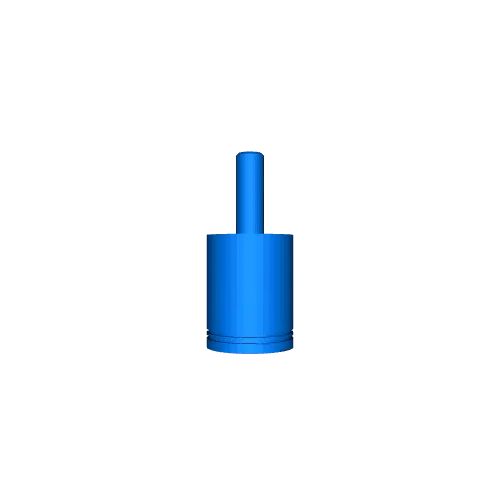

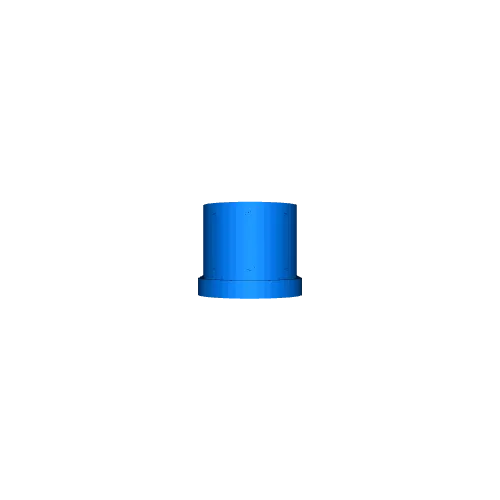

- To assemble the first thing you need is to do is putting the four pistons inside the cilinders and after you can insert them inside the part MEC-004 and MEC-006 that can be linked together with the socket and the bottom.
- Use the part MEC-001 to block the sliding between MEC-002 and MEC-004
- If you have troubles with MEC-005, you can substitute it with MEC-005A
YOU NEED TO PRINT
- 4x -> MEC-005, and MEC-005A
- 1x -> All the others
WHO I AM
I am a mechanical engineer and in my free time I like designing mechanical parts and mechanism. If you enjoyed my designs, you can find my complete collections on:
- Patreon https://www.patreon.com/PrintingMechanismsByDani
- Cults3d https://cults3d.com/en/users/Printing_Mechanisms_byDani/creations
- Creality Cloud https://www.crealitycloud.com/user/5484218151
3D PRINTING SETTINGS
Nozzle diameter 0.4 mm
Layer height 0.2
Infill 15%
Do not print with suports the part MEC-002 and MEC-003 in order to not compromise the sliding between the pistons and the cilinders
