Bounding box: ( X, Y, Z in mm)
Size: 70.80, 118.28, 25.80
To resize according to your needs and desires.
Prints the largest flat area on the print bed.
Does not need printing supports.
Suggested printing material: prefer PETG for long term resistance, but PLA should be usable.
Suggested slicing settings:
Initial layer height: 0.3mm or 0.2mm
Layer height: 0.2 mm
wall thickness: for good resistance, prefer a value of at least 1.2 mm
Filling density: for good resistance, prefer a value of at least 30%
Type of adhesion to the print bed: skirt (to properly prime your filament) or in the event of an adhesion problem, a border that you will need to deburr in post-printing.

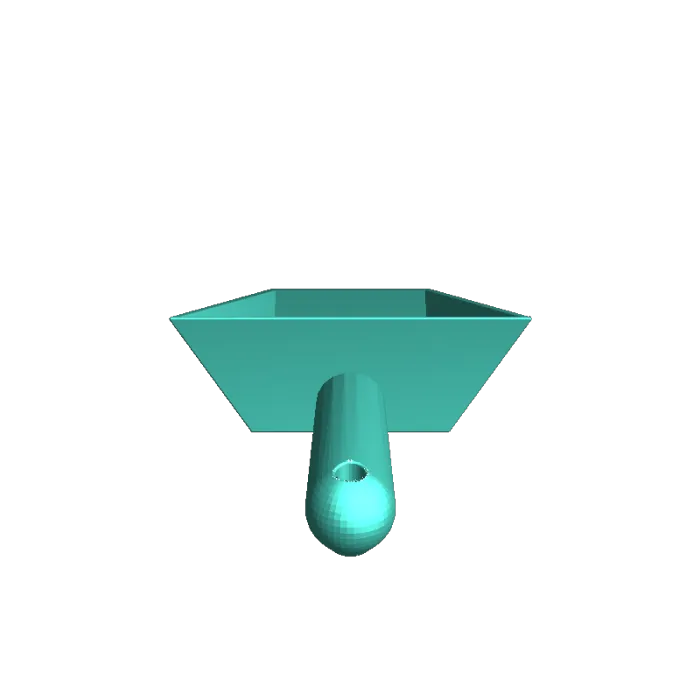

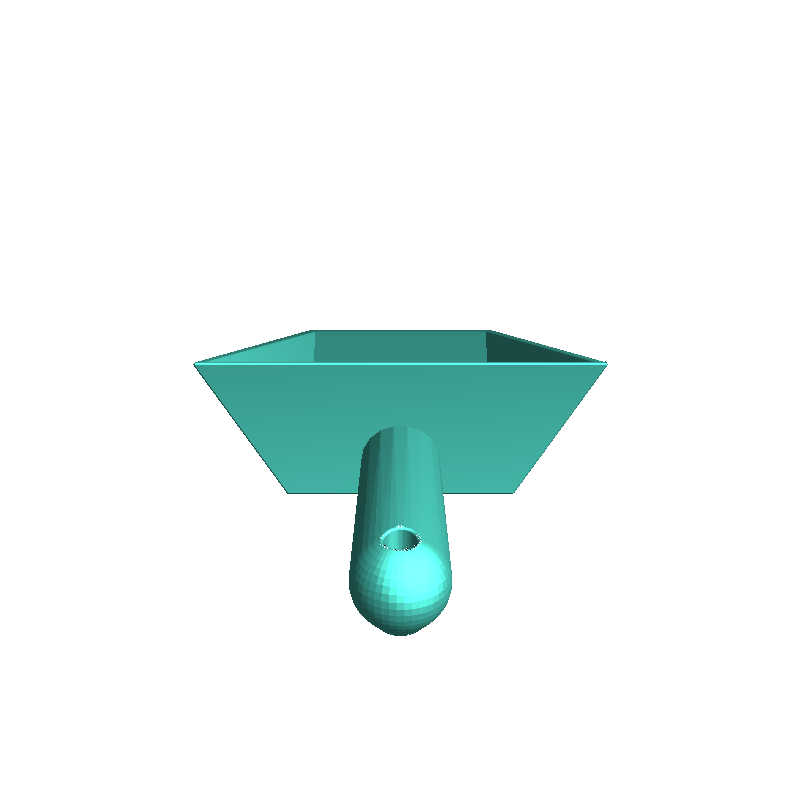

Made with OpenScad (Can be regenerated with other dimensions on request in the comments)
If you have criticisms or suggestions do not hesitate to leave a comment.
