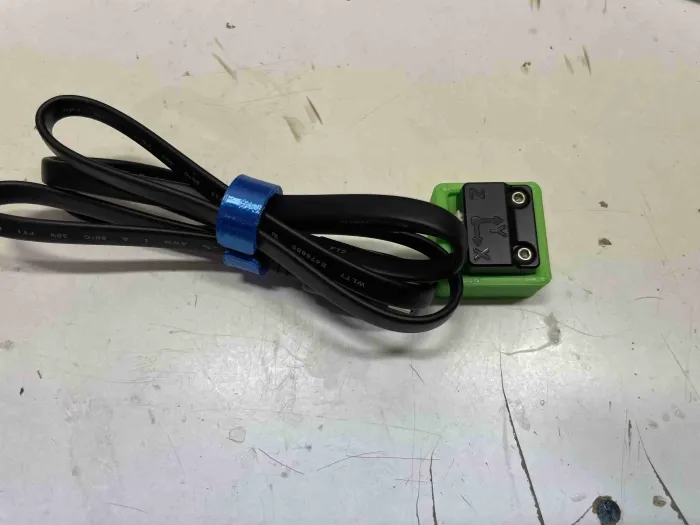

Sonic Pad Sensor Holder Magnetic

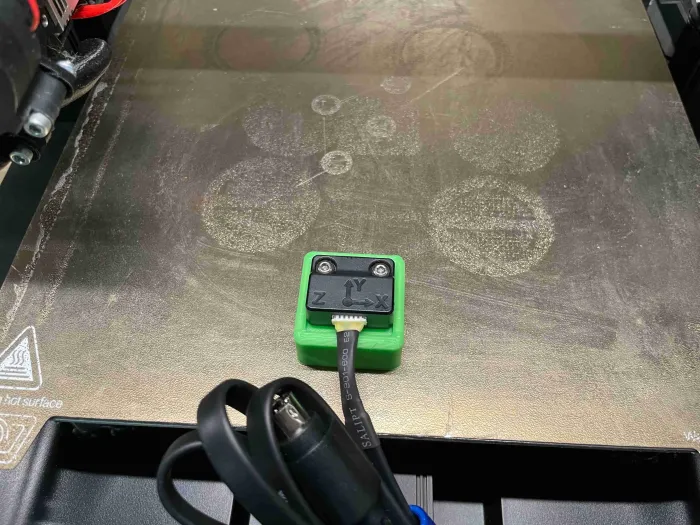

The holder can be equipped with a commercially available office magnet so that the holder stays clean on the print bed and can be quickly mounted and removed again.

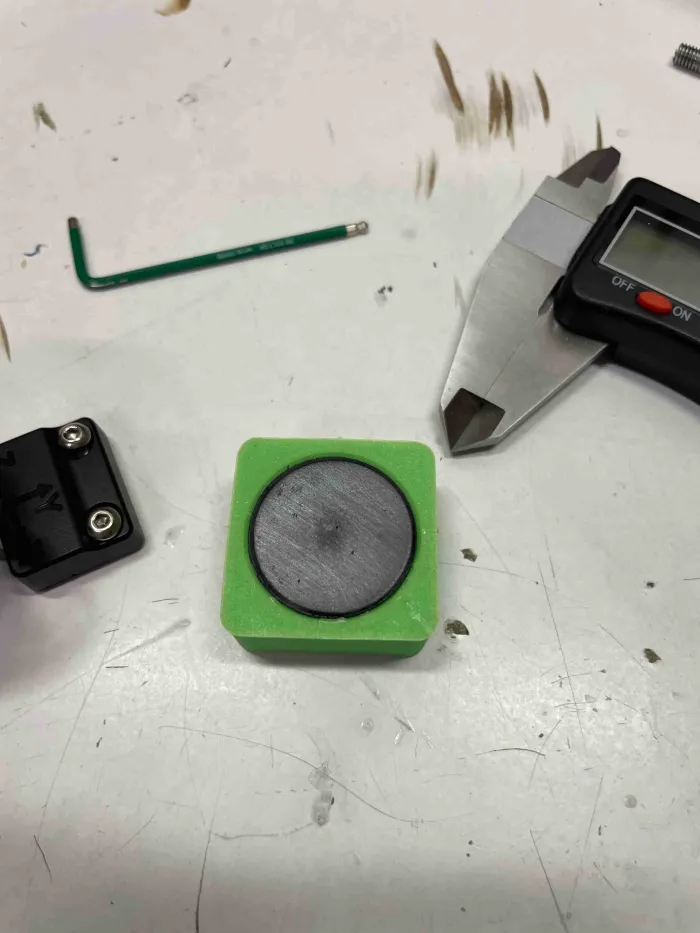

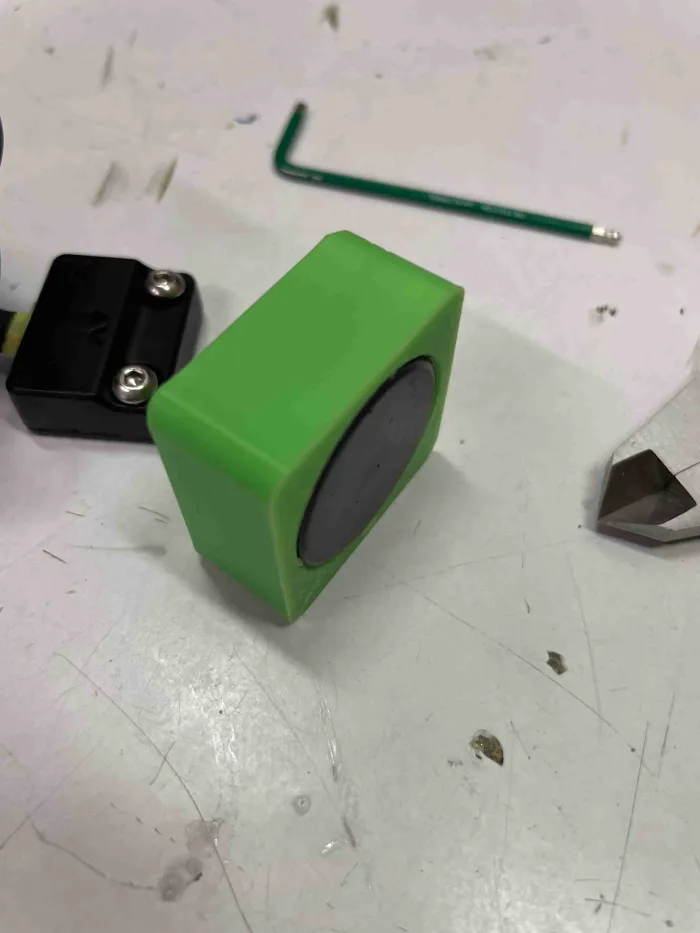

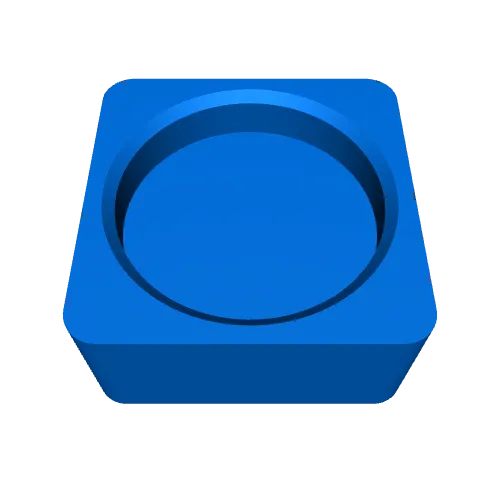

Simply stick the magnet into the round opening on the back of the holder using superglue. The inside diameter of the hole for the magnet is 24.8mm.

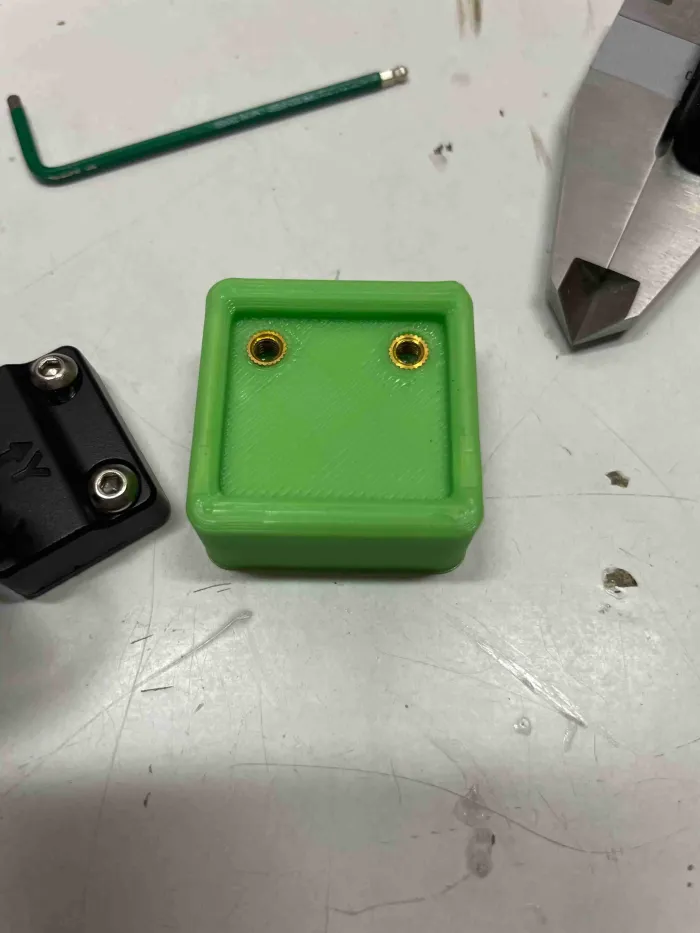

To attach the sensor on the front side, you have various options such as gluing it in or screwing it on with the melt-threaded sleeves installed. You can also use the prefabricated M3 thread and then screw it on with the M3 screws that are included with the Sonic Pad. How you feel best.
I printed the sensor holder in Peek Green PLA+ from eSun, with a layer height of 0.2mm and an infiltrate of 25% because I still had threaded sleeves left, it was better to melt them in.

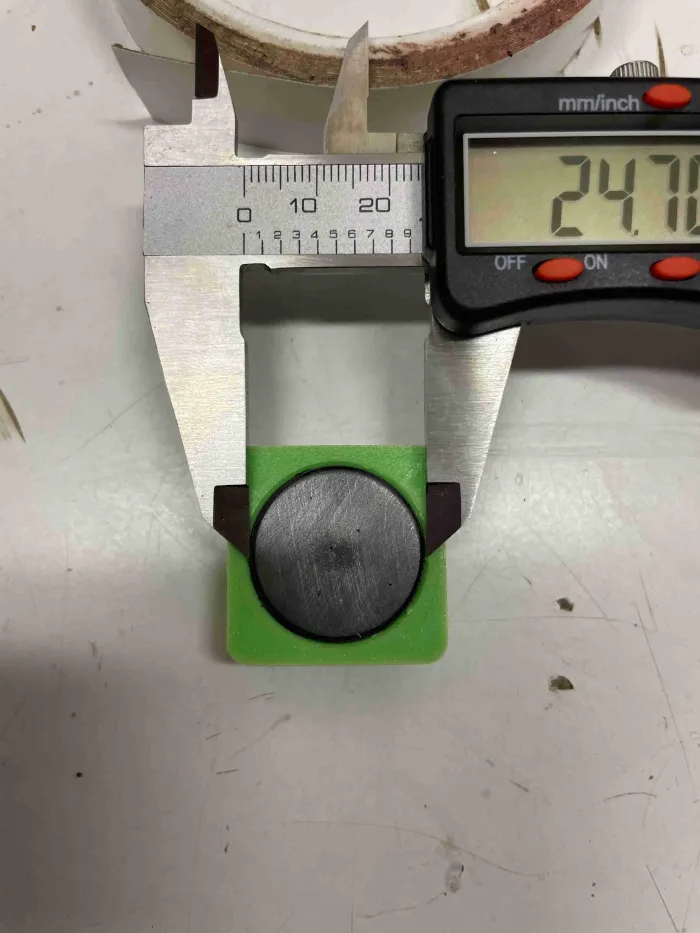

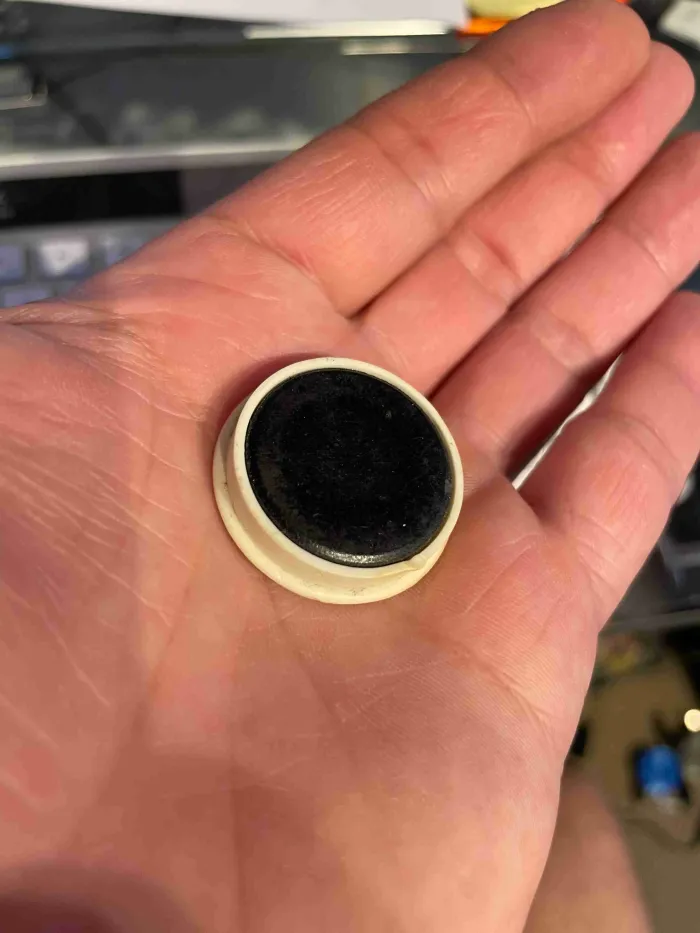

Info: The magnet I used has a diameter of 24.7mm and a height of 5mm
Have fun
