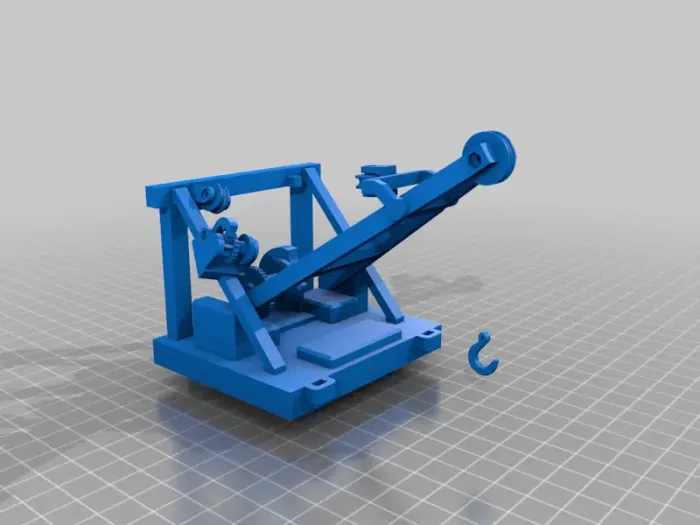

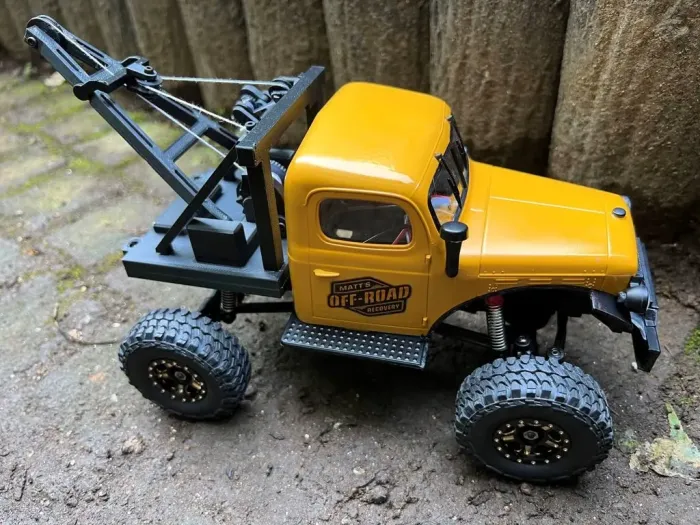

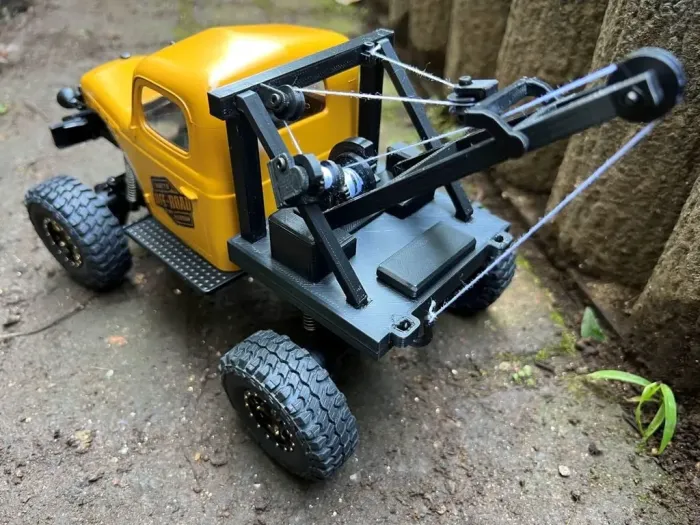

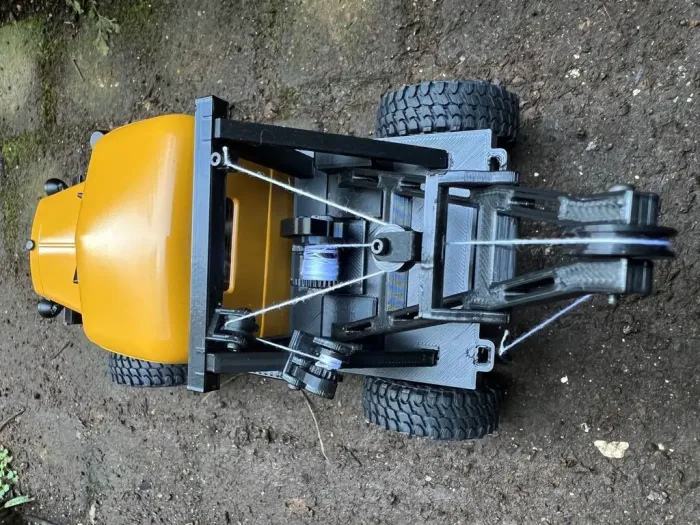

FMS FCX24 Power Wagon wrecker truck inspired by Matt's Offroad Recovery’s world's biggest offroad wrecker, with man-powered winch.

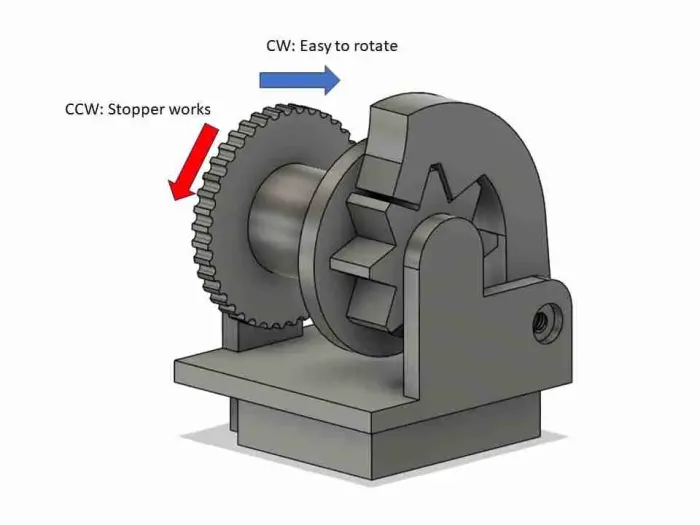

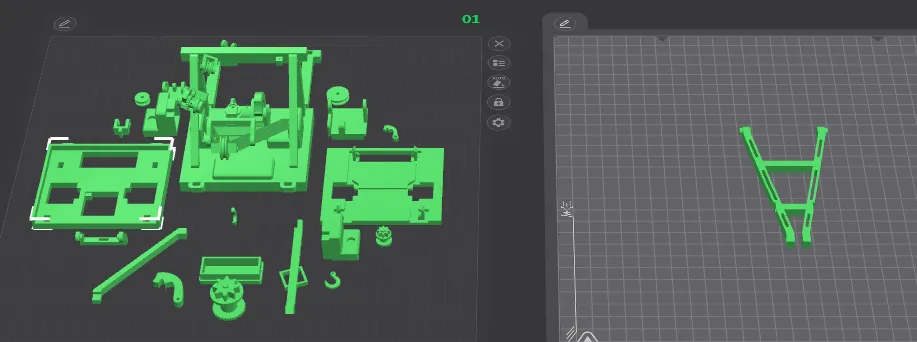

1. Slicer setting for winch gears (both L and S), select "concentric" for top/bottom pattern.
2. Widen the pulley and stopper holes with a 2 mm drill bit.

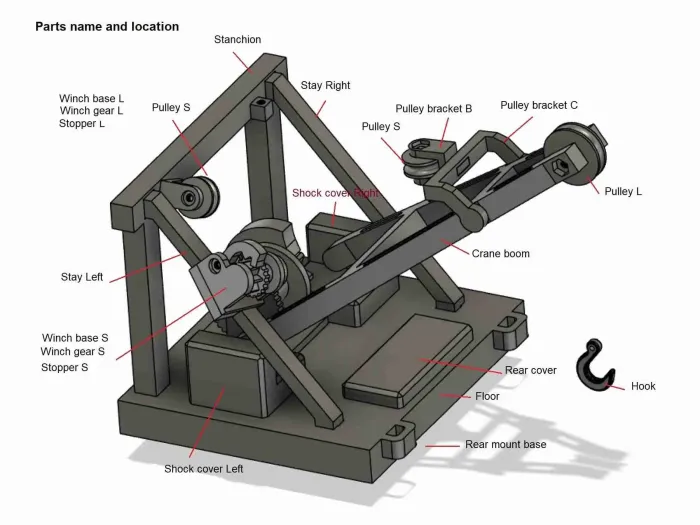

3. M2 bolts and nuts are needed to install following parts;
- Pulley L: 14mm M2 bolt and nut
- Pulley S: 10mm M2 bolt and nut
- Stopper L: 12mm M2 bolt and nut
- Stopper S: 6mm M2 bolt
- Stanchion: 4mm M2 bolt to tie off the end of the crane wire
4. For the crane wire, use thin, strong wire like that used for beadwork.
