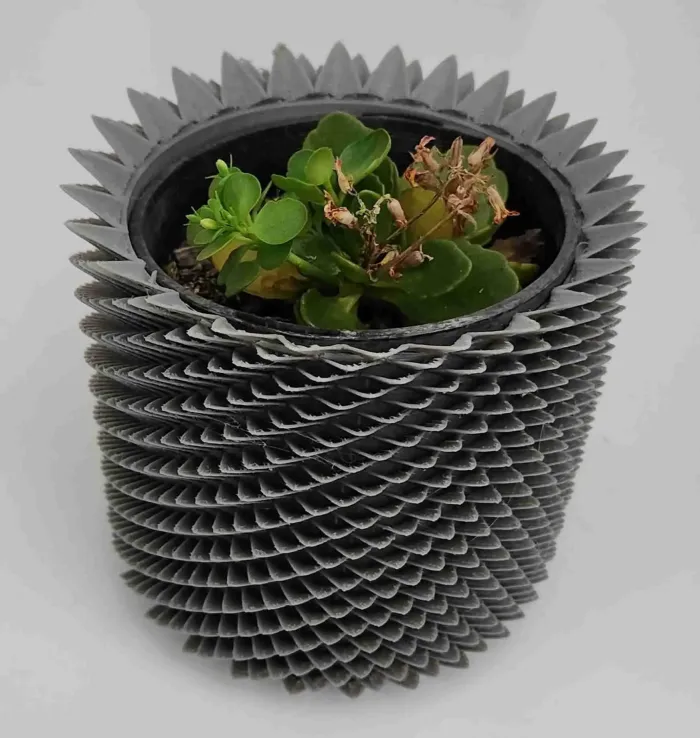

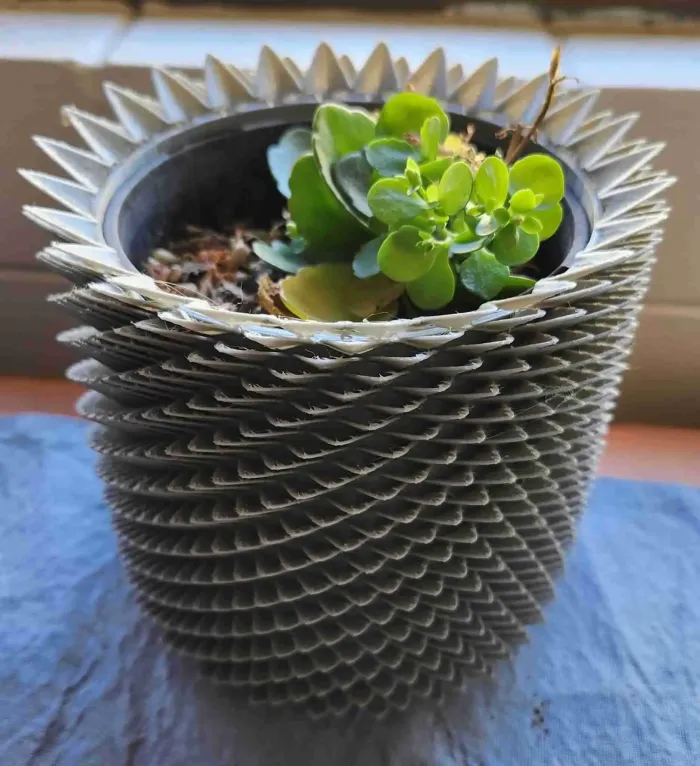

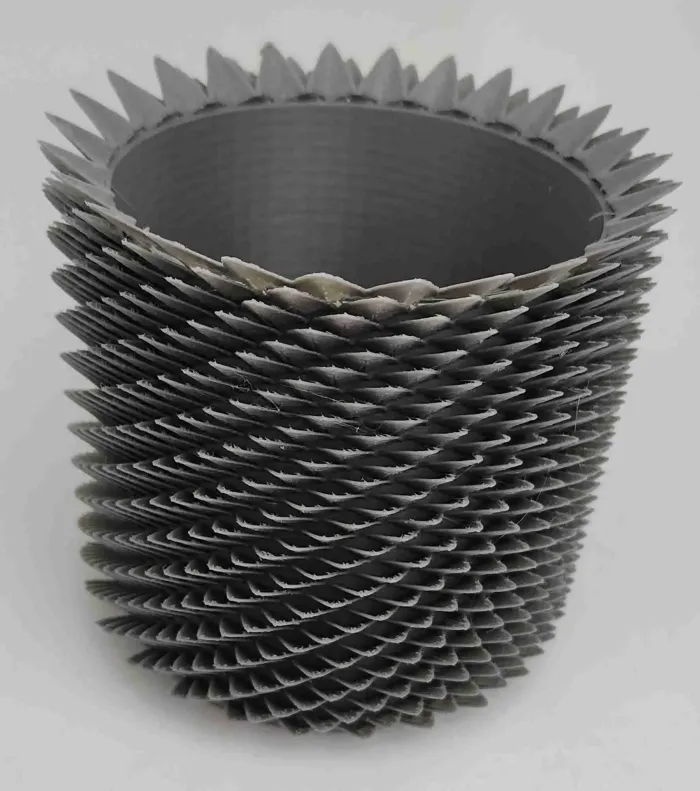

Succulent Style Pot Plant Holder
This is my entry for the potholder design competition.
My design was inspired by the leaf of a succulent plant as well as the rotating patterns of some succulent species.
I first designed the individual leaf to the shape and style I like and used that to repeat in a rotating pattern around a cylinder using Tinkercad.
Dimensions:

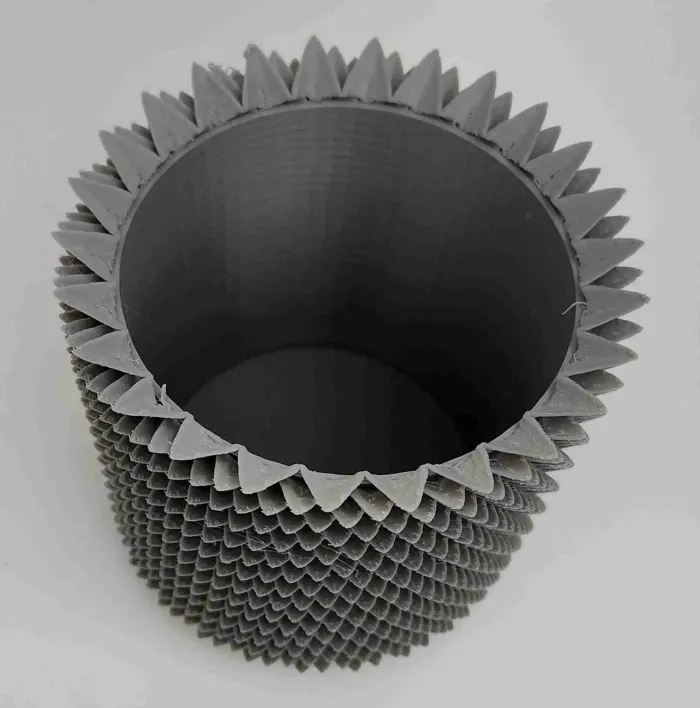

Internal pot side is 130mm Deep and 120 mm in diameter.
External Dimensions 141.1mm High 150.9mm in diameter.
The design can be printed without support.
3 Parameters to ensure sufficient waterproofing.
Infill: 10%
Layer 0.2
I have printed in PLA as for inside use, use a more heat resistant filament (PETG/ABS if using outside)
I have printed layer heigh 0.25 using Sonic Pad Ender 3 S1 Fast Profile with no issues.
