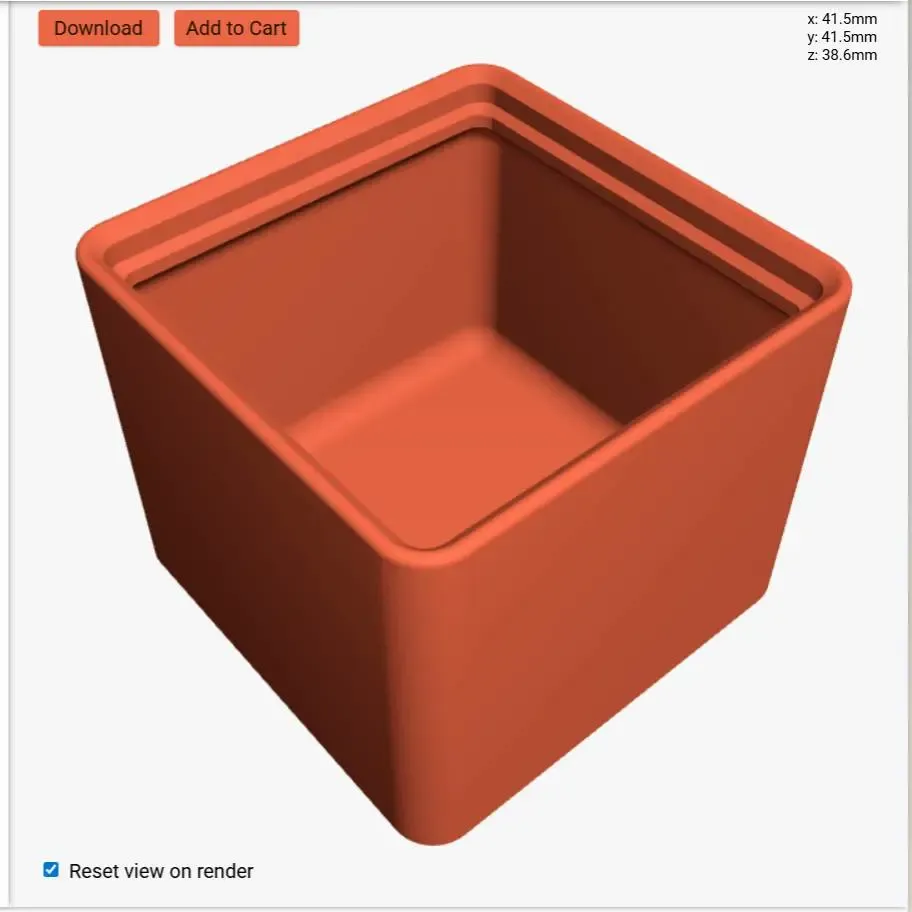

The selected model is a Basic Bin, configured as a single-cell (1×1) bin with magnet holes, a stacking lip, and standard wall thickness. The bin preview shows a square, open-top container with rounded outer corners and an internal stacking lip near the top.

Model Section (Top Left)

Models

Basic Bin (selected): A standard open-top bin.

Baseplate: Likely used to generate a Gridfinity-compatible baseplate.

Vase Mode Bin: A thin-walled variant optimized for vase/spiral printing.

Parameters Section (Detailed)

Grid & Size Parameters

Grid rows: 1

Number of Gridfinity units in the front-to-back direction.

Grid columns: 1

Number of Gridfinity units in the left-to-right direction.

Height: 5 (7 mm units)

Bin height is defined in increments of 7 mm, which is standard for Gridfinity.

Total height = 5 × 7 mm = 35 mm (excluding lip details).

Grid base size: 42 mm

The standard Gridfinity base dimension per grid unit (42 mm × 42 mm).

Structural Features

Stacking lip: ☑️ Enabled

Adds an internal lip near the top edge so bins can stack securely on top of one another.

Wall thickness: 0.95 mm

Thickness of the bin’s vertical walls. This is relatively thin and optimized for material efficiency while remaining printable.

Magnet & Mounting Options

Magnet style: Magnet holes

Generates cylindrical holes in the base to accept magnets.

Magnets on corners only: ⬜ Disabled

If enabled, magnets would only be placed at the four corners instead of all grid positions.

Screw holes: ⬜ Disabled

No screw holes are added for mechanical fastening.

Magnet hole crush ribs: ⬜ Disabled

When enabled, adds ribs inside magnet holes to friction-fit magnets without glue.

Chamfer magnet hole: ⬜ Disabled

Would add a chamfer to magnet holes to ease magnet insertion.

Printable hole tops: ⬜ Disabled

When enabled, creates a bridgeable cap over magnet holes so they can be printed without supports.

Magnet radius: 3 mm

Radius of the magnet hole (corresponds to a 6 mm diameter magnet).

Magnet depth: 2.05 mm

Depth of the magnet hole, suitable for thin disc magnets.

Fastener Option

Thumbscrew: ⬜ Disabled

No thumbscrew-compatible hole is generated.

Bin Configuration

Bin style: Standard

A normal open bin (as opposed to specialty bins like scoops or dividers).

Sub-bin rows: 1

Internal subdivision count along one axis (no internal dividers in this configuration).

gf-rebuilt-bin-1x1x5-s1x1-Standard
