Reflector Mounting Bracket for Angwatt C1 Max (or 15mm Bar)

This 3D-printed bracket is designed to securely mount a standard rectangular red reflector on an Angwatt C1 Max electric scooter or on any 15 mm diameter bar.

It provides a clean, solid, and durable mounting solution while keeping the reflector perfectly aligned for maximum visibility.

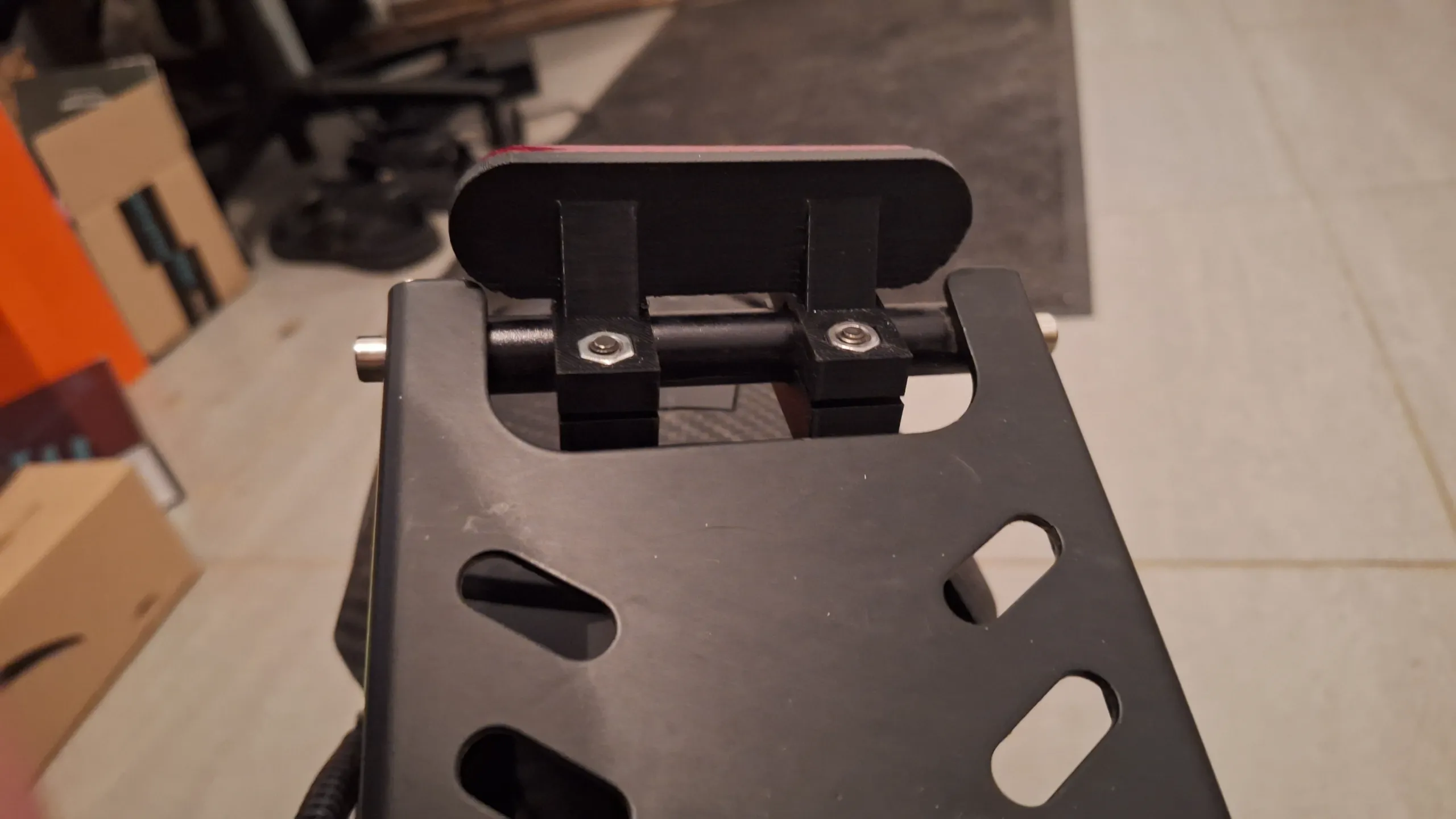

The design consists of a sturdy clamp system that firmly holds the bar using screws and nuts, while the reflector is fixed to the front face using a self-adhesive backing.

✅ Features

Designed specifically for Angwatt C1 Max

Compatible with 15 mm bars

Strong and vibration-resistant clamp

Clean and compact design

Ideal for improved rear visibility and safety

📦 Printing Recommendations

Material: PETG (recommended for outdoor use and durability)

Supports: Yes – supports must be enabled

Print orientation: The orientation shown in the slicer screenshot is strongly recommended to ensure proper strength and clean geometry.

Layer height / infill: Standard settings work well; increase infill if extra rigidity is desired.

🔩 Hardware Required

- 4 × screws + nuts

Thread diameter: 6 mm

Screw head diameter: 10 mm

Nut diameter: 10 mm

- 1 × self-adhesive round edge reflector (catadiopter) 96 mm x 24 mm

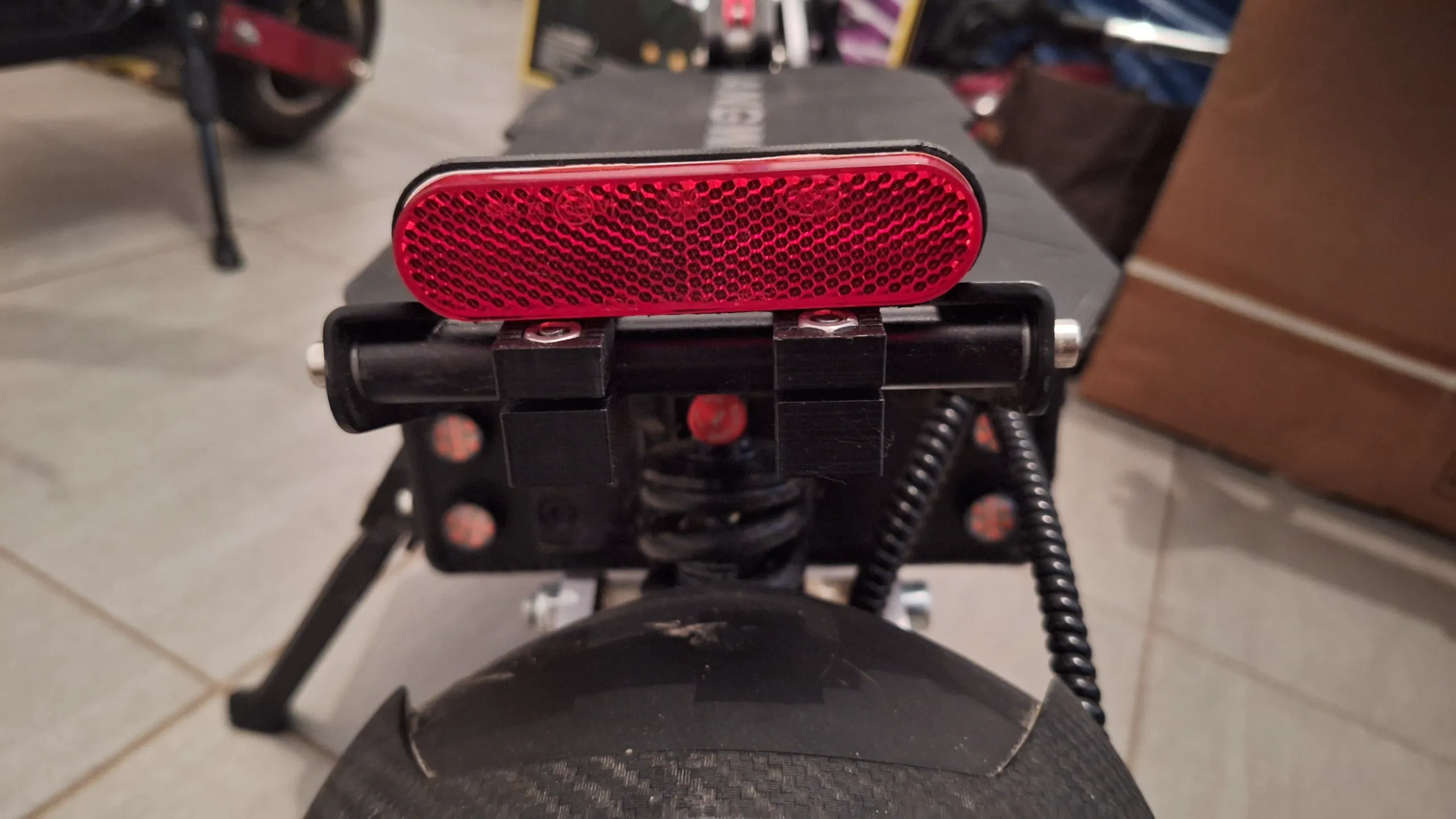

The reflector shown in the image is required and is glued directly onto the flat front surface of the bracket.

🔧 Assembly Instructions

- Insert the hex nuts into the dedicated slots on the clamp body.

- Place the bracket over the 15mm bar on your scooter.

- Insert the screws and tighten them evenly until the mount is secure. Do not overtighten to avoid cracking the plastic.

- Clean the flat oval surface with alcohol.

- Peel the backing off the reflector and stick it firmly onto the mount.
