D3P RISER FOR THE K2 PRO by Darren 3d Print

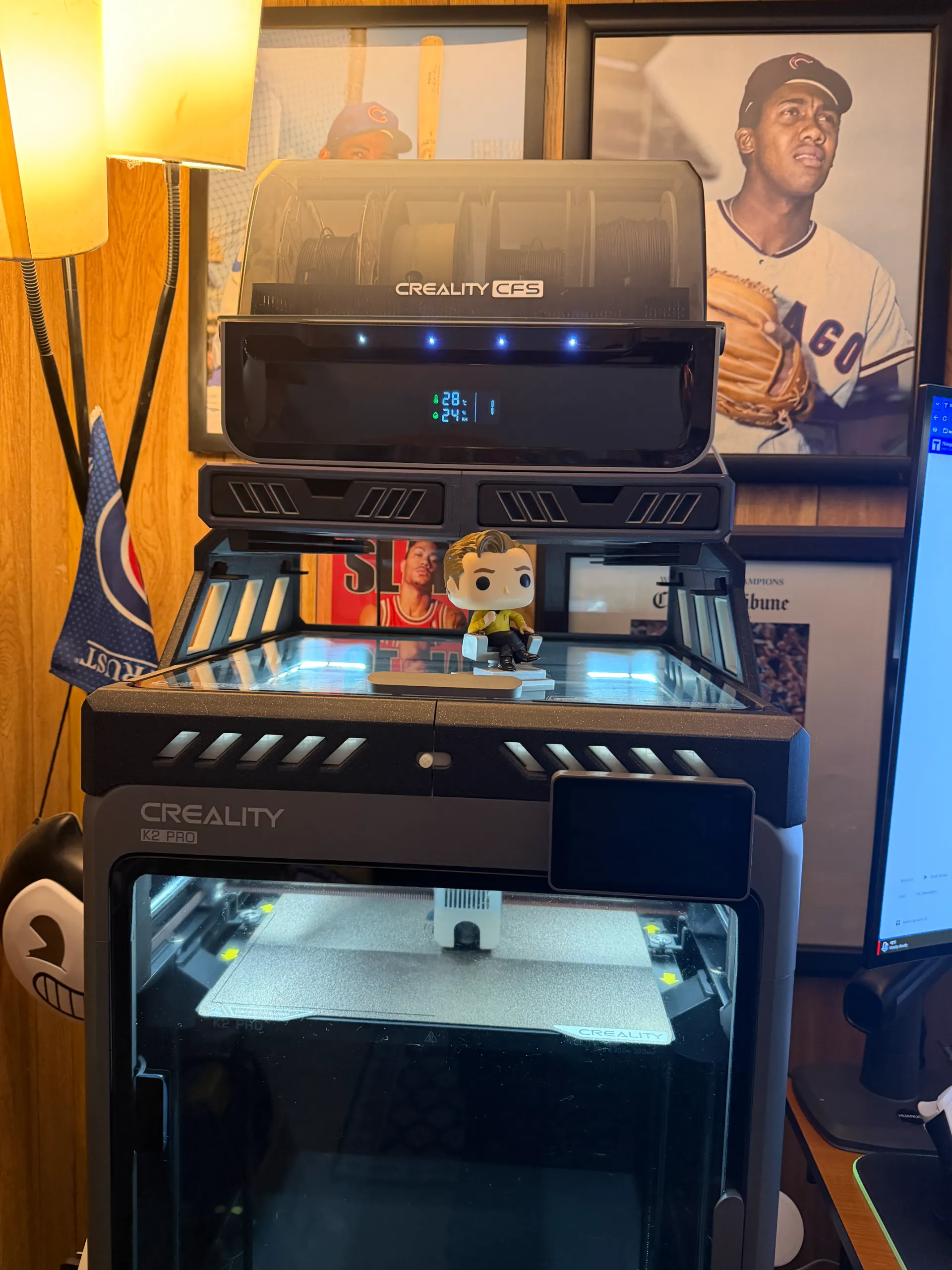

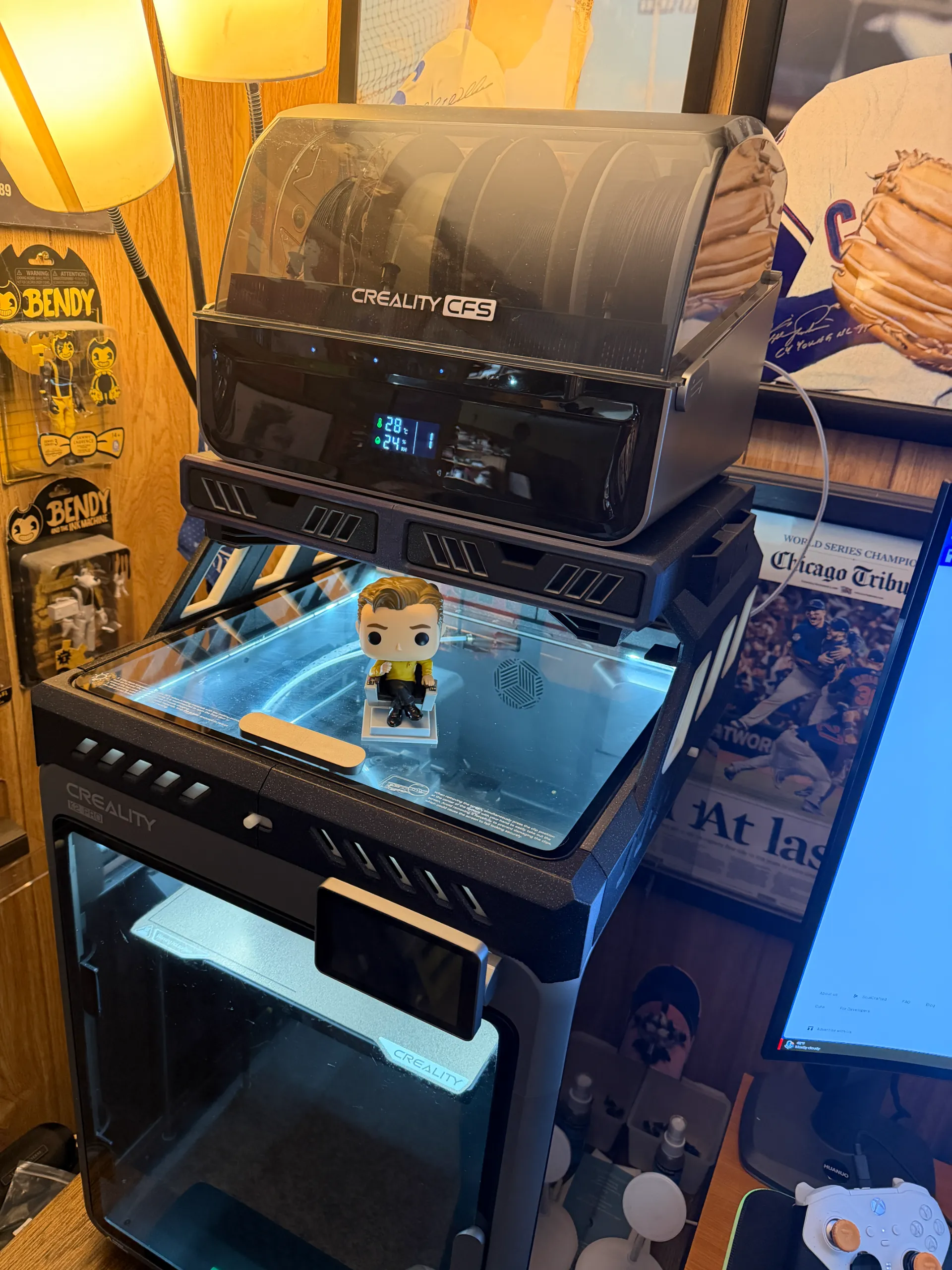

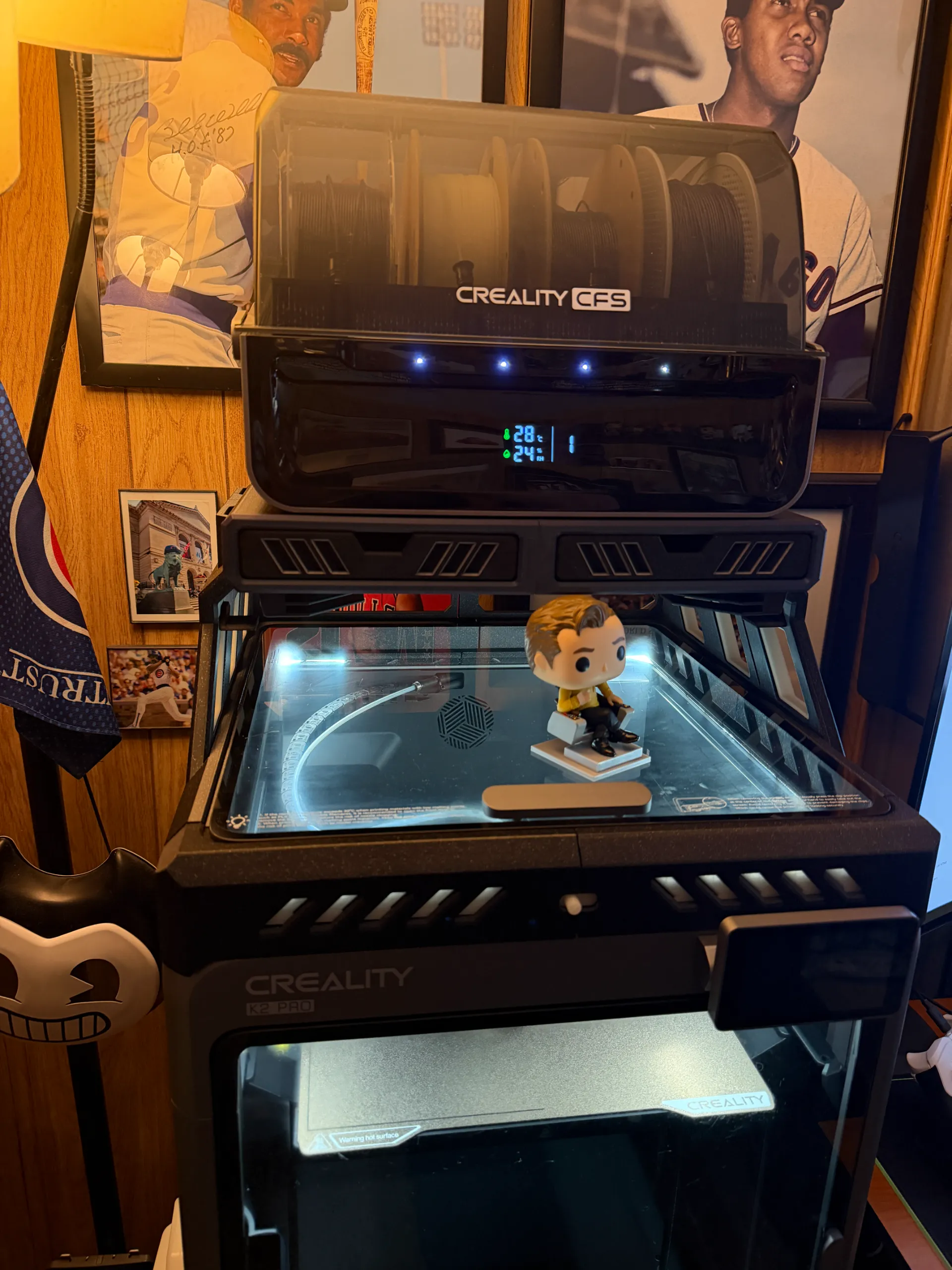

Having designed a number of risers, I wanted one that offered it all, was modular for customization and also could be easily upgraded in the future. The result is my D3P riser system.

The D3P riser system is an innovative and modular riser system for your 3d printer. It features numerous free to download add-ons allowing you to customize your printer and riser like you want. The design of the D3P riser system is patent pending.

FEATURES

Features of the D3P riser system:

• Front and side adjustable vents;

• Add-on extensions for dual CFS units, single, dual or Quad Space Pi dryers;

• Side shelf for single spool dryer

• Innovative COB LED channels that feature brackets to secure the LEDS in place;

• Top unit is set back to allow easy access to the printer from the top;

• Sturdy and reinforced construction and design to prevent sagging;

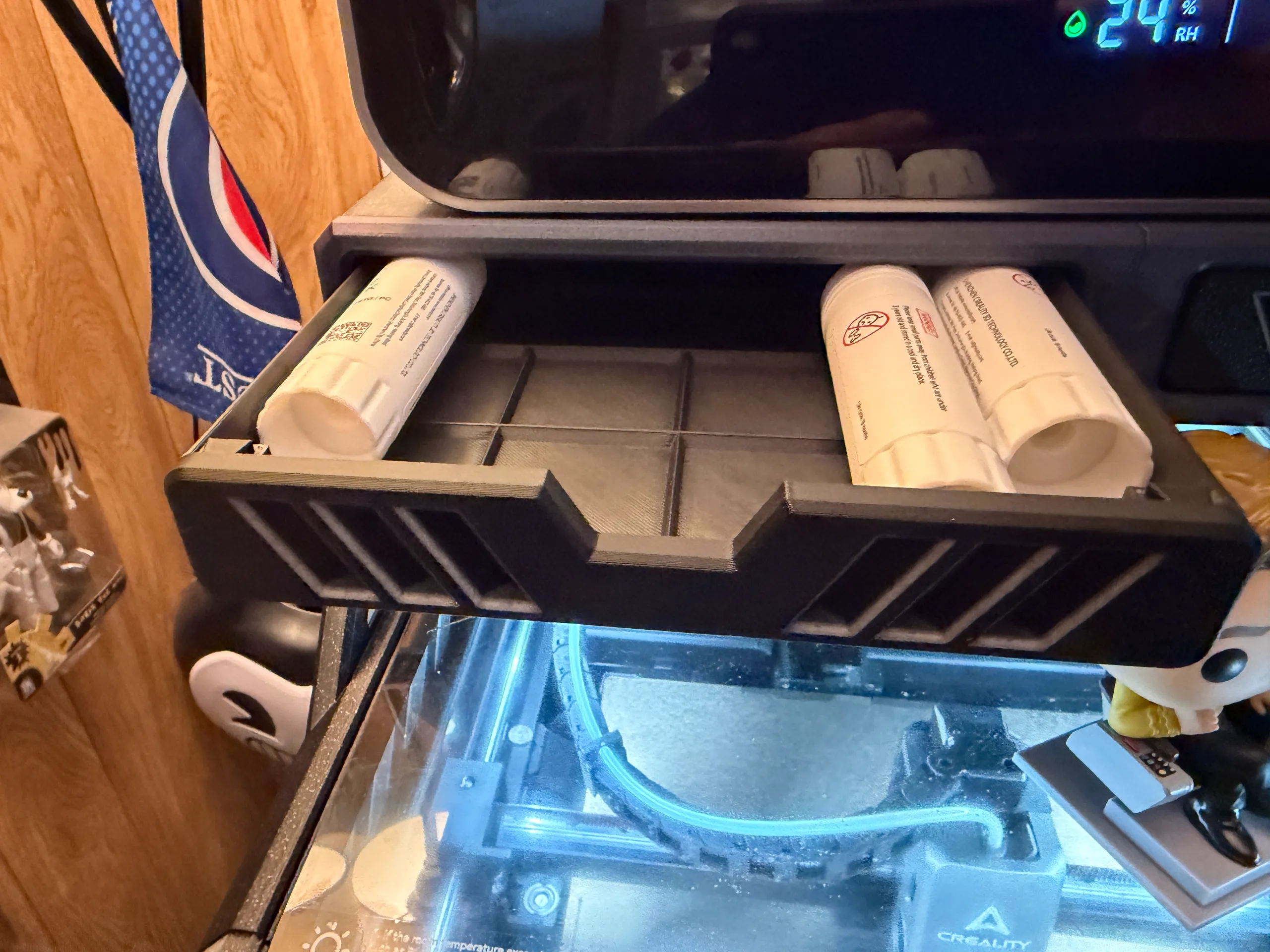

• Two large storage drawers with gridfinity style drawer inserts;

• Integrated build plate holder for two build plates;

• Integrated lid holders;

• Multiple add-ons such as a modular tool tray, interchangeable external spool holder and more to come;

• Detailed pdf instructions with pictures and steps;

• Printing requires little or no support.

INTELLECTUAL PROPERTY

This work is licensed under the standard digital file license. You are prohibited from sharing, sub-licensing, selling, renting, hosting, transferring, reproducing or distributing the digital file or 3d printed versions of this object, as well as any other derivative work in either digital or physical form (including remixes or copying/reproducting the design by any means).you are not allowed to use the objects in any manner that involves charging money or collecting fees without permission.

A patent has been filed for the D3P riser design and it is patent pending. I thank you for your understanding.

ADD-ONS

The links are for K2 Pro D3P riser add-ons. Some of the addons also work for other models so the model page may indicate a different riser or printer.

All add-ons are free to download. Presently, the following add-ons are available.

New - TPU Spool holder - sideholder by GummyNotGumby

TPU Spool Holder - Side holder

New Rear cable management and buffer holder

Rear cable management and buffer holder

New Led switch holder by mac 486

D3P Riser led switch holder

New CFS buffer bracket by mac486

D3P K2Pro CFS Buffer relocator

Multiboard adapter

Multiboard adapter

Side mounted build plate holder

Side mounted build plate holder

Space Pi TPU Tray

Space Pi TPU Tray

Single dryer side shelf

Single dryer side shelf

TPU top mount spool holder

Top mount TPU spool holder

CFS extension shelves

CFS shelf extensions for K2 PRO D3P Riser

Single Pi shelf extension shelf

Single Space Pi shelf extension

Dual Pi extension shelf

Dual Space Pi extension

Modular tool tray

Modular tool tray

Interchangeable external spool holder

Interchangeable spool holder

Custom drawer inserts

Drawer inserts - Custom and Generic

Quad Space Pi Extension shelf

Quad Space Pi for K2 Pro D3P riser

Folding lid handle

Folding lid handle

TECHNICAL SPECIFICATIONS

For the base riser:

Filament: 2.9 kg

Approximate print time: 3 days 15h

Height with closed CFS unit: 104 cm (41 inches)

Height with open CFS unit: 124 cm (49 inches)

EXTERNAL HARDWARE

COB Led

This is what I have used. The channel is best for 8mm wide Cob Led. Here is the link: https://www.amazon.ca/dp/B0C89MFP3Q?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_1&th=1

RS-485 cables (for CFS to printer)

If you got the combo the supplied rs485 cable will be too short if you mount the buffer on the back of the printer. You have two options. 1 Mount the buffer on the rear of the CFS - It has holes for that purpose or 2 Purchase the 150 cm rs-485 cable from Creality (about $9 usd). I prefer option 2 as it gives you more flexibility.

PRINT SETTINGS

IMPORTANT: After verification with Creality it appears that there are some issues that need to be resolved with the mobile printing app. At present it seems these may affect slicing and printing of the model. After verification, it was suggested by the Creality Cloud team to use the desktop slicing and printing software. Thank you for your understanding.

IMPORTANT I upload a print setting files for all my models. The print settings has the parts positioned for correct printing.

EACH BUILD PLATE HAS THE TYPE OF SUPPORT REQUIRED INDICATED ON THE BUILD PLATE DESCRIPTION (TREE AUTO, TREE MANUAL OR NO SUPPORT).

I strongly recommended you use my print setting file. If not, I will not be able to assist you if there is an issue when printing. From experience, many of the issues with printing my models are on account of users not using my print settings.

CHANGELOG

If there are any changes to the STL files or print settings I will list them here. I recommend looking at this section prior to printing as it is the only way I can inform users of changes.

3D PRINT SETTINGS

I use the following settings and materials to print this model:

Infill % : 15% (no need for more)

Nozzle diameter: 0.4 mm

Layer height: 0.2 mm standard

Material: PETG is suggested if you print high temp materials such as ASA or ABS or you place a dryer on the riser. ABS and ASA will also work however please ensure your printer can print these to tolerances. PLA is acceptable if you only print PLA or PETG and do not use a dryer. PLA will deform if you print high temp materials or place a dryer on the riser.

ASSEMBLY AND INSTRUCTIONS

A detailed instruction and assembly guide with steps and pictures is available for download. It is the last file in the “File” section – you may need to click expand all a few times to reach it.

Buffer location

You can mount the buffer on the back of the printer or on the CFS units. Both will work. The rs 485 cable should be long enough. If not you can purchase a 150 cm rs 485 cable from Creality for about $9 usd. Thank you.

MikesQuestLog has a great Youtube video for assembly of the K2 Pro D3P riser. You can view it here:

TROUBLESHOOTING

All parts and the assembly have been tested multiple times (both printing and assembly).

• Make sure your build properly cleaned and free of grease and oils before printing. This is the cause of adhesion.

• Make sure you use my print profiles/settings (the .3mf file that has multiple plates with all the parts) and that you enable support as indicated for each build plate on the build plate description.

• Filament and printer will affect tolerances however all should fit. If unsure proceed slowly and cautiously.

• If there are any changes I list them in a changelog on the model page. Please have a look at it prior to printing in the event there are any changes.

I am available to assist with any issues with this model.

The best way to reach me is through Facebook messenger – my user name is “Darren 3d print”.

I thank you for your support and hope you like this model.
