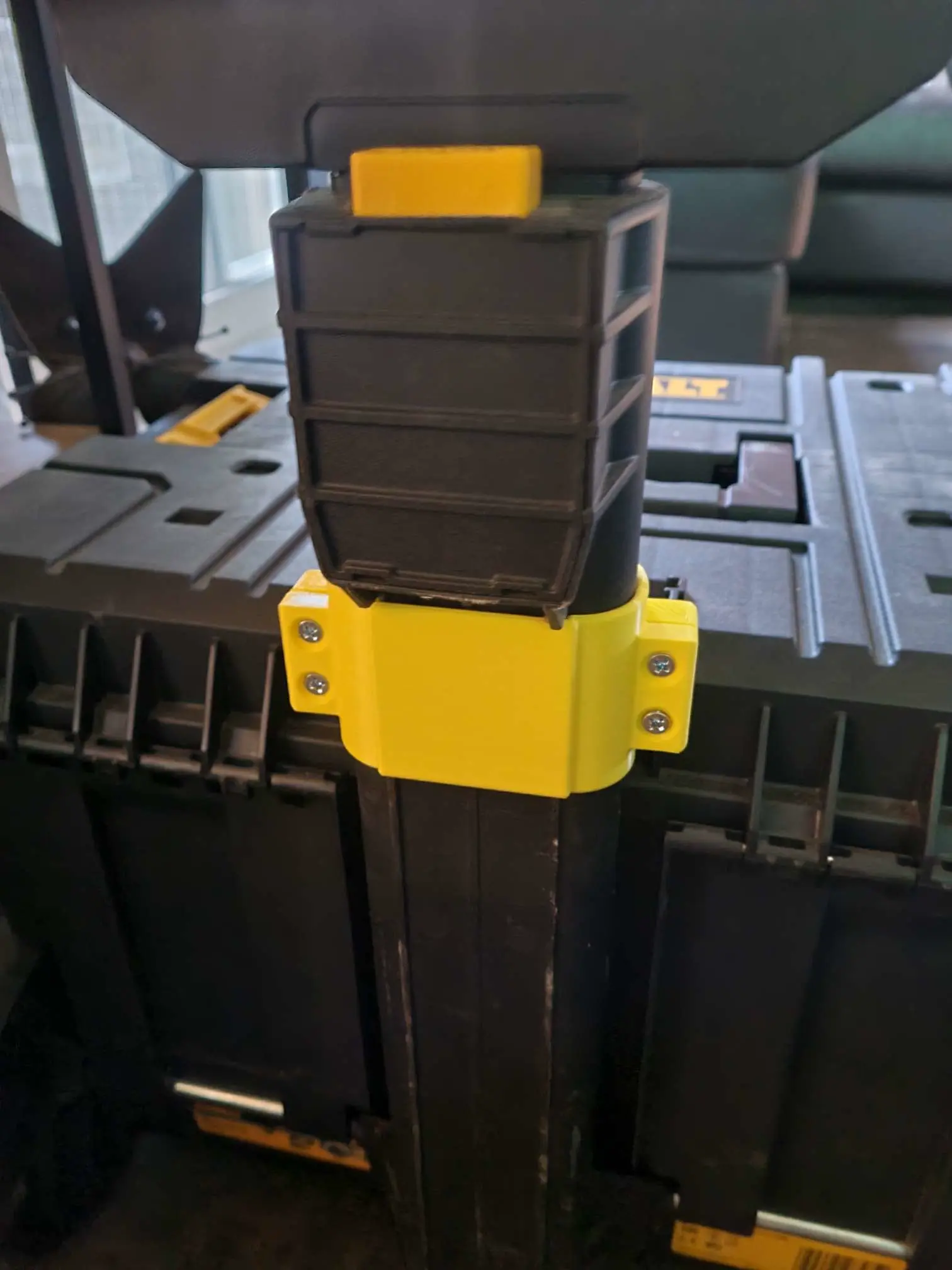

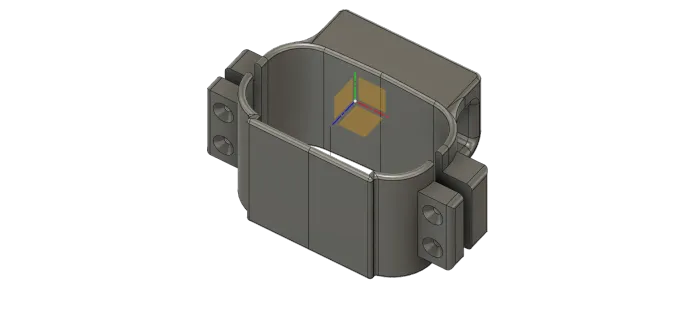

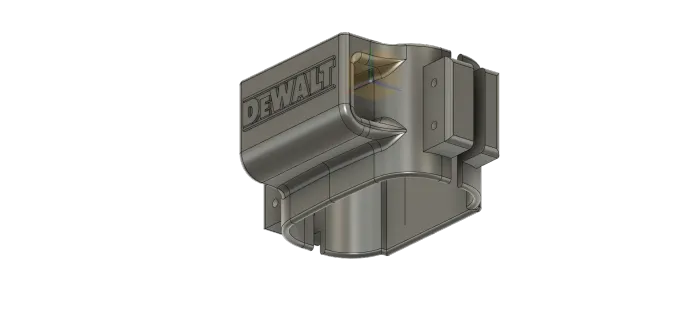

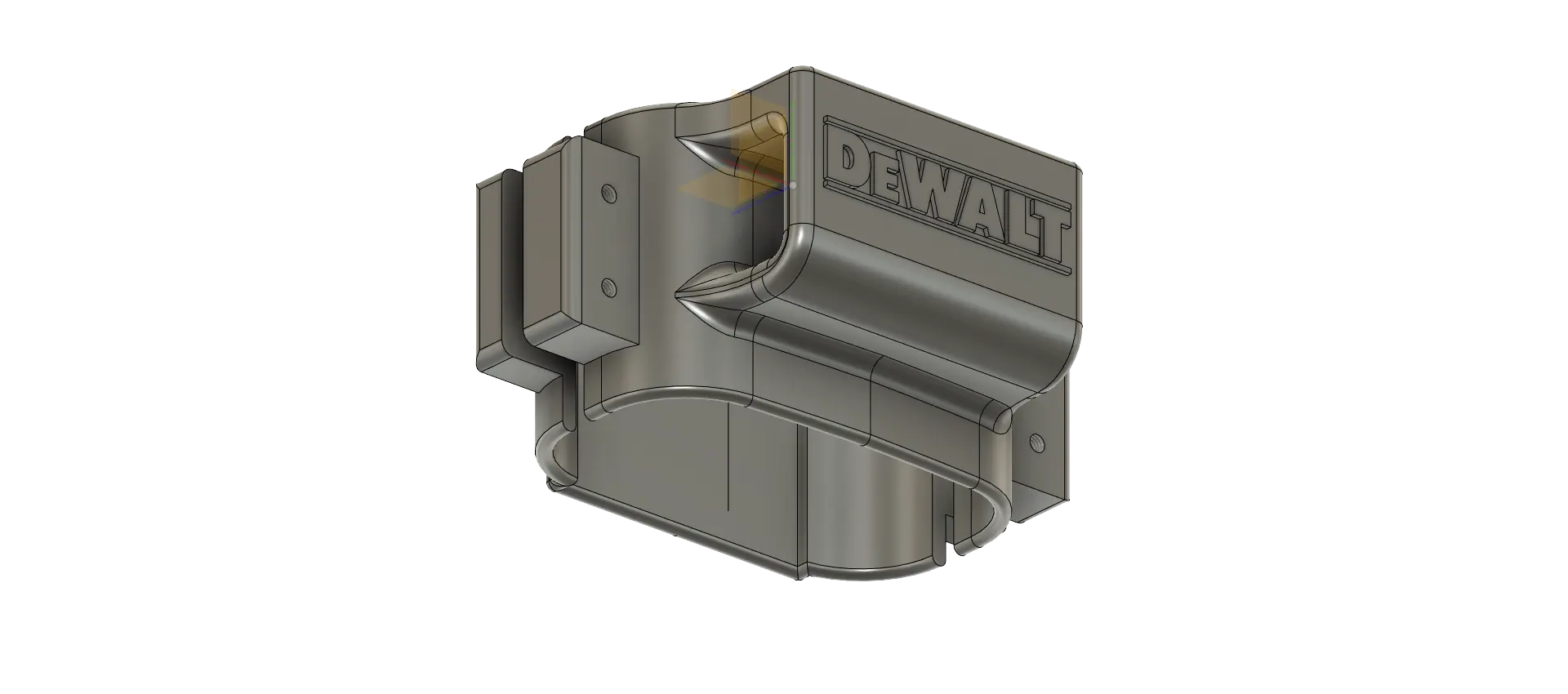

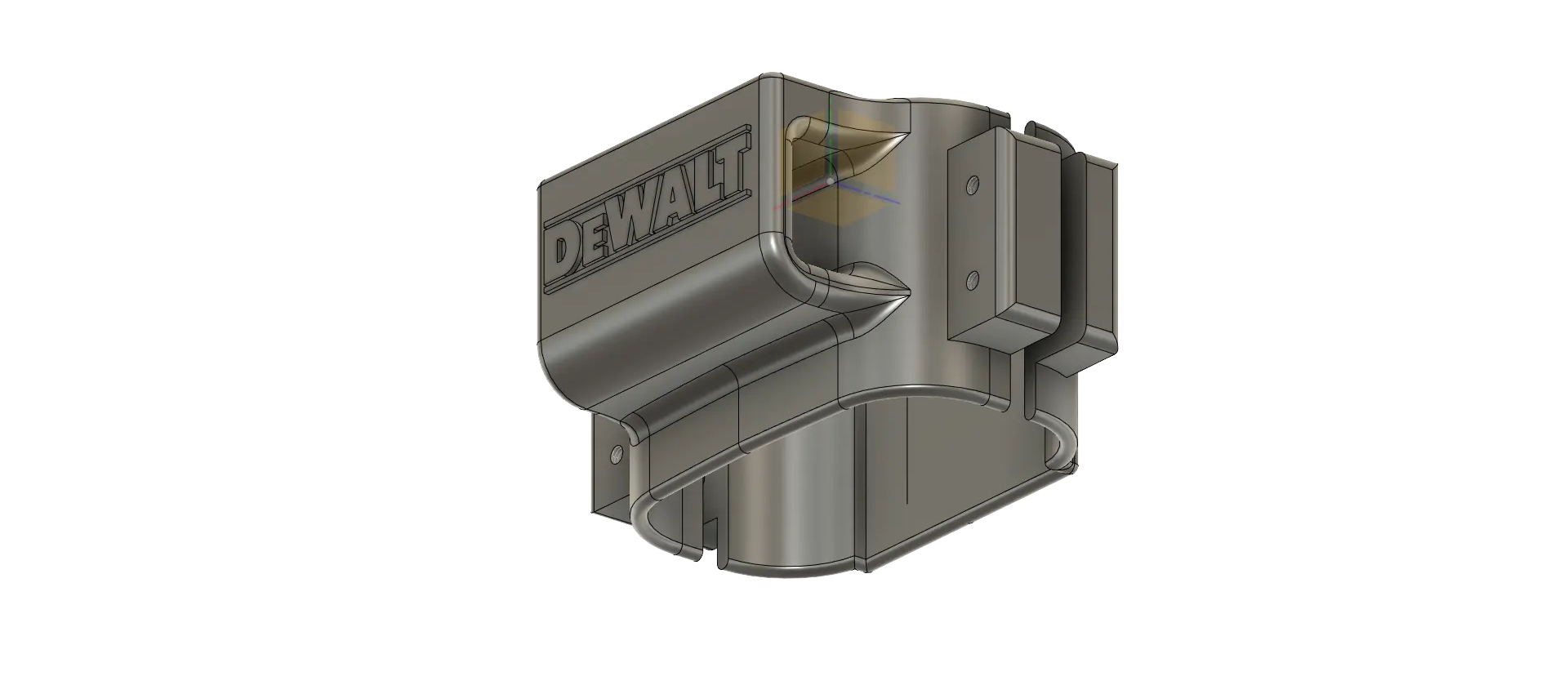

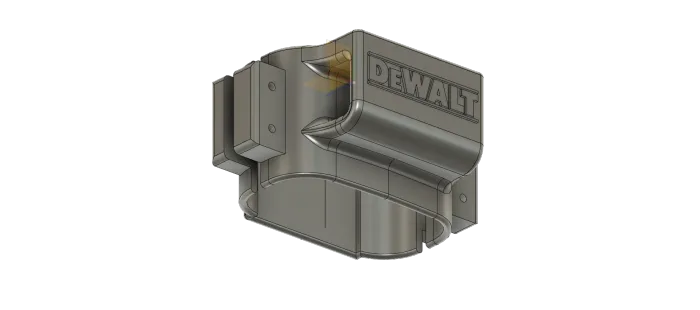

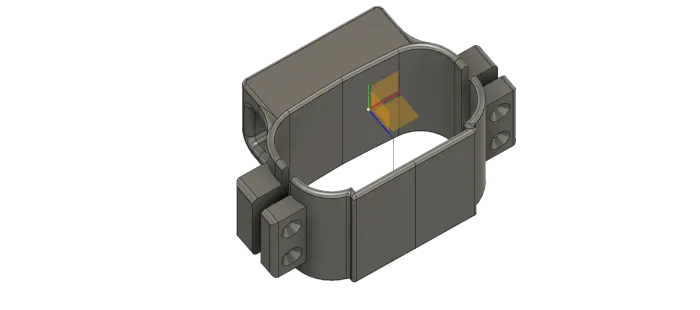

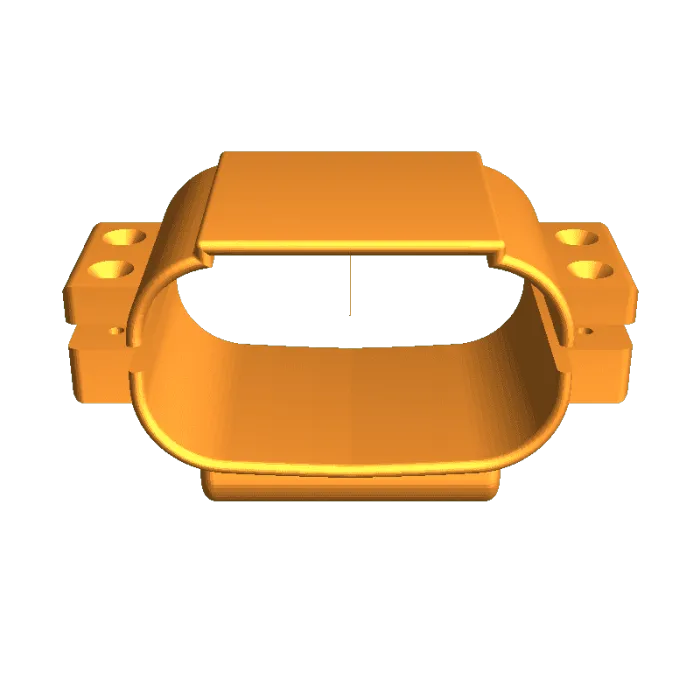

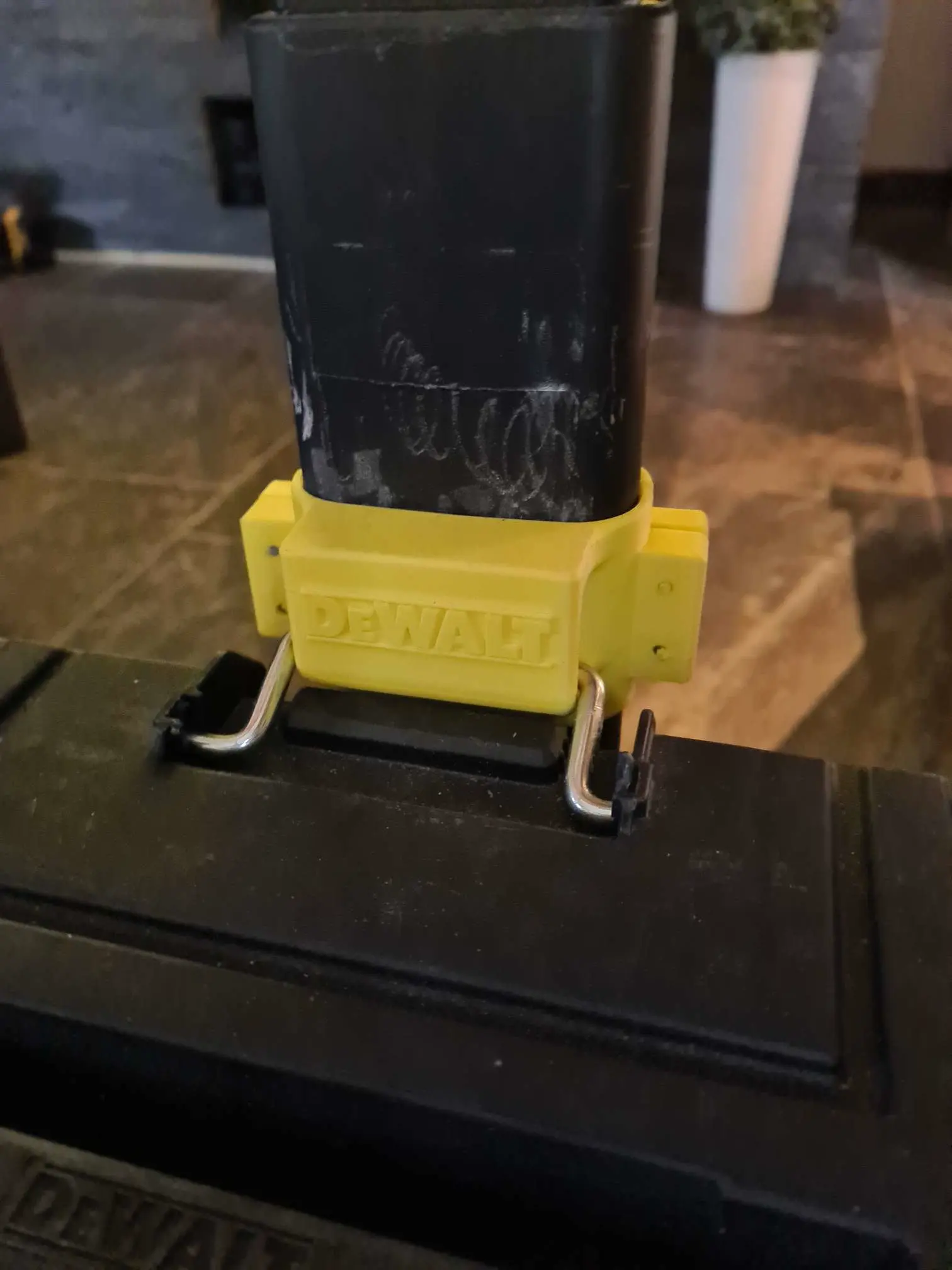

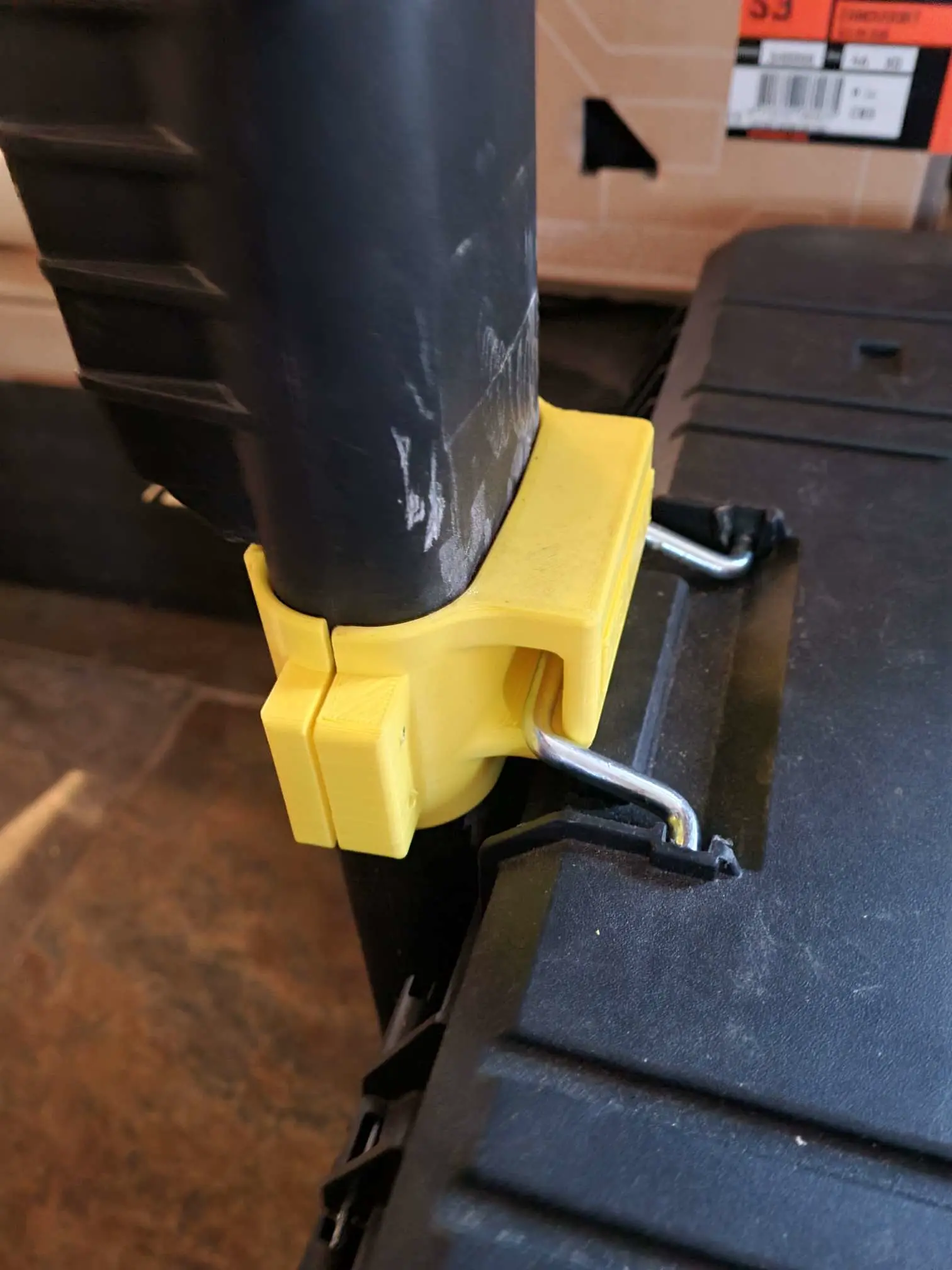

Replacement part for the hinge between cover and pullbar.
This is a weak construction from DeWalt, which broke on mine.
Therefore this replacement, which is much stronger.
You need to remove the old (broken) hinge with an angle grinder/multitool/sander from the pullbar.

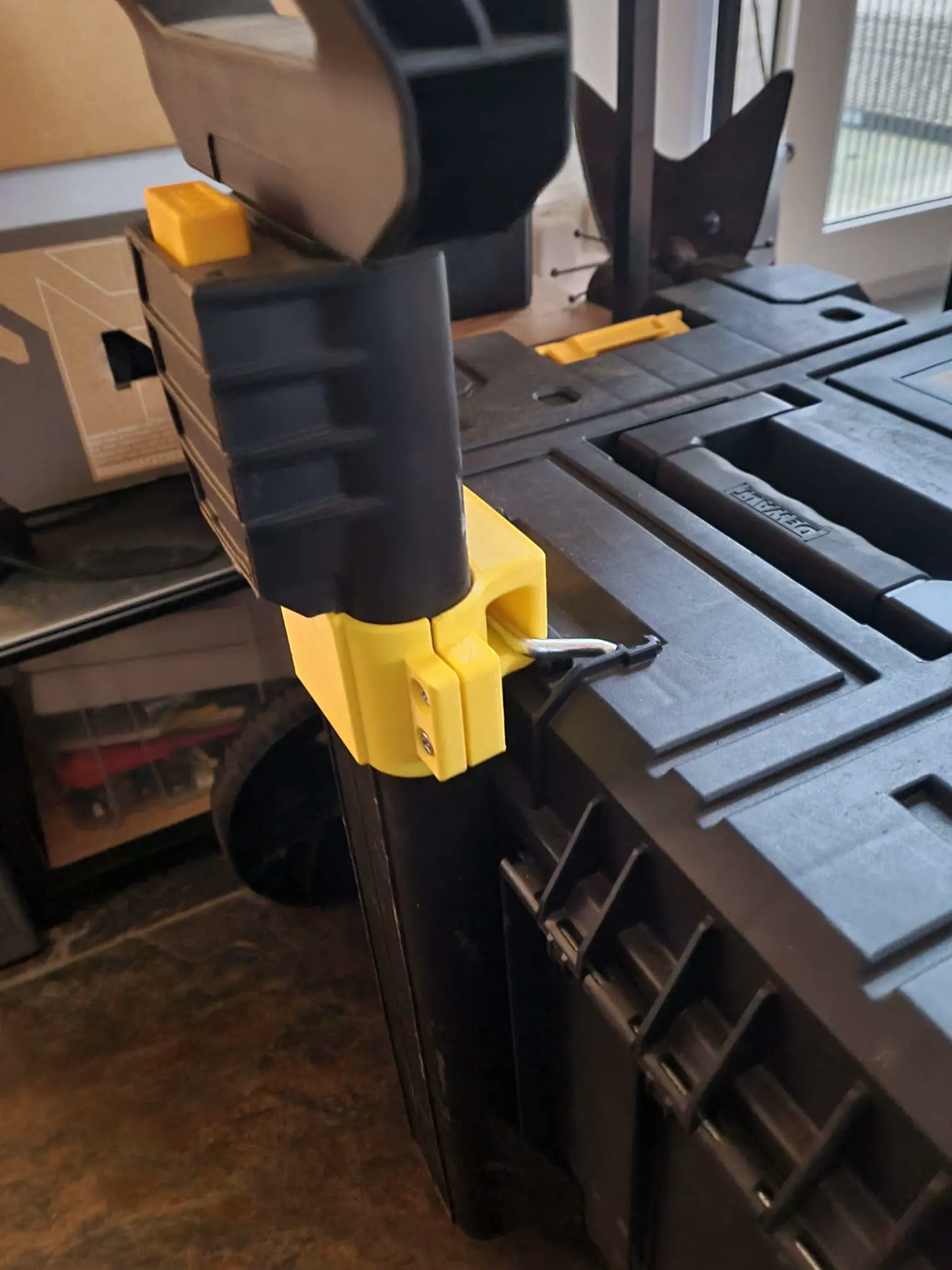

You also have to bend/rebend the metal ring in the cover to work it throigh the hingen.
It's printed in PETG (PLA optional = less strong), with a layerheight of 0.2.
Only printsupports on the outside and a brim for some extra adhesion for the rounded sides.
Printtime about 11 hours, depending on your printersettings.
