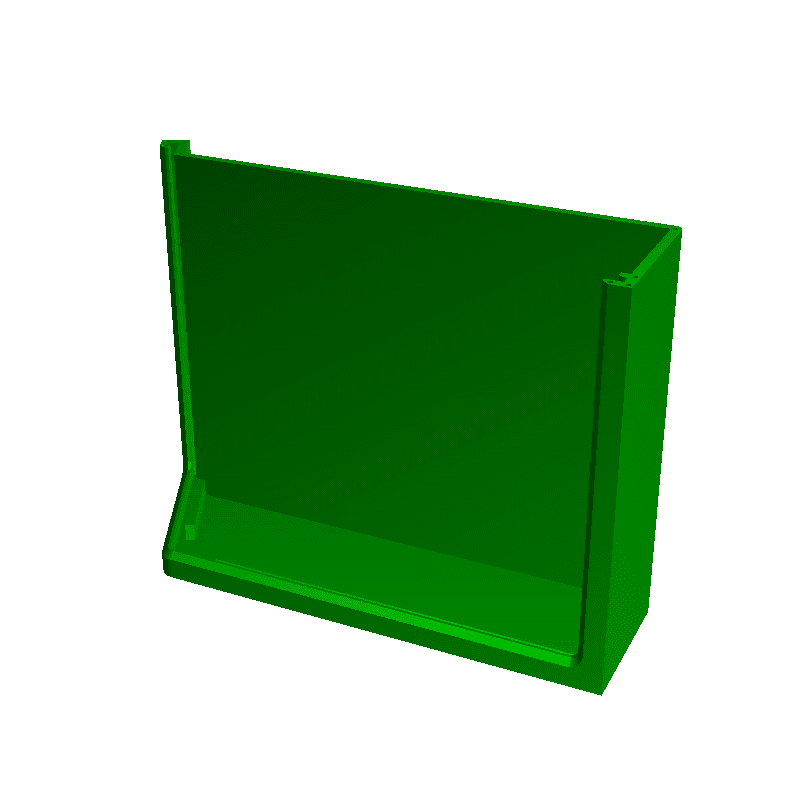

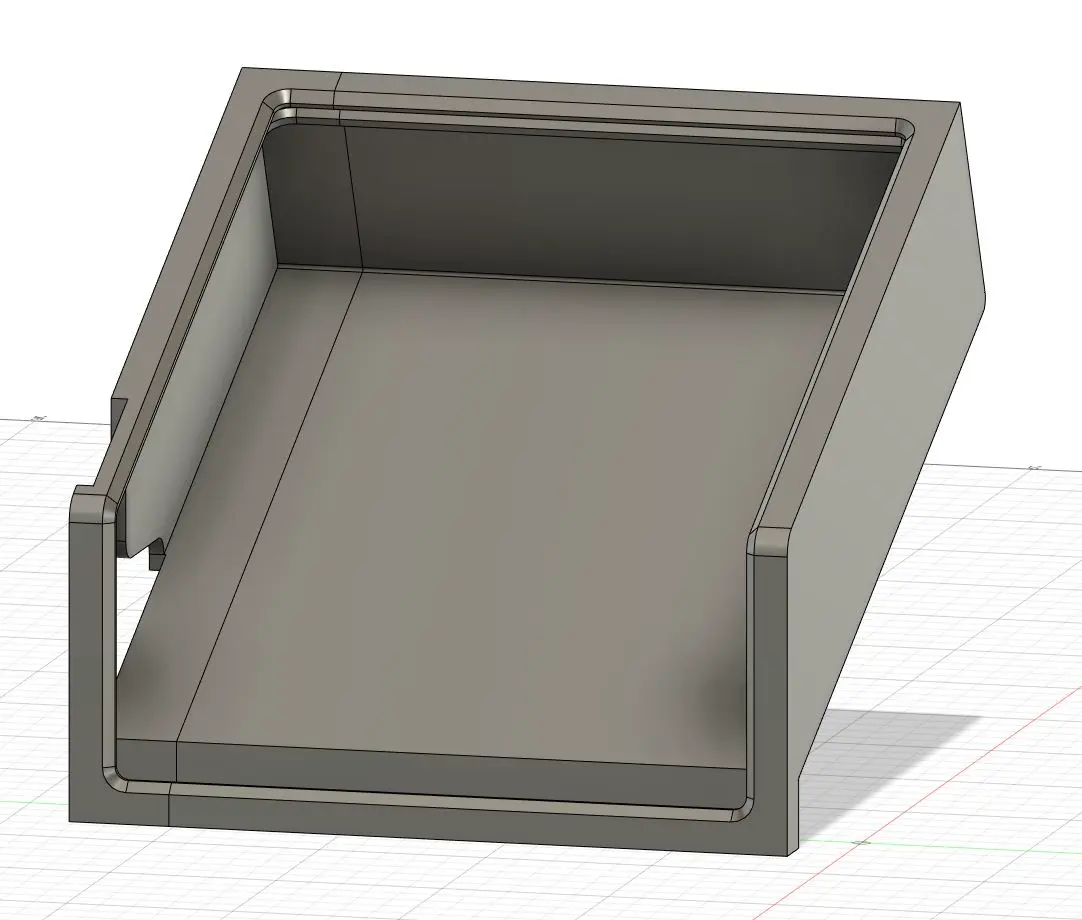

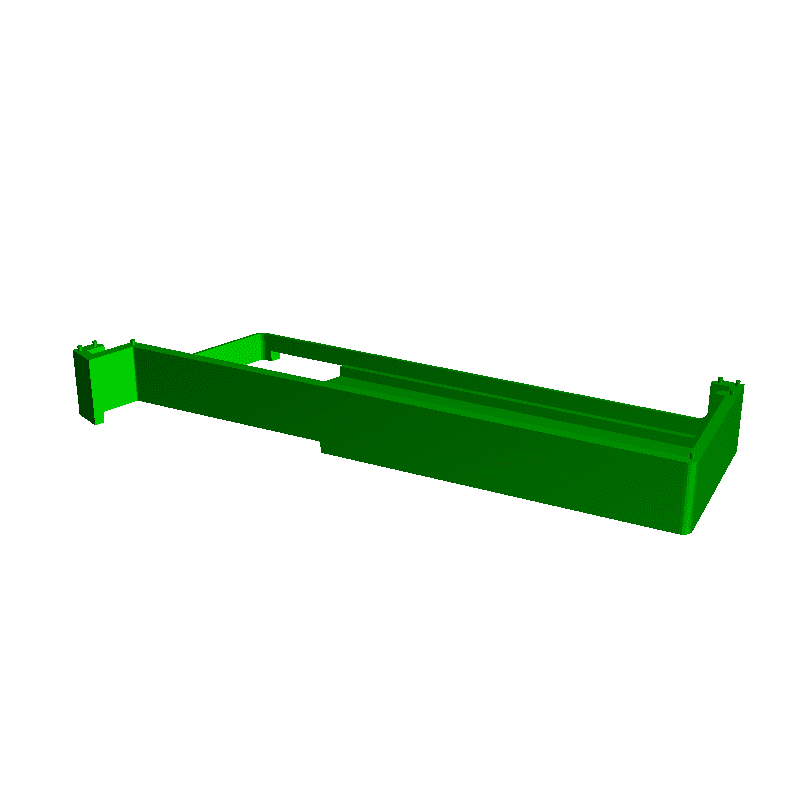

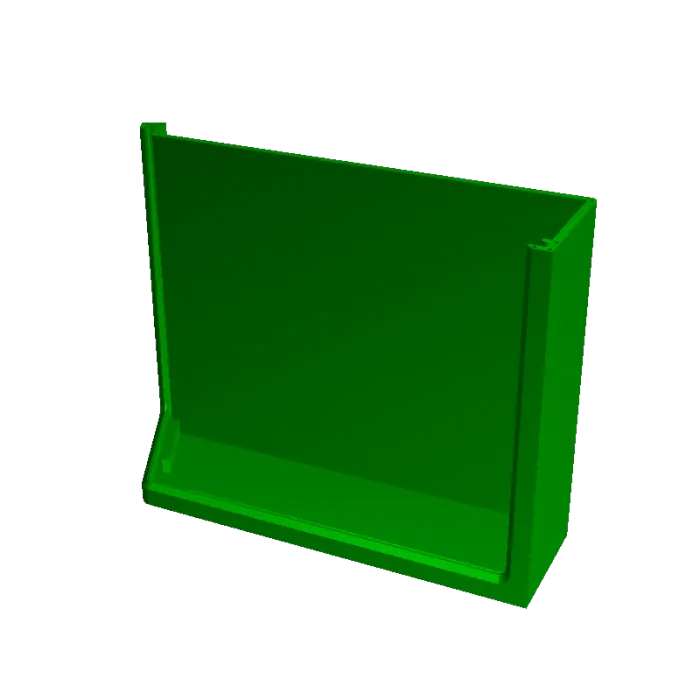

A shroud for the control panel for Ender 5 Pro. There might be similar models out there, but this one I made by myself using Fusion 360.
It requires the control panel to be disassembled and the probably some minor physical adjustments to fit perfectly.

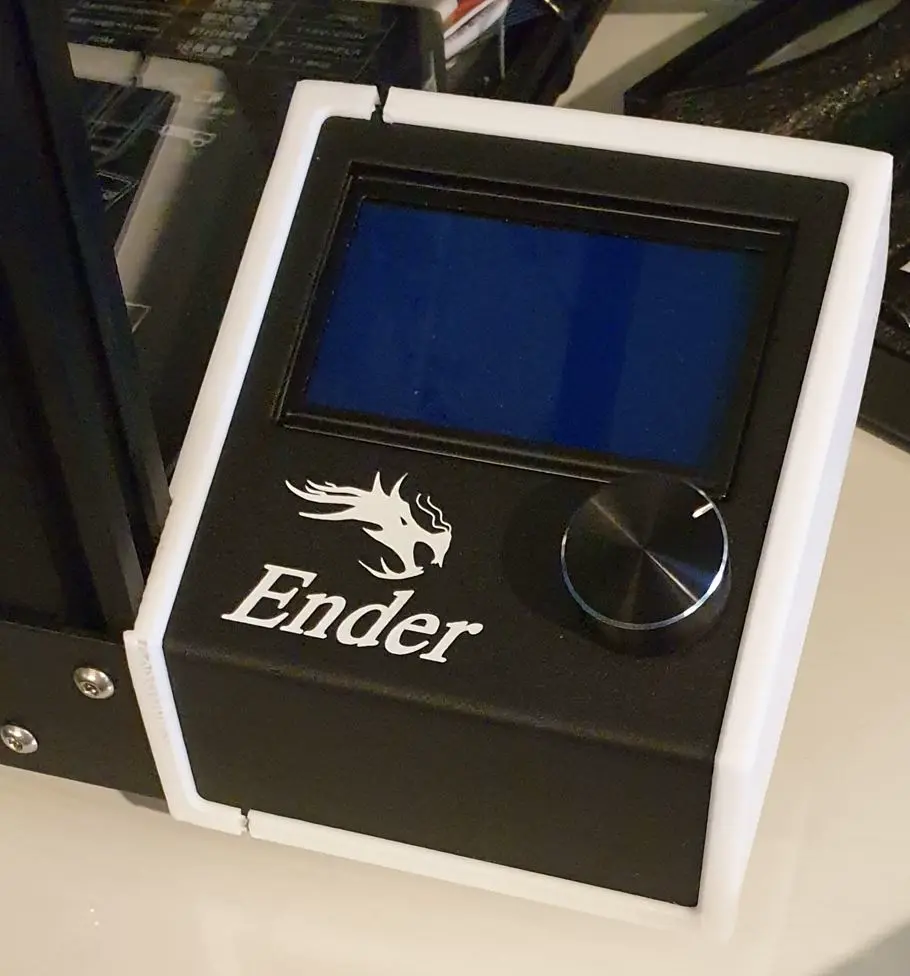

In the photograph, there's a small 2mm gap between the two pieces when assembled to the control panel, but this has been adjusted in the uploaded model. However the model is based only on my Ender 5 Pro and might not fit yours. Feel free to try it out and give me some feedback, as this is my first real model for 3D printing.

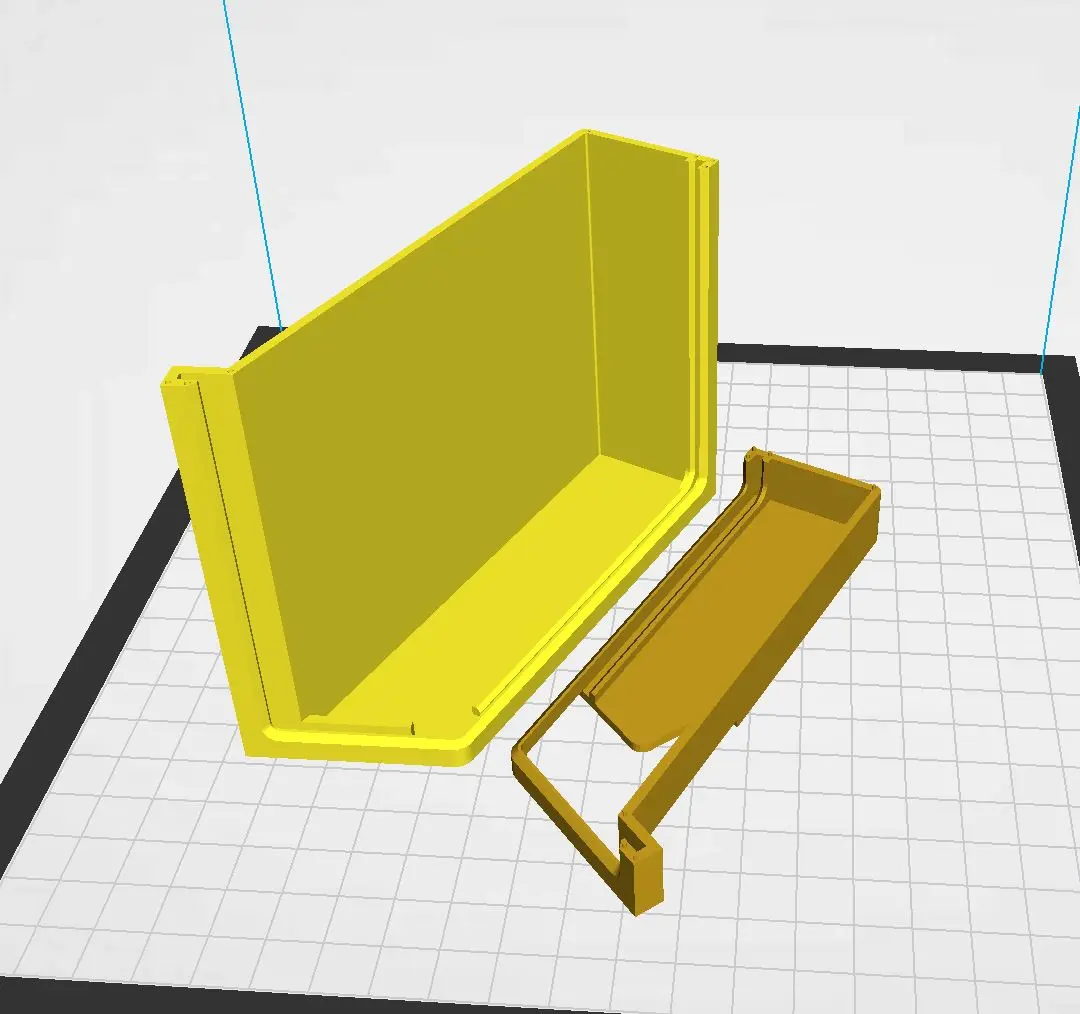

For the printing setup:
I used raft for both pieces and support for the smaller piece.
PLA, 1,75mm.
Nozzle siz: 0,4mm
Nozzle temp: 210 C
Bed Temp: 60 C
Fill Density: 15%
Layer Height: 0,15mm
Shell Thickness: 0,8mm
2 files
