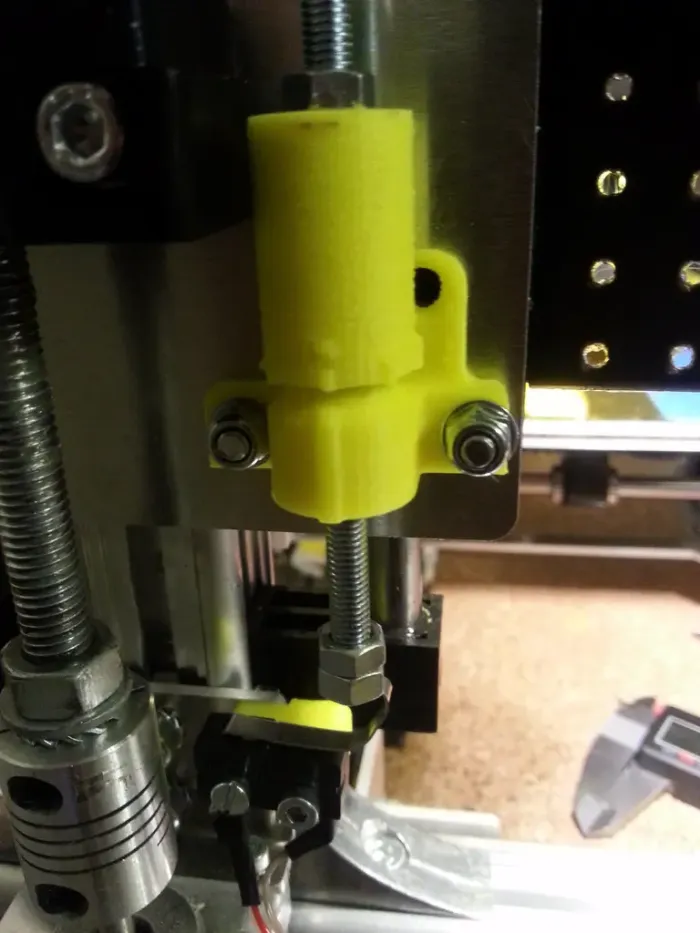

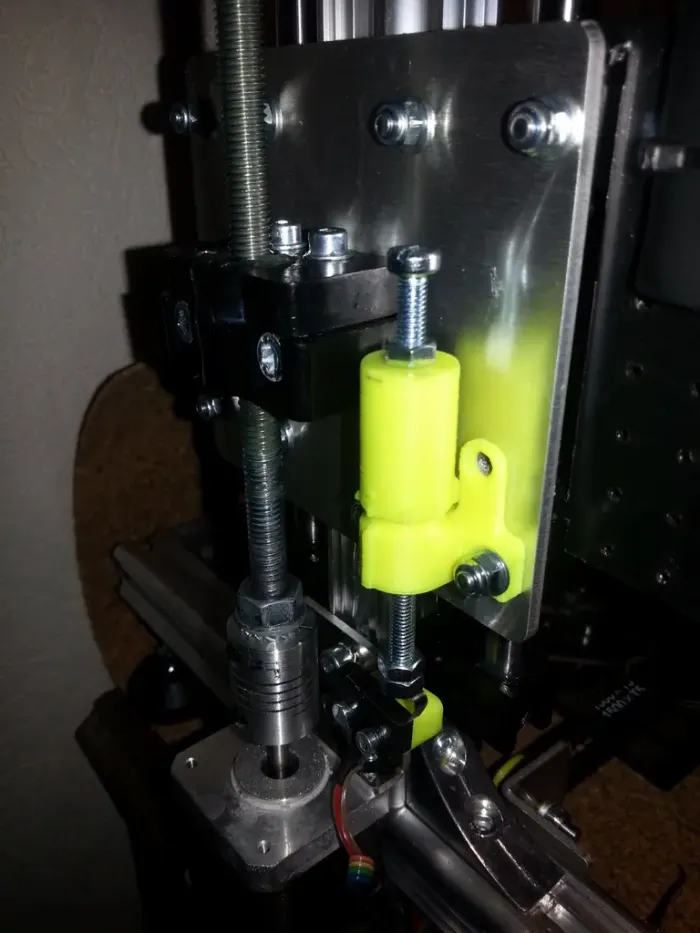

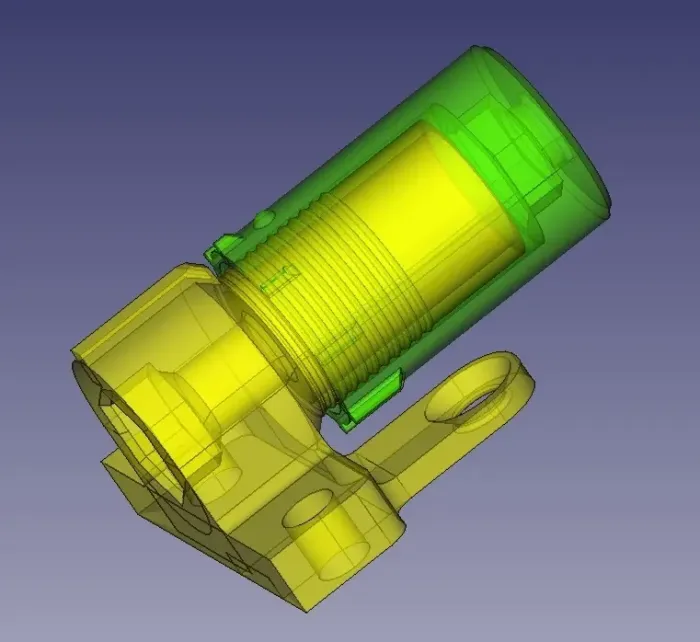

For easy adjust the higt of the z-end-switch.
so i can set the high by diverent coutings af the mirror (blangk/kapton/bluetape)

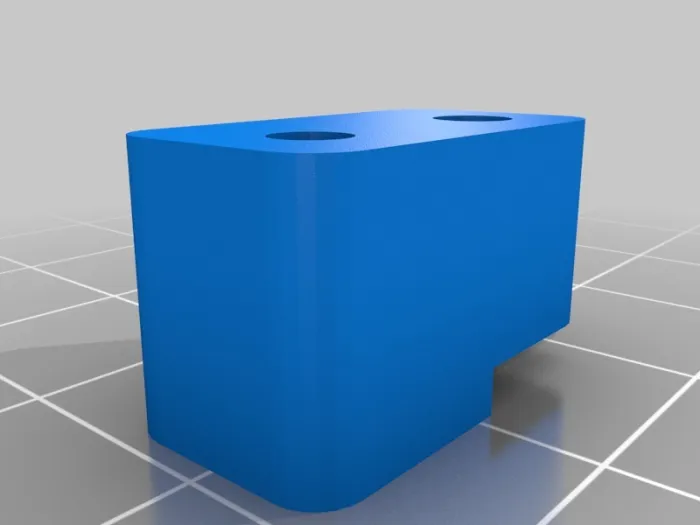

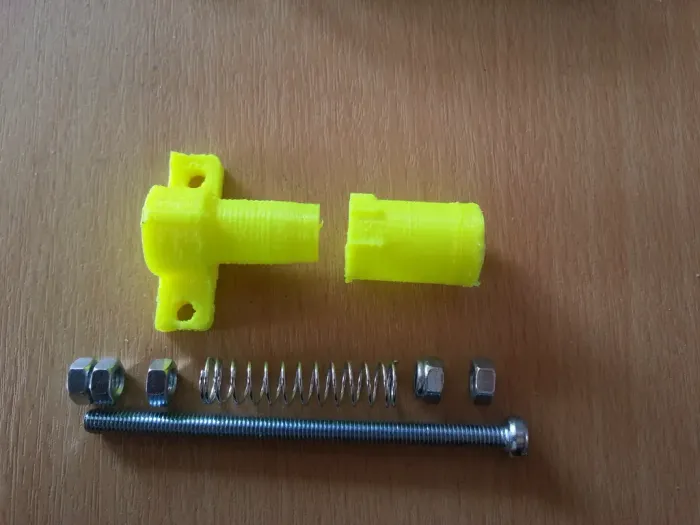

you need the 3 printet parts
1x M3x20 (or loger)
2x M4x50mm
1x M5x80mm
4x M5 nut
1x M5 security nut
1x Spring 9x35mm
it is possibe thad you must sand the 1mm horizontal markers in the bottom part,

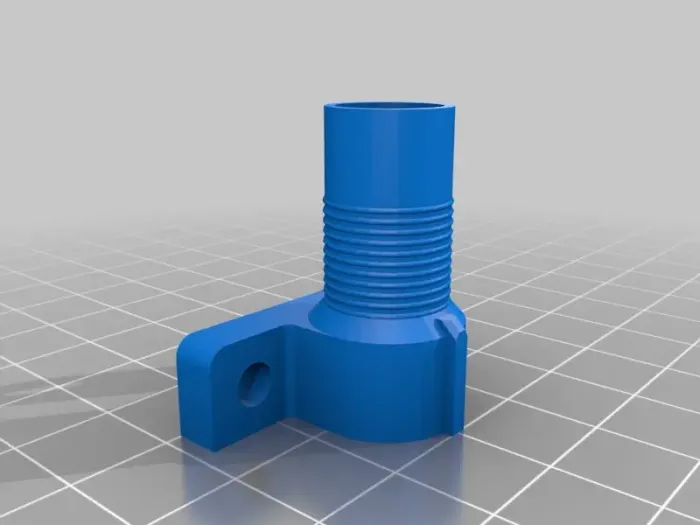

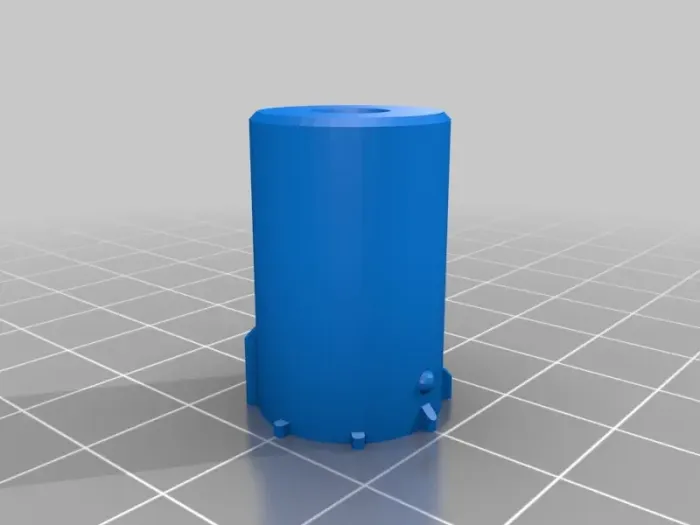

There are different markers at the top-part.
2x smal markers
1x marker with a dot on top
and 5 markers (they grow up)
at the marker with the dot you must adjust with the screw 0,25mm distance betwen nozzle and heatbed (and fix it with ne conter nut at the top)
so you had an offset from -0.2mm to +0,5mm
To see the markers bether you can paint it with nail color or an edding.
3 files
