CR-6 SE Gantry Camera Mount Bracket X2 Creality CR6
V2 uploaded - better fit on the tensioner to stop the bracket from moving. Top tip - If you find it too tight, place the bracket in some hot water for 30 seconds, then fit.

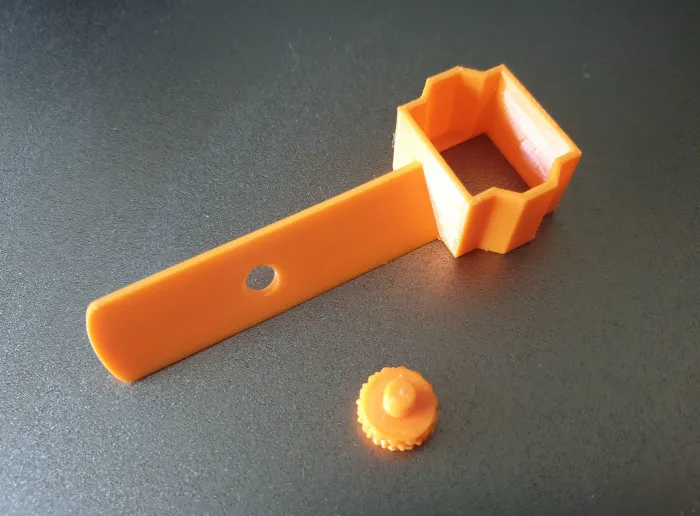

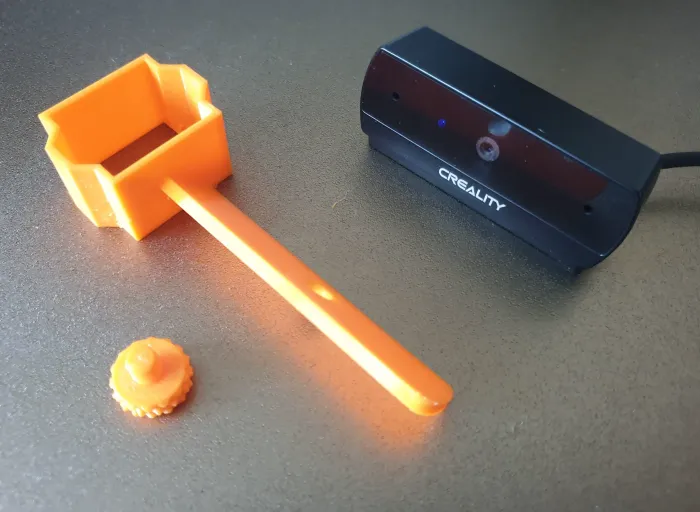

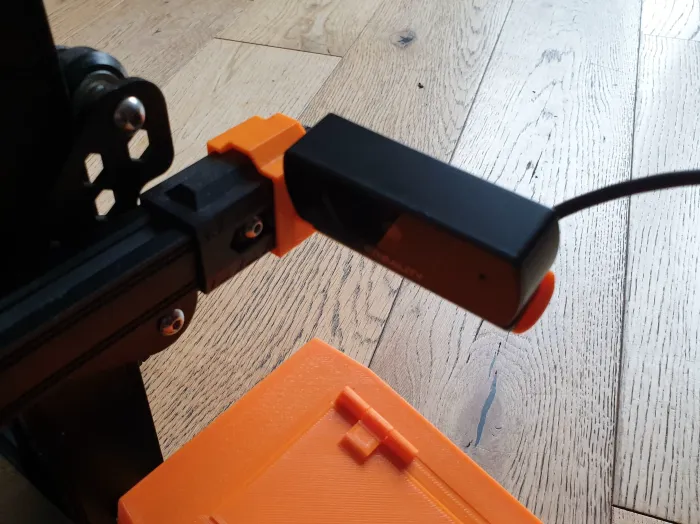

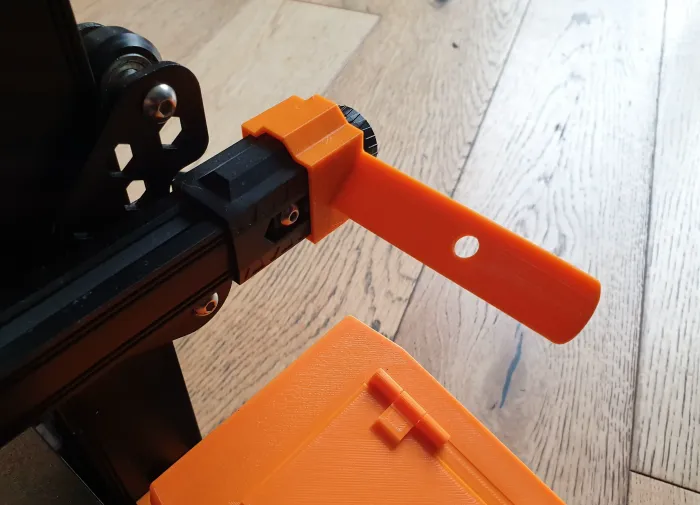

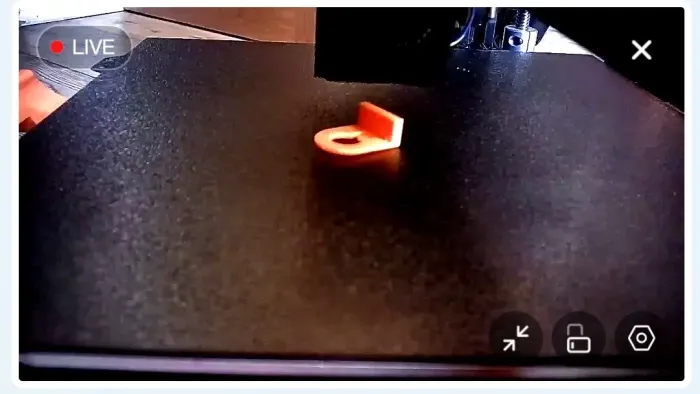

Designed for the Creality Web/3DP Camera and simply slides onto the tension arm of the CR6 and angled to provide the perfect view of the build plate. This can then be fine-tuned with the hinge on the camera.

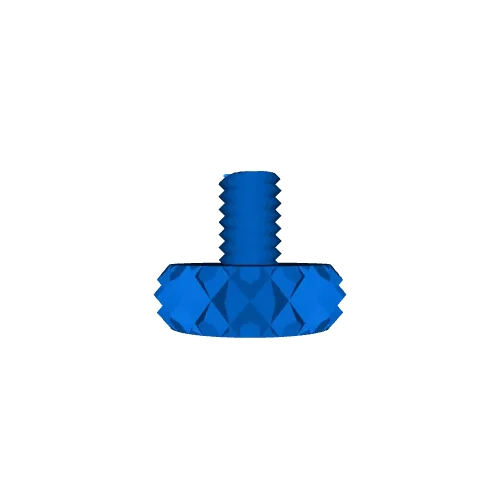

You have a choice of a mid and low bracket. Please note that you will not be able to use the low bracket if you have a hinged screen cover. I have also included a choice of screw length. The short screw is best used with the Creality Camera
You can also find me at Cults3D - 3DPFactory
Printed in PETG but PLA should be ok as well but you want to consider stronger parameters in Cura.
0.4 Nozzle
0.2 Layer Height
30% - 100% infill Bracket (I printed mine at 100%)
100% Infill Screw
No supports needed
4 files
