Sonic Pad Universal Bracket CR10 Smart Pro Ender 3 V2 Pro S1 and any 3D printer with a 2020 top profile.

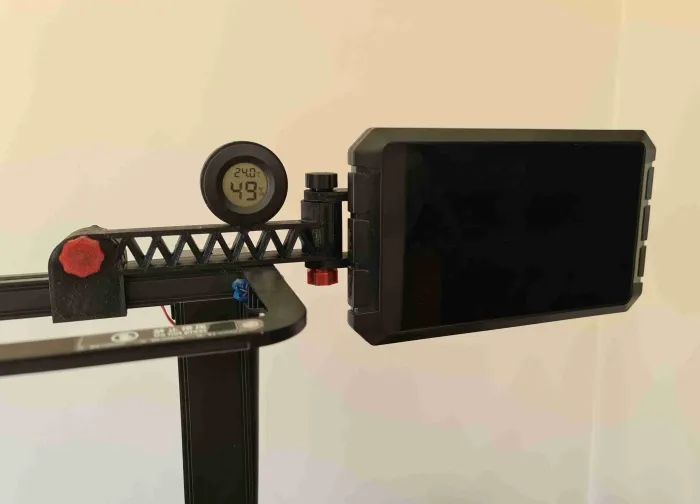

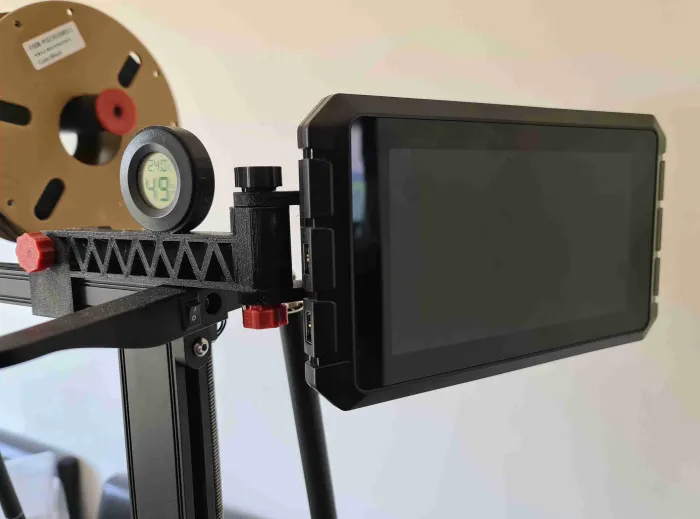

Update - V4 uploaded with improved tolerances and you now have the option of fitting a hygrometer display (see images standard round Hygrometer from Amazon).
I needed a bracket for my Sonic Pad that would fit my other printers. Measure your top rail and if it is 20x20mm (2020 profile) this bracket will fit.

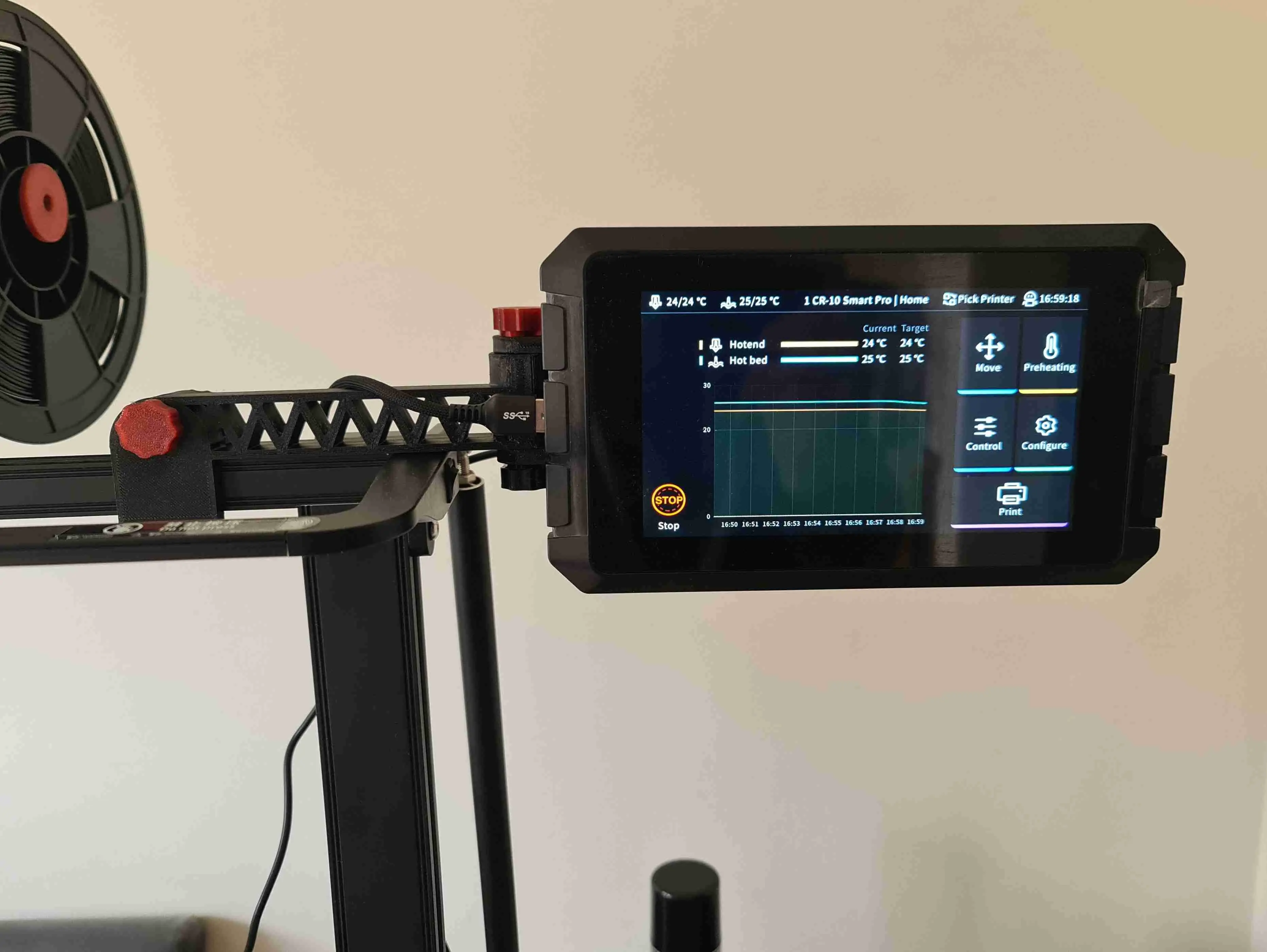

This bracket allows you to fit the Sonic Pad to any printer that has a 2020 profile and can be quickly installed/removed and swapped between printers. It can be mounted on the left and right of the printer (opposite legs included).
Once fitted please remember to take care of your cable management so no cables foul the print bed. The brackets are a deliberate tight fit.

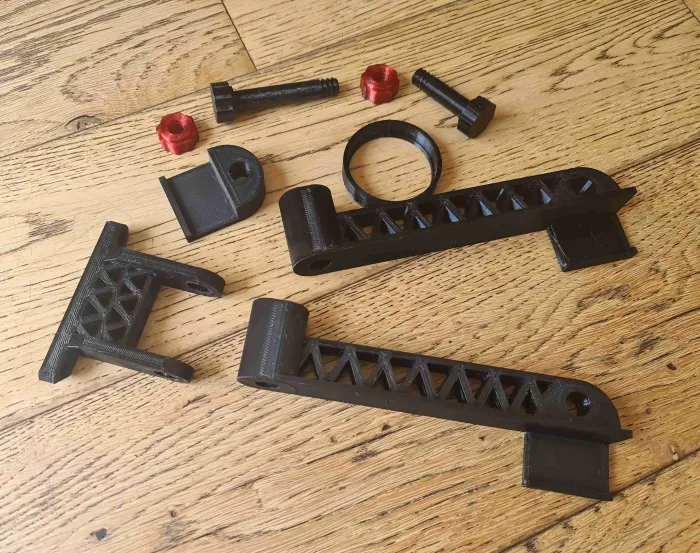

Leg A and Bracket A is for mounting on the right side of your printer and Leg B is for the left side mounting of the printer.

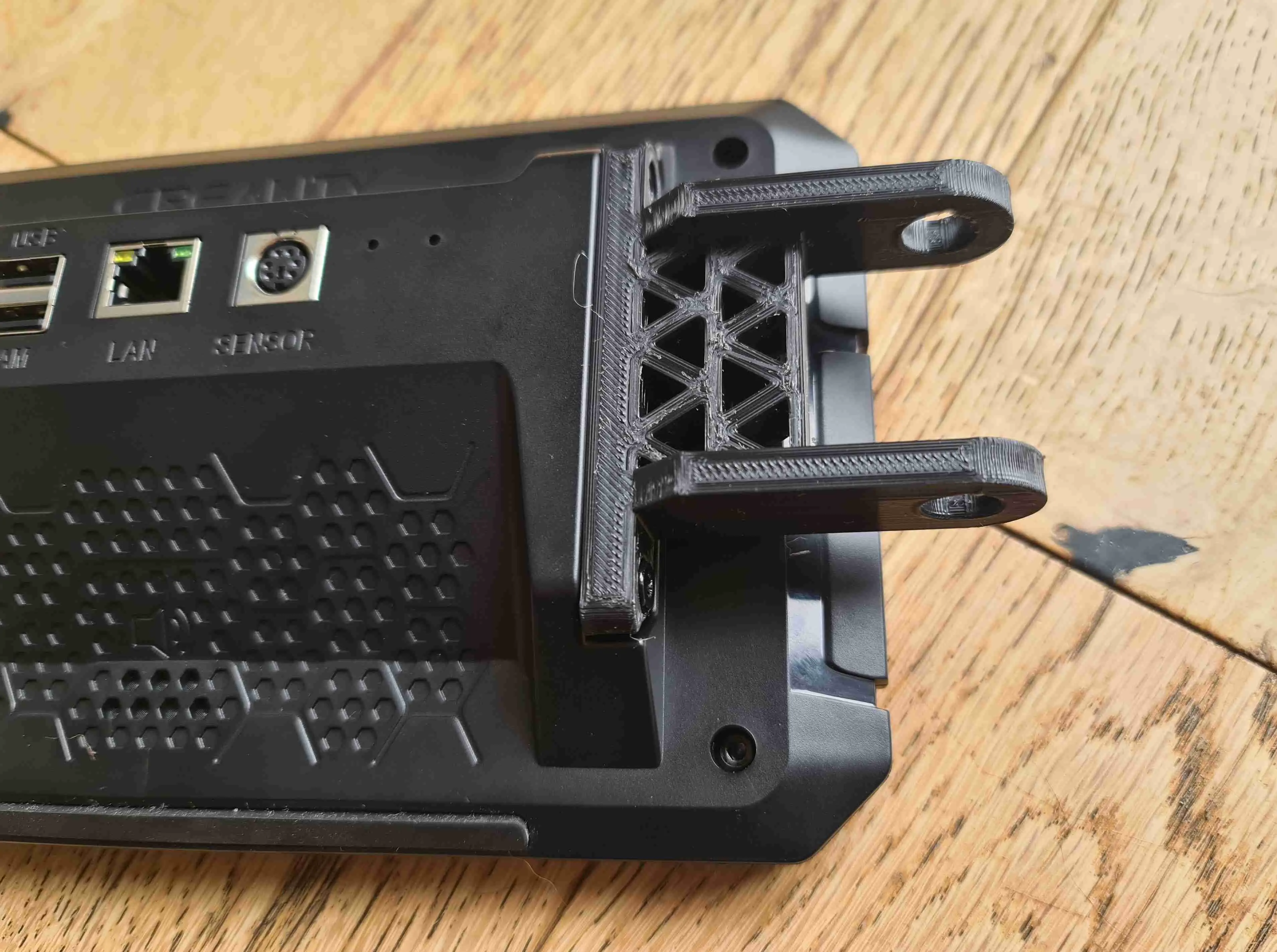

You can use the screws from the original legs, both will be needed.
This must be printed in PETG or ABS. I have not tested it with PLA.
0.4 Nozzle
0.2 Layer Height
30 > 100 Infill brackets ( I used 100%)

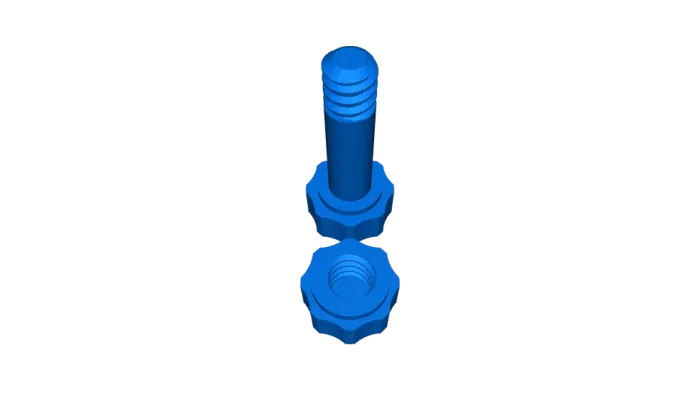

100% Infill Nut and Bolts
No supports (easy to print)
10 files
