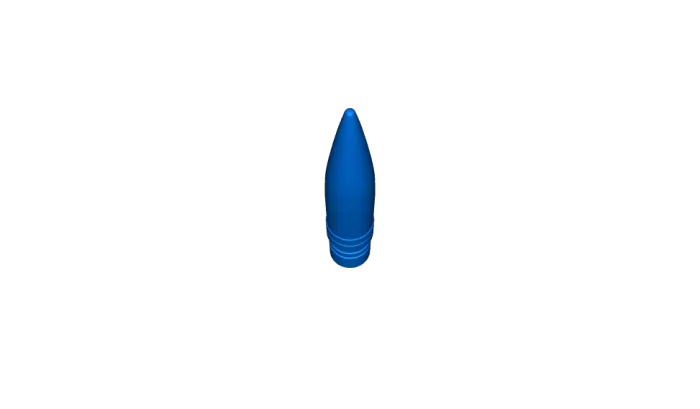

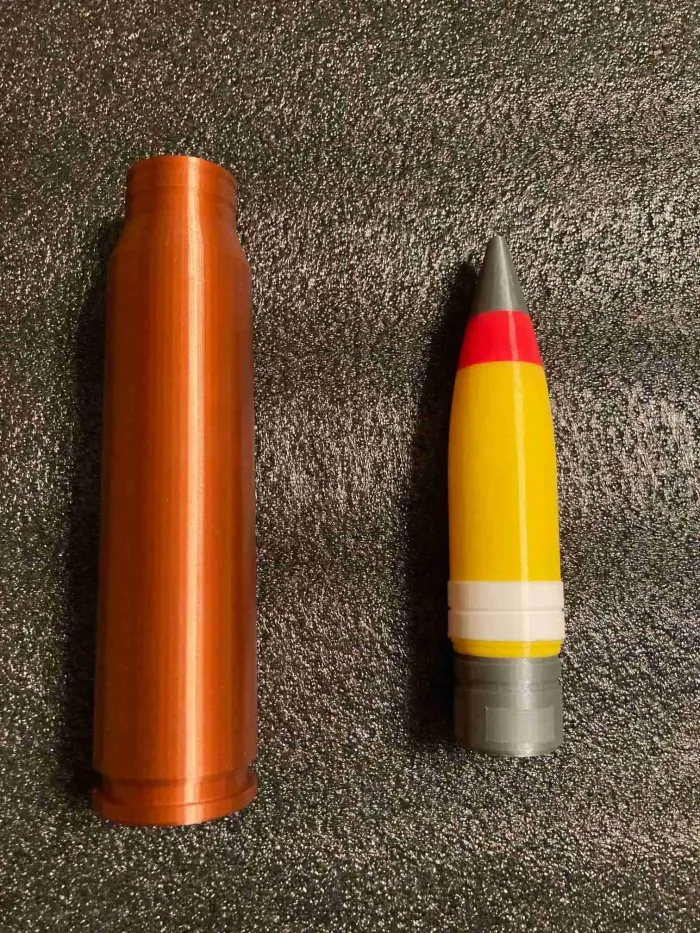

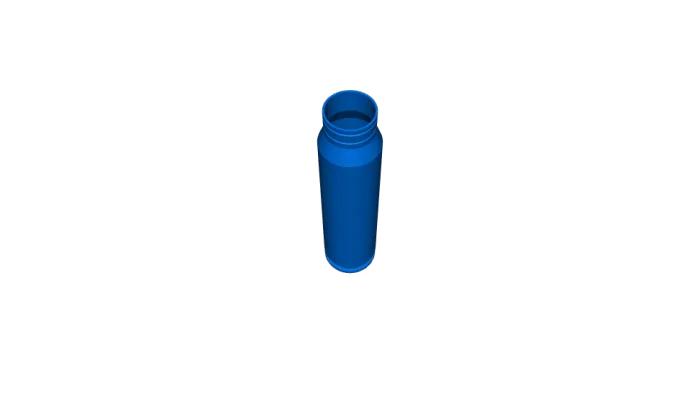

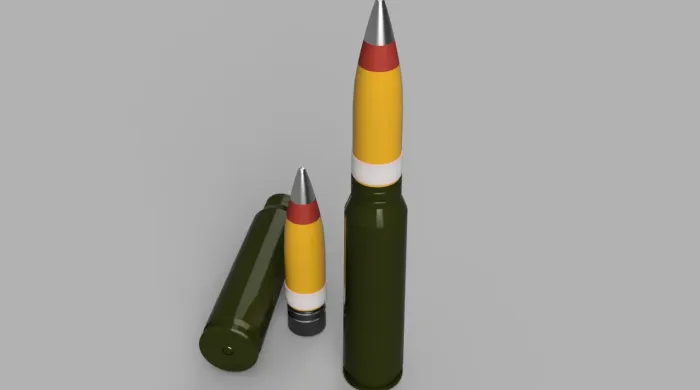

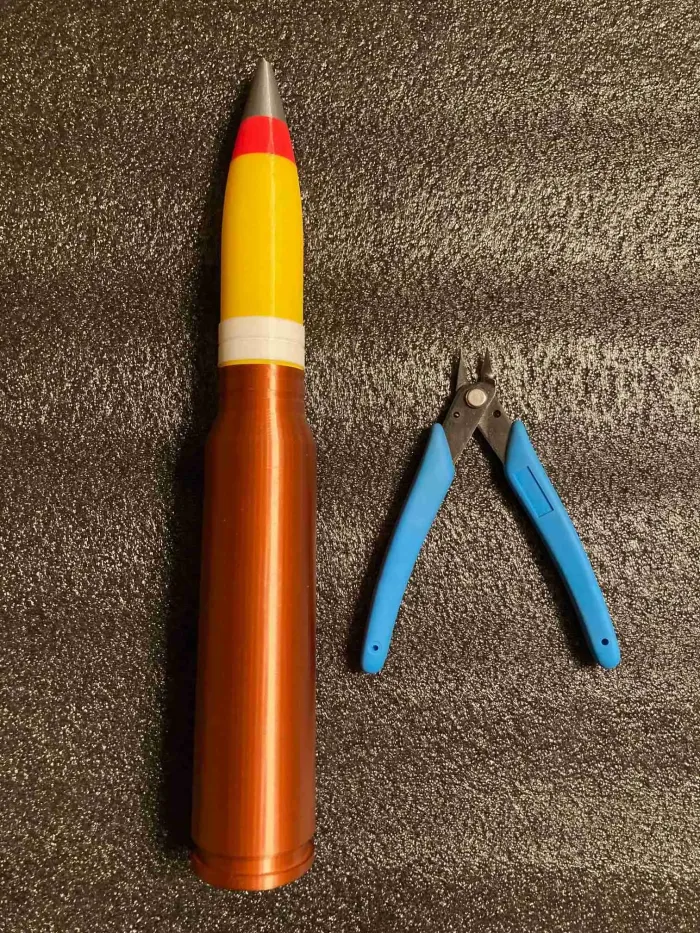

Full scale model of the 30x173mm HEI round used in the GAU-8 Avenger autocannon mounted in the A-10 Thunderbolt II. Reproduced as close to the real thing as I could make it. I wasn't able to find any technical drawings of the projectile so I had to copy it from pictures. The completed model with case and projectile is 290mm tall. The fit of the parts is a tight, but not too tight press fit. The projectile should be printed using the pause at height post processing script to change colors.

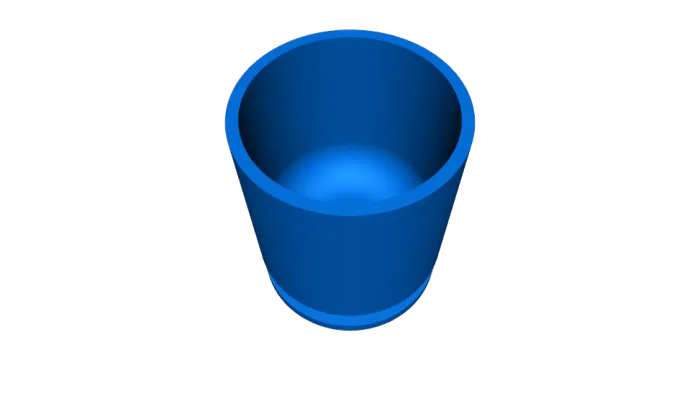

I've also included a model of the case cut down to 52mm, about the size of a shot glass just for kicks.
This model is wholly owned by the designer. By downloading this model, you agree to the following:
You may not make alterations to this model.
You may not redistribute this model.
You may not sell printed copies of this model for profit.
3D PRINTING SETTINGS
If slicing with Cura, set slicing tolerance to Middle (default)
