After analyzing the cover lifts available for download. I designed my own modular version that matches the style of previously designed fan covers.

There are four main combinations you can use to build your lid riser for K1, but you can make more.

1. Full enclosure - print 1x RR.stl, 3 x Panel full.stl.

2. Honeycomb and anti bump panel - print 1x RR.stl, 1 x LF.stl, 1x LR Bump.stl, 1x RF.stl, 1x Chain riser.stl and covers if you need them (1x Cover front left, 1x Cover Front Right, 1x Cover front, 3x Cover Clip.stl)

3. Full enclosure, and anti bump panel - print 1x RR.stl, 1x LR Bump.stl, 2 x Panel full.stl.

4. Front honeycomb, back full enclosure - print 1x RR.stl, 1 x LF.stl, 1 x Panel full.stl, 1x RF.stl or Panel full.stl, 1x Chain riser.stl

There are many possibilities that I have not listed. If you don't want ventilation covers, you can print the panels without fasteners (LR hex no cover.stl) .

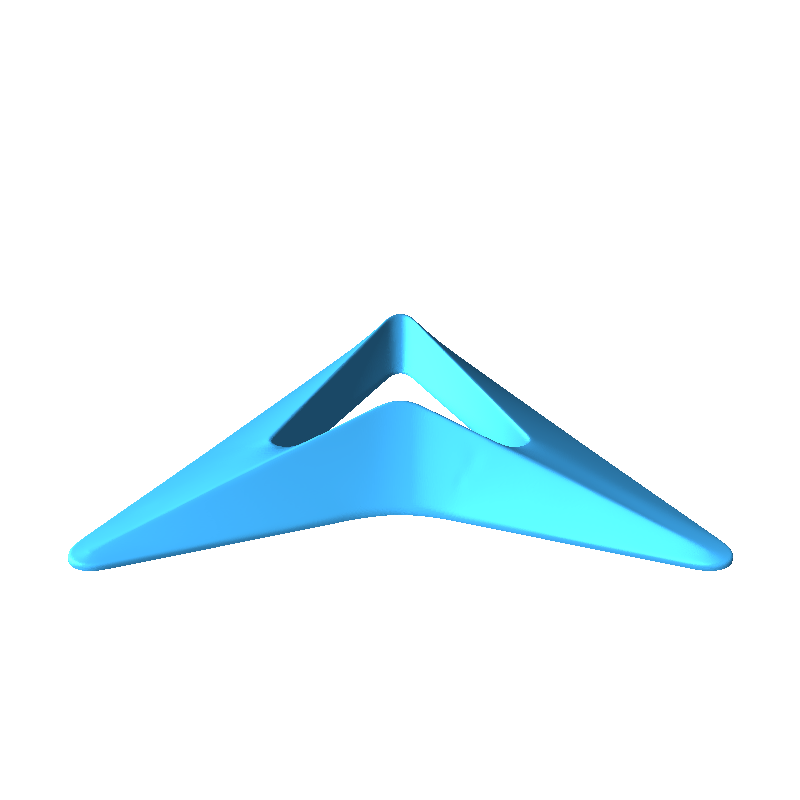

I also included a logo that you can print and stick on like I did. (Creality logo.stl, K.stl, 1.stl)

You can mount it using magnets from the bottom and melt the inserts and M3 screws from the top, or use longer M3 screws to screw the top to the housing.

For the PTFE tube I'm using clip thanks to hampisch

https://www.thingiverse.com/thing:6337354

Printing parameters:

Layer - 0,2mm

Printed with supports

Infil - 15%

Print File：

Creality logo 
