UPDATE 12/30/24: I have remade the RIGHT side and it fits Perfectly now! Make sure to print the correct parts, it's all labeled clearly with "RIGHT" and "LEFT".

***The right size bin is smaller due to it's longer side. If I made the angle less steep then the poop cannot slide down.***

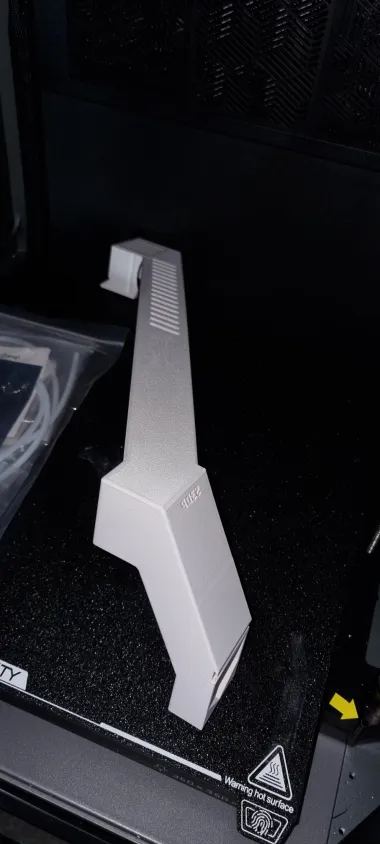

I design this poop chute slide for the Creality K2 Plus, so that all the poop will slide down into the bin at the bottom, instead of the floor.

This design features a small window that you can slide up the cover and see if there's any clog inside the K2 Plus. It also features cutouts that will allow air to flow through from the back fan. Amazing!

You just need to unscrew the two screw at the back of the K2 Plus next to the opening of the poop chute and screw in the Poop Chute Slide, perfectly cutout hole for the screw.

12/19/24 - Added Right Side ** PLEASE DONT PRINT RIGHT SIDE, ITS NOT CORRECT I'M MAKING NEW UPDATE TO IT! (For some reason I can't delete the right side print file.)

Requirements:

1x Poop Chute Slide

1x Bin

1x Peek Hole Slider

1x allen ranch

Print settings:

0.2mm layer height (can also be printed up 0.28mm)

2 walls

15% infill (3D Honeycomb)

300mm/s Print Speed

Minimal support

Filament:

PETG (Recommended)

I explain everything in this video:

12/30/24: Right Side Fits

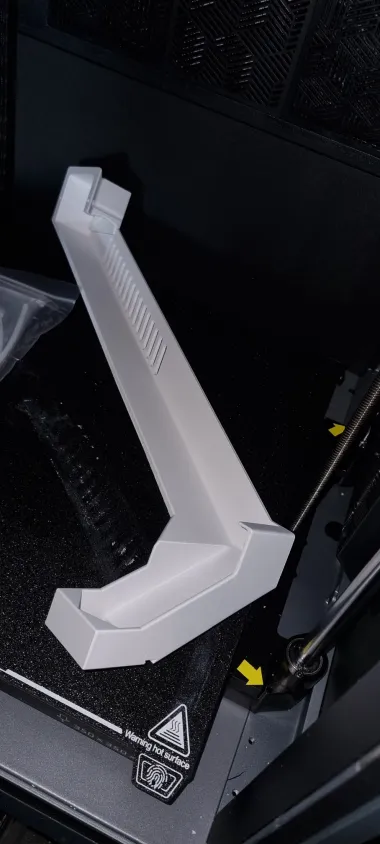

Right side chute slide



Print File：

Poop Chute Slide RIGHT Side (CORRECT)).stl 
