3D MODEL DESCRIPTION

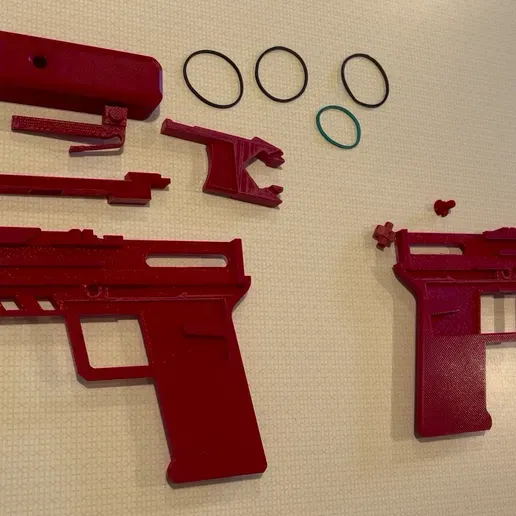

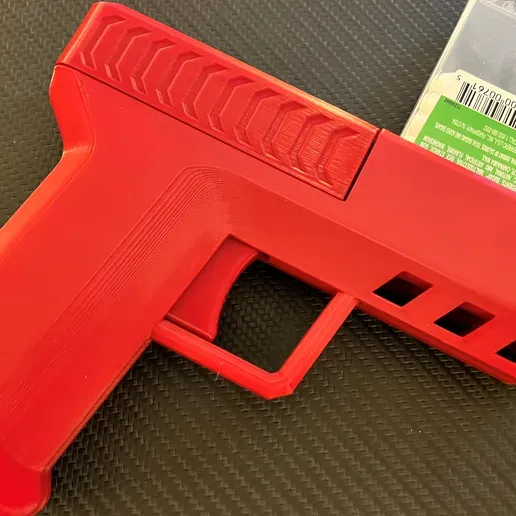

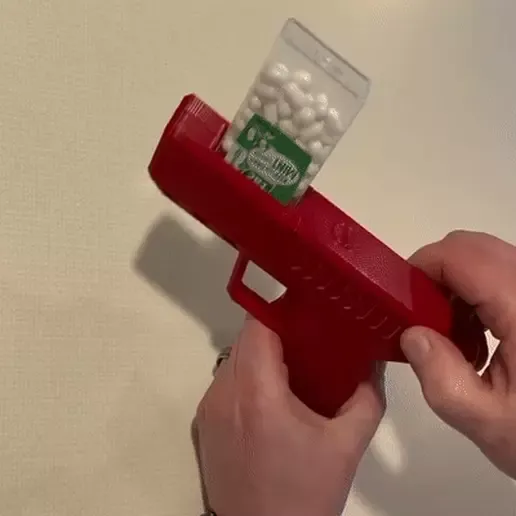

3D printed tic tac gun powered by rubber bands. Model features a realistic slide mechanism to load tic tac's and accepts standard size tic tac dispenser with top removed. Design was inspired by other tic tac gun models I downloaded and tried but was disappointed with the way they functioned. Assembly is simple and doesn't require any special hardware, only four rubber bands.
Check out the assembly and firing video on my YouTube channel:
https://youtu.be/qiWnDfGmde8
UPDATE...

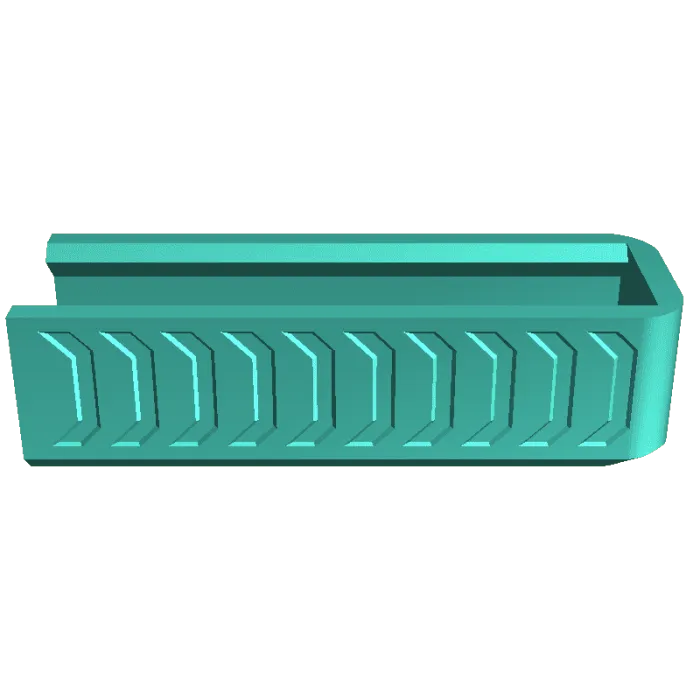

LOAD SLIDE - V2 has been added. A slight update to the slide design significantly improves feed rate and minimizes jams. If you have feed issues with the original slide give V2 a try.
3D PRINTING SETTINGS

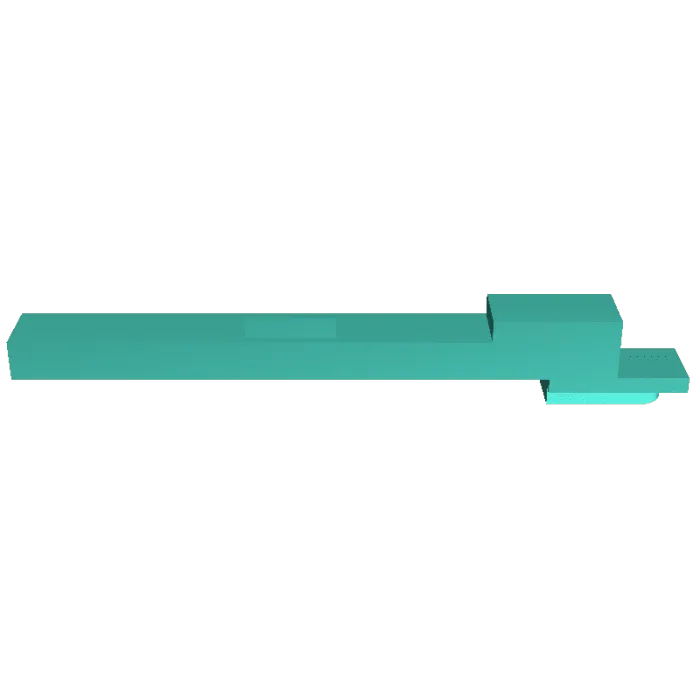

All part should be printed full scale and model shown was printed at .2mm layer resolution. A higher resolution print of .12mm layer height is recommended to minimize sanding and ensure part slide freely. Full print file shows recommended orientation for each part but all parts also uploaded independently. Recommend printing the bolt with 100% infill so it holds up to repeated firing. All the other parts work well printed with 15%-20% infill. Supports are required and I would recommend a brim on the small parts to ensure they adhere properly to the build plate.

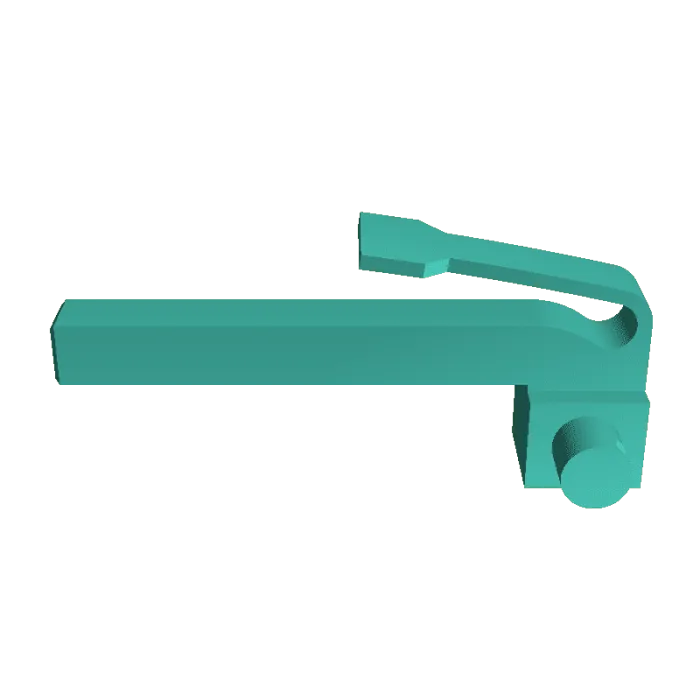

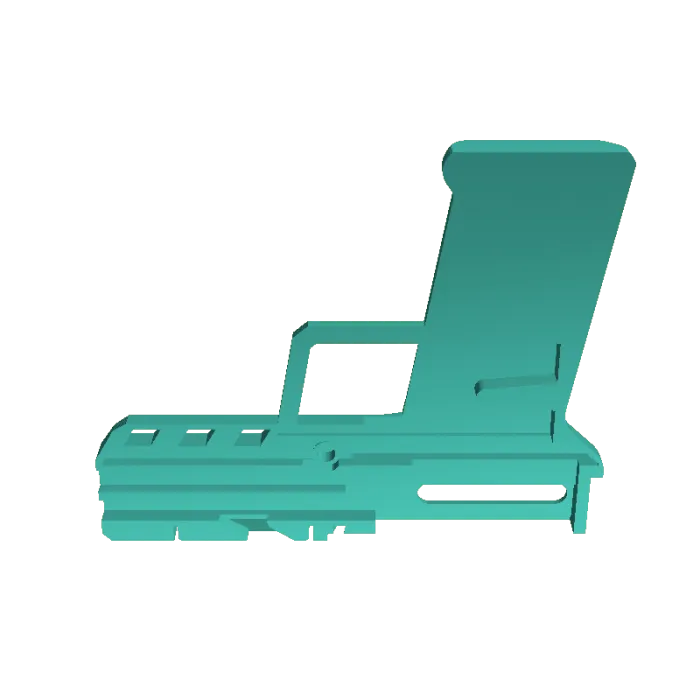

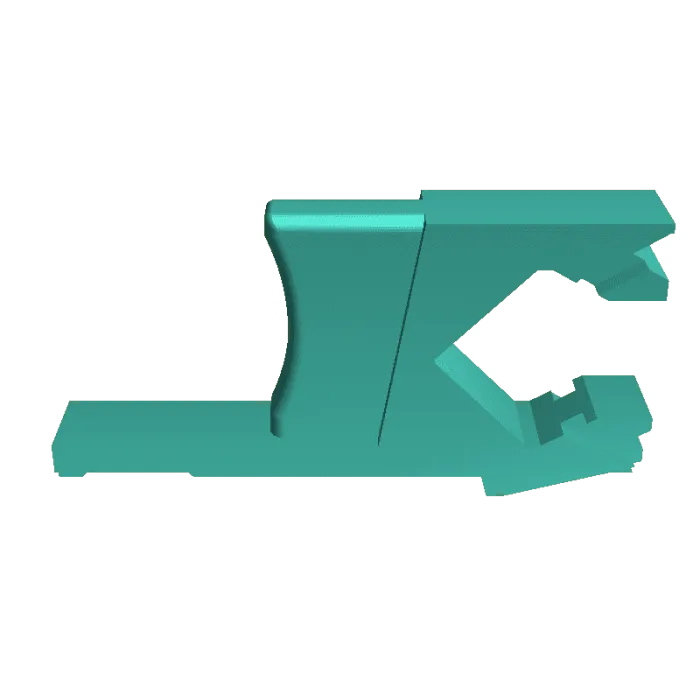

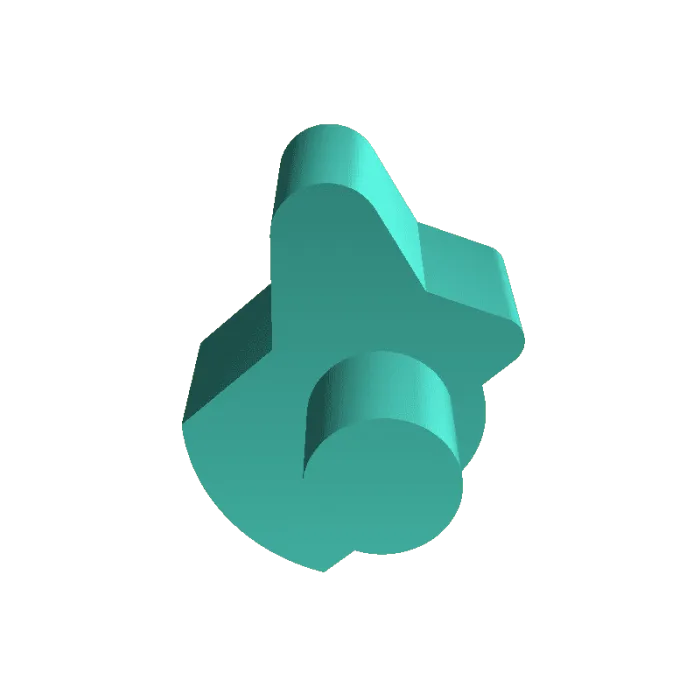

10 model file(s) included
