A Universal Camera Mount For Ender Style Printers And Clones.
-----------------------------------------------------------------------
Tested on an Ender 3 S1 Pro and Xvico X3S
Universal 1/4" camera tripod screw for mounting a range of cameras.
Perfect for time-lapse.

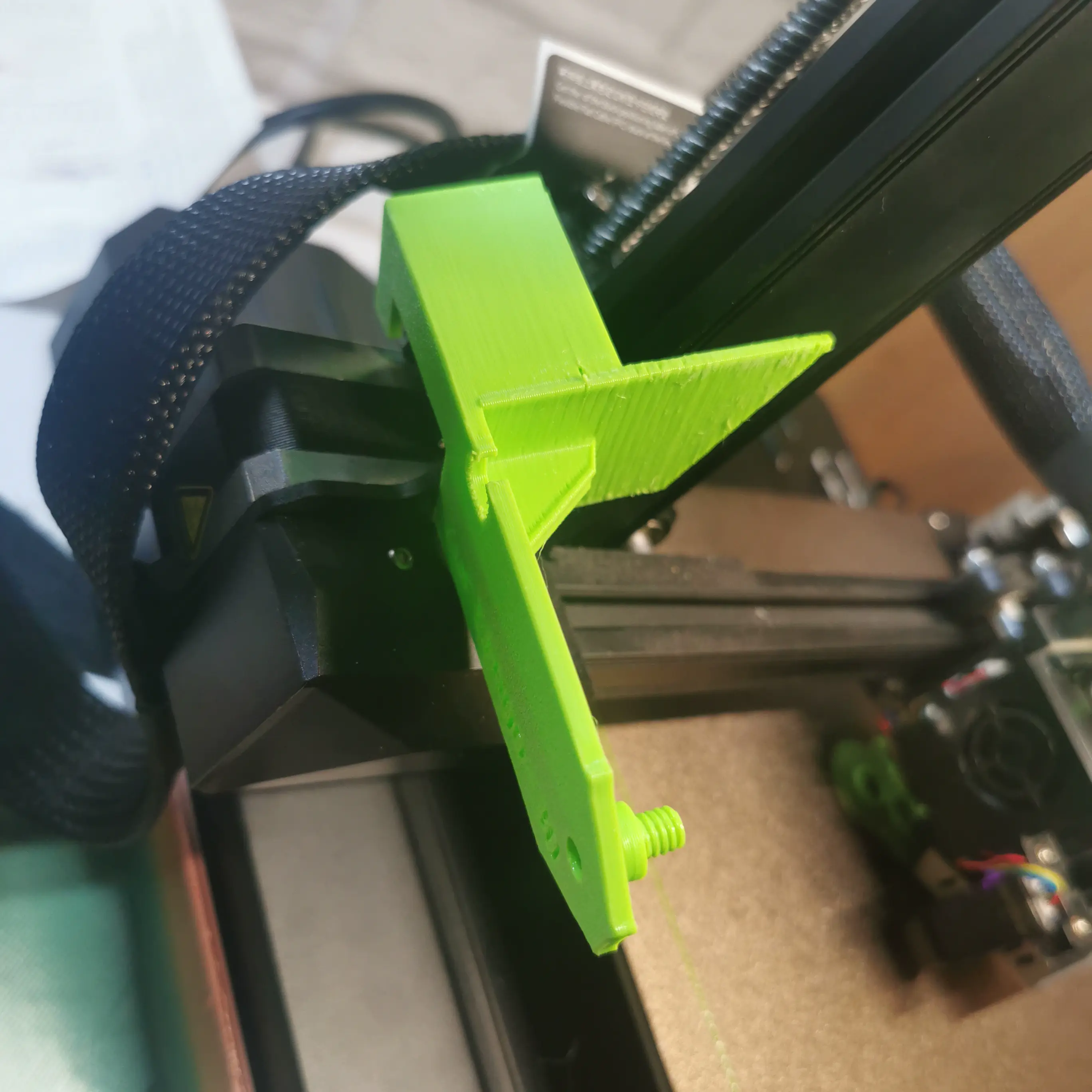

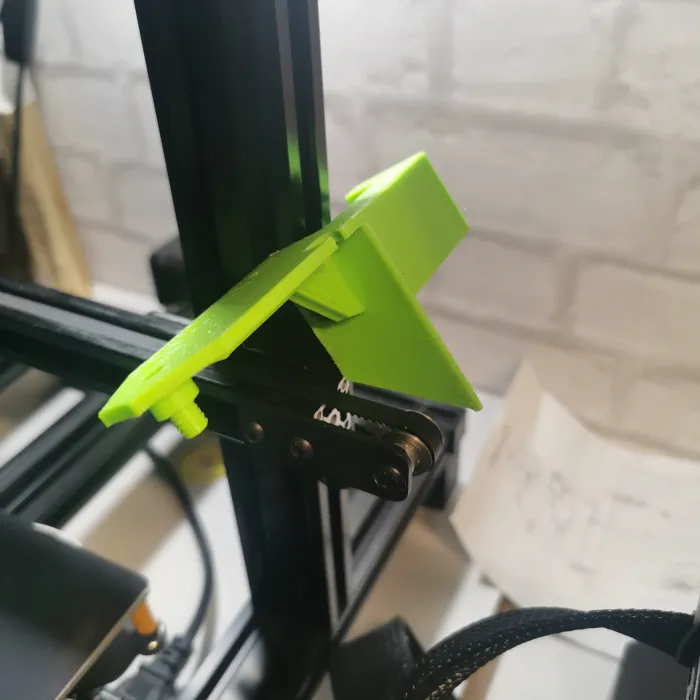

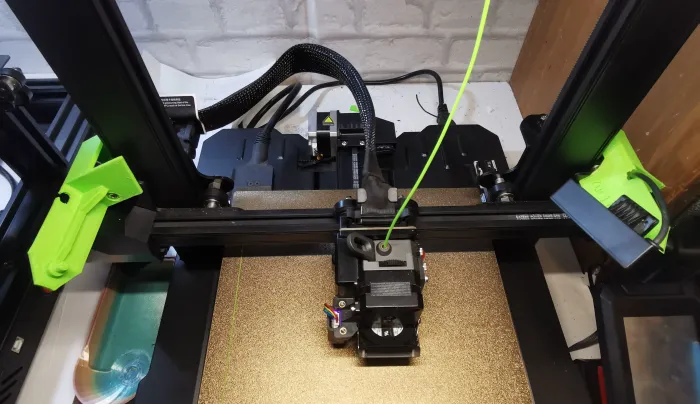

Mount on either side of the z-axis for optimal viewing angle.
Rotate mount to adjust viewing angle/height, and twist the camera on the screw to adjust side to side.
You can also mount a camera underneath the mount, when placed on the right hand side.

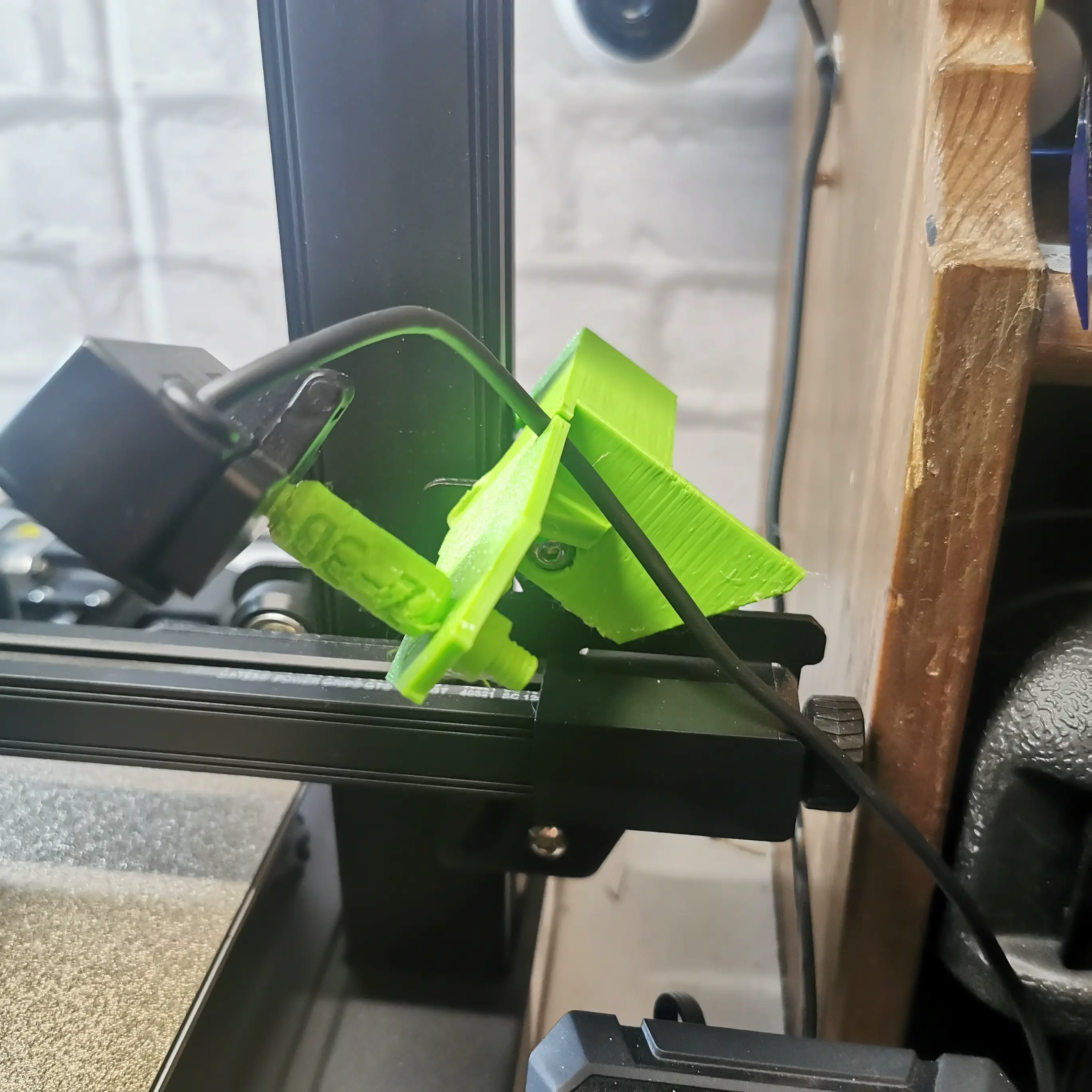

Slot to fix usb cable from camera.
Use the spacer if you are using a printer with only 1 lead screw.
Use the extension bar to raise the camera.
Snapping it on can be a bit tricky. It takes a reasonable amount of force to lock it into position, but be careful not to snap it. You will get the knack in no time.
Time-Lapse Example With Creality Camera:
https://drive.google.com/file/d/1E0FzA0uT1tYnvtcScnZXSzl8u3-HvL8Y/view?usp=sharing
-------------------
Print Settings
------------------

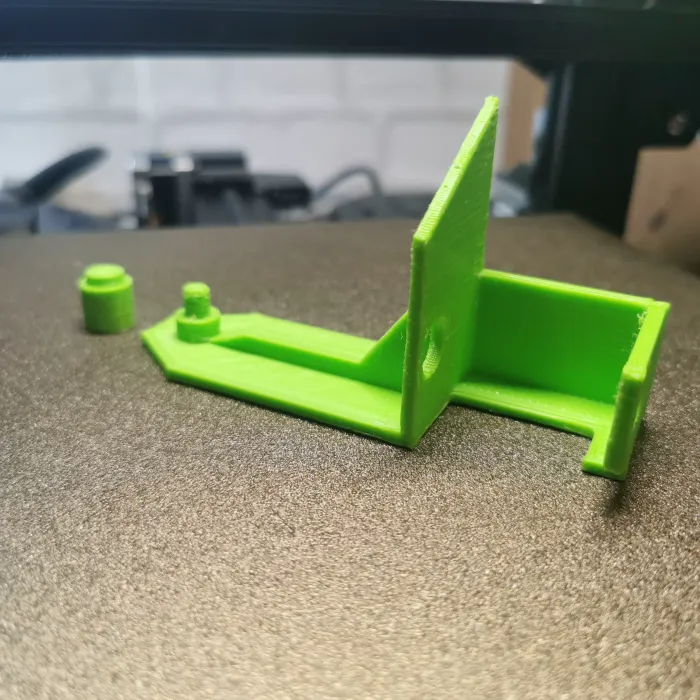

Pictured prints are in PETG with a 0.6mm nozzle at 0.32 layer height and 120mm/s.
100% infill
Use a brim
Add custom support to the small 90 degree overhang - 2 x 5mm towers dropped to buildplate, should do fine here.

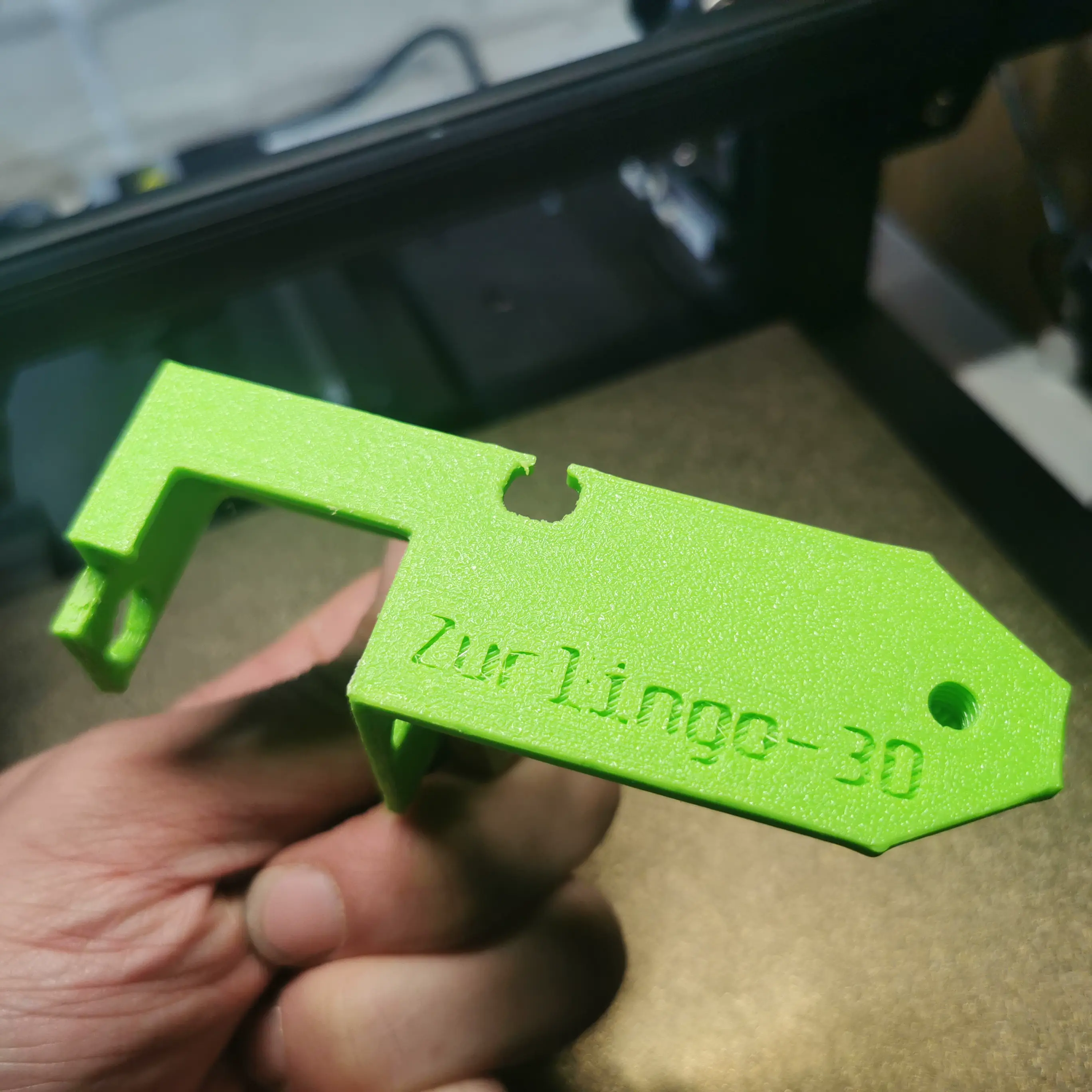

Orientate with the text facing down.
