Description

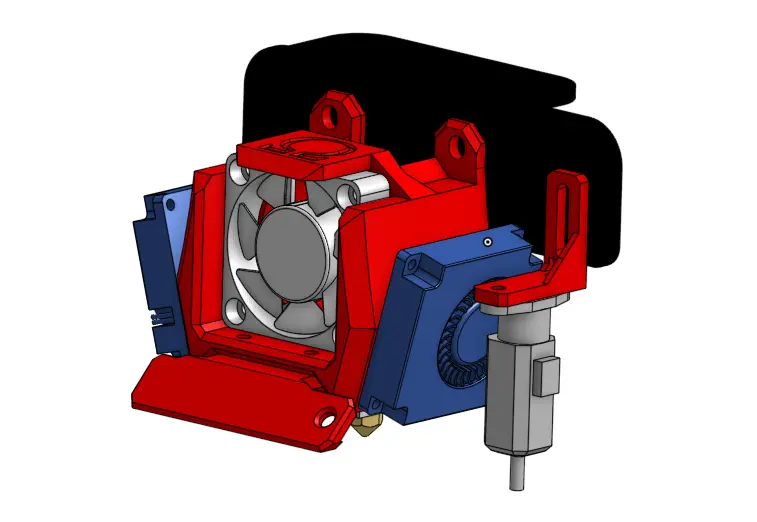

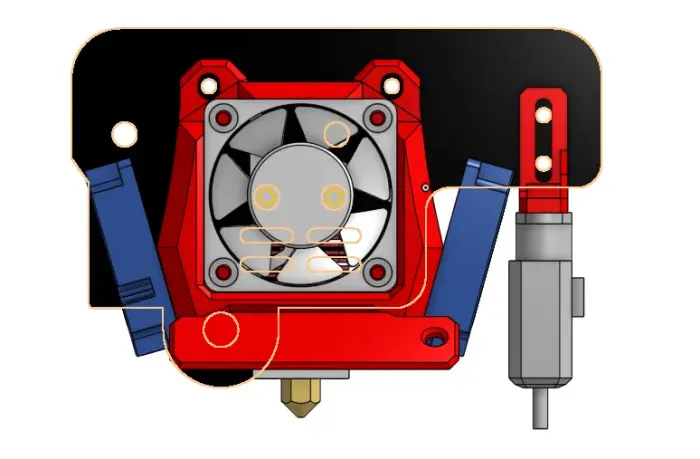

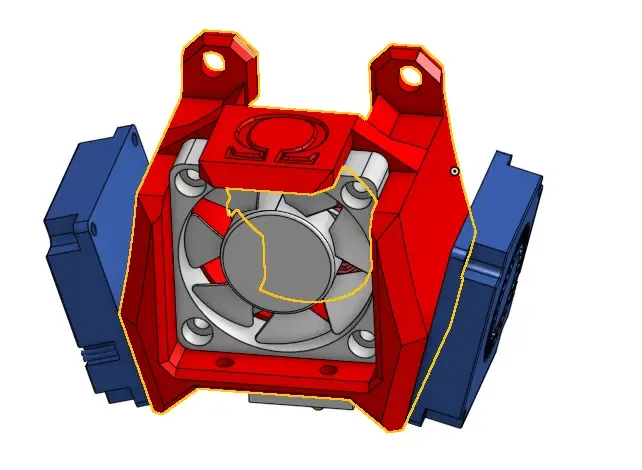

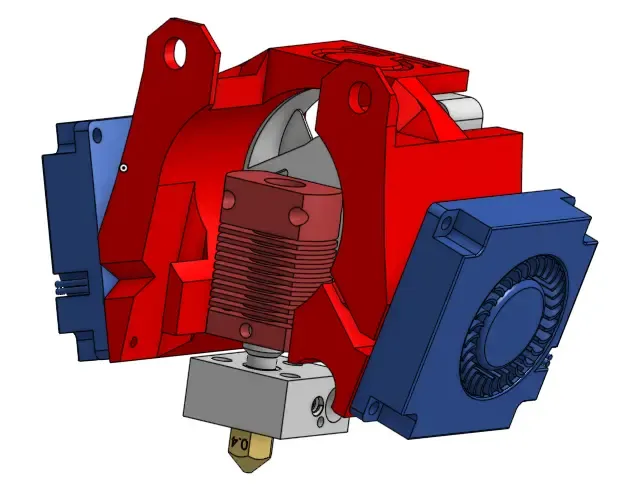

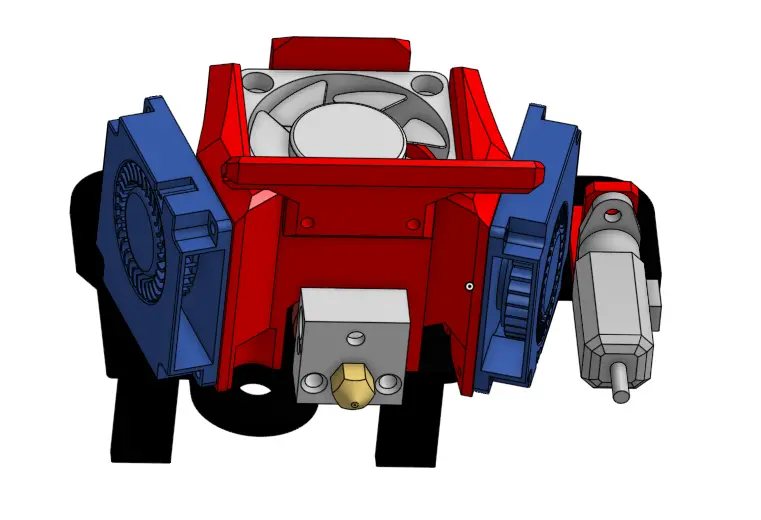

Designed for Ender 3 MAX with stock fans.
2pcs 4010 fans
1pc 40x40x10 or 40x40x20 fan

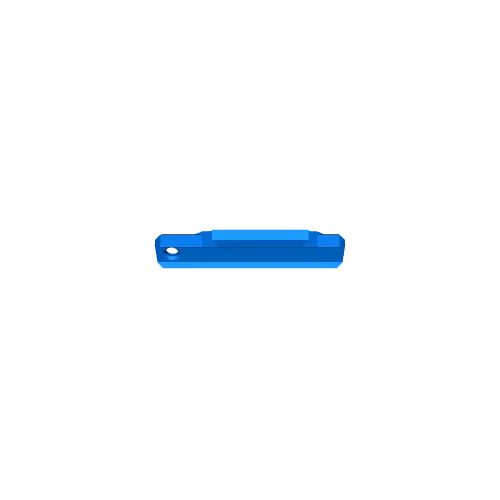

LED strip 50mm x 8mm
holes for 4010 are 1.7mm
holes for 40x40 are 2.5mm

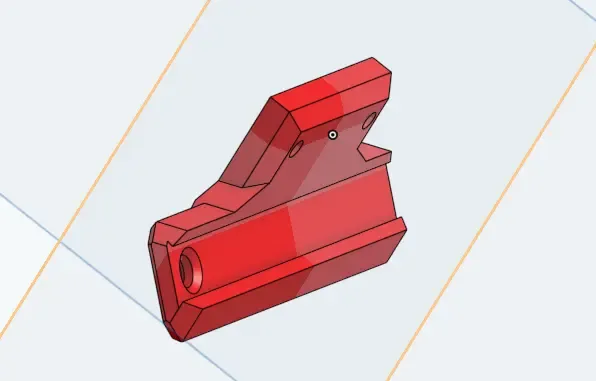

Downside are 2 holes 3.3mm with center distance 20mm for LED bar mount
LED bar holes for srews are 2.5mm

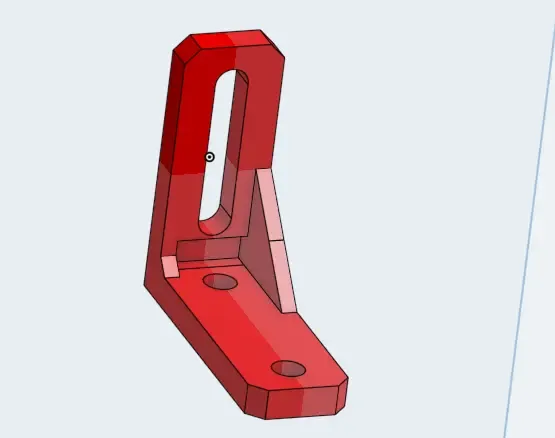

BLtouch holder screw holes are 3.3mm
Print Settings
Printer brand:
Creality
Printer:
Ender-3 Max
Rafts:
Doesn't Matter
Supports:
Yes
Resolution:
0.2
Infill:
25+
Filament brand:
generic
Filament material:
PETG, ABS, ASA
